JACKOBOARD® J-Drain Linear Drain Element - 54 mm - Shower Tray

Verified by manufacturer 6 months ago

6000200 - J-Drain linear drain, 600 mm

BEWI Construction (JACKOBOARD & ICF THERMOUR) Variant:

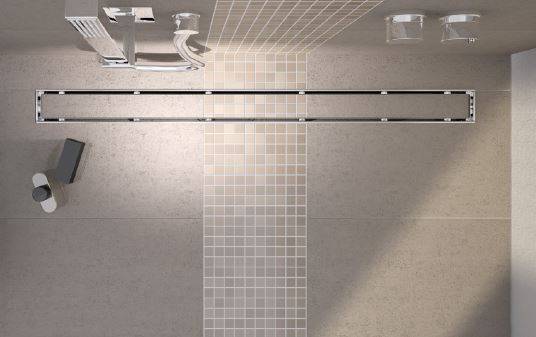

Linear shower drain.

Jump to:
BOS
+44 (0)120 4221089 Website

Application

The J-Drain is suitable for all floor substrates.

  • The J-Drain shower tray system must be fully supported.
  • The J-Drain sloping boards are bonded down with a C2 cement based flexible tile adhesive.
  • Sloping boards can be cut, repaired, and trimmed. Please contact our technical department for more information.
  • Suitable for wheelchair access when tiled.
  • To be installed with JACKOBOARD® tray sealing kit.

Description

The J-Drain shower tray system consists of three elements, the drain, the channel cover and the sloping board. This three-part system makes it a perfect solution for timber floor linear wet rooms.


The J-Drain element can be used in a three-part kit or as a built-in single drain for a screed floor. The J-Drain has a unique fully accessible trap that is built into the drain channel. This allows the overall drain height of only 54mm.


This product provides a great solution to reduced floor build up zones. The bonded fleece to the drain body provides the versatility to be used on both screed to fall and sloping board applications.


Features and benefits:

  • Choice of drain finishes.
  • Horizontal waste outlet.
  • Easy access to drains for cleaning.
  • Stainless steel and reversible tile-able drain cover as standard.
  • Available in several length options.
  • Drain colours available.
  • 25 year warranty on fleece bond to drain flange element.

General information

Color

Silver

Finish

Other

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Rectangle

Length

600 mm

700 mm

800 mm

900 mm

1000 mm

Show more

Width

86 mm

122 mm

Height

54 mm

Warranty description

25 year

Uniclass

Pr_70_55_96_83 Shower tray wastesPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

N13/43 Shower trays

Specification data - Shower tray wastes

Form

Rectangular.

Materials

-

Body

Acrylonitrile butadiene styrene (ABS).

Guidance for specification option:

54 mm.

Finish and colour

Self-finished.

Size

600 x 122 mm.

Waste

Built-in horizontal waste.

Thickness

54 mm.

Guidance for specification option:

ABS.

Integral accessories

JACKOBOARD® J-Drain grating.

JACKOBOARD® J-Drain sloping boards.

JACKOBOARD® 2K tray sealing kit.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Belgium

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

JACKOBOARD® J Drain Installation Instructions

JACKOBOARD® J Drain Installation Instructions

JACKOBOARD® 2K Sealing Kit For All JACKOBOARD® Shower Trays Technical Data Sheet

JACKOBOARD® 2K Sealing Kit For All JACKOBOARD® Shower Trays Technical Data Sheet

JACKOBOARD® J-Drain Shower Trays Technical Data Sheet

JACKOBOARD® J-Drain Shower Trays Technical Data Sheet
