Verified by manufacturer 4 months ago
4512256 - 900 x 900 mm

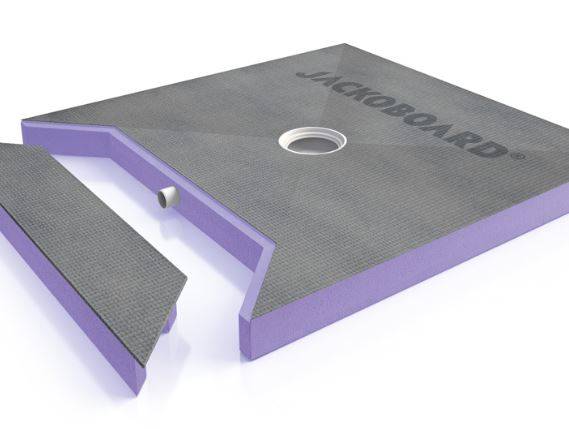

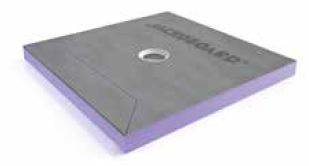

Shower element with integrated drainage system.
Suited as a barrier-free system solution for bath renovation in existing construction.
Level access system solution for fast renovation. Minimal installation height of just 65 mm and drainage system integrated within the shower element, JACKOBOARD® Aqua Reno shower elements are particularly suited for renovation work with a low floor installation height or where the existing floor cannot be disturbed. They have a waterproof core made of extruded polystyrene foam (XPS) and a special coating on both sides that permits direct tiling without the need for additional preparatory work. Integrated floor drain eliminates the need disturbing the floor – therefore saving time and money during installation.
Features and benefits:
Color | Purple Grey |
Finish | Coated Guidance for specification option: Reinforced cementitious coating. |
Material | High density extruded polystyrene (XPS) Stainless steel |
Shape | Square Rectangle |
Length | 900 mm 1400 mm 1800 mm Bespoke |
Width | Bespoke |
Height | 65 mm 75 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/375 Shower units N13/377 Wet room showers N13/40 Shower units N13/45 Wet room showers N13/43 Shower trays |
Form | Square. |
Materials | |
Body | Extruded polystyrene foam. |
Finish and colour | Reinforced cementitious coating. |
Size | 900 x 900 mm. |
Waste hole | Centre. |
Integral accessories | JACKOBOARD® 2K tray sealing kit. |
Centres | 450/450. Manufacturer guidanceDrain centre from the edge. |
Drain | Solid brushed, stainless-steel grate. |
Thickness | 65 mm. |
CompressiveStrength | 300 kPa. |
Fall | Integrated. |
Fire performance | Euroclass E. |
Thermal conductivity (maximum) | 0.034 W/(m.K). Manufacturer guidanceThermal conductivity (λD) according to EN 13164 (XPS core). |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
