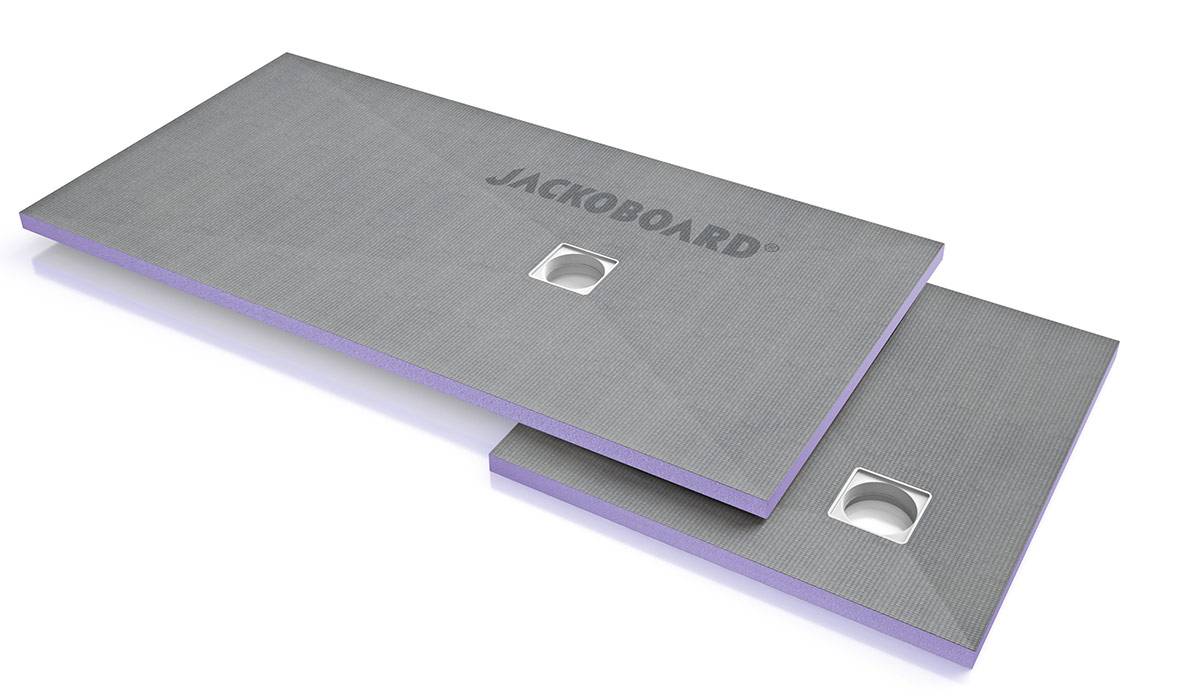

Pre-formed waterproof shower tray for timber floors with a offset drain.
JACKOBOARD® Aqua FLAT shower trays are ideally suited for timber floor types. The Aqua shower tray family consists of different thickness trays and sizes based on the application. Please contact our technical department for more information.
The JACKOBOARD® Aqua FLAT shower tray is manufactured in Germany from purple extruded polystyrene foam. The rigid foam is coated on both faces with a glass fibre reinforced mesh and cementitious coating to provide a suitable substrate for tiling.
The JACKOBOARD® Aqua FLAT shower tray comes with the falls already pre-formed into the tray. These falls are calculated to evacuate 0.9 L of water per second, which suits both of the JACKOBOARD® drain body options. The drain collar is bonded and sealed in the factory ensuring the secondary drainage system is secure and sealed. The pre-formed CNC machined falls in the trays provide a useful template for the tile cut lines, ensuring the water flow to the drain is optimal.
Features and benefits:
Color | Purple Grey |
Finish | Coated Guidance for specification option: Reinforced cementitious coating. |
Material | High density extruded polystyrene (XPS) Glass Fibre |
Shape | Rectangle Square |
Length | 1000 mm 1200 mm 1300 mm 1500 mm 1800 mm |
Width | 800 mm 900 mm 1000 mm Bespoke |
Height | 20 mm 25 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/43 Shower trays N13/40 Shower units N13/375 Shower units |
Form | Rectangular. |
Materials | |
Body | Extruded polystyrene foam. |
Finish and colour | Reinforced cementitious coating. |
Size | 1000 x 1000 mm. |
Waste hole | Offset. |
Integral accessories | Horizontal drain.Guidance for specification option: 4512007.
Vertical drain.Guidance for specification option: 4512008.
JACKOBOARD® 2K tray sealing kit. |
Thickness | 20 mm. |
Centres | 300/300. Manufacturer guidanceDrain centre from the edge. |
CompressiveStrength | To EN 826, >300 kPa. Manufacturer guidanceAt 10% compression. |
TensileStrength | >200 kPa. |
Fall | Integrated. |
Tile size | 50 x 50 x 7 mm. Guidance for specification option: Wheelchair accessible from tile size: 50 x 50 x 6.5 mm. For smaller tile sizes the joints must be grouted with epoxy resin grout. |
Fire performance | Euroclass E. Manufacturer guidanceFire behaviour. |
ThermalConductivity | To EN 13164, 0.034 W/(m·K). |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
