JACKOBOARD® Aqua & Aqua FLAT Vertical Drain Kit
Verified by manufacturer 5 months ago
Vertical drain system.
Application
For the fast and precision-fit installation of a drain system that is matched to all JACKOBOARD® Aqua & Aqua FLAT shower elements.
Description

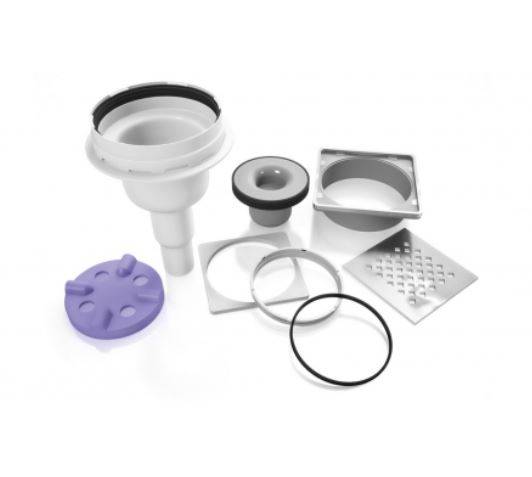

JACKOBOARD® Aqua drain systems are the matching accessory for JACKOBOARD® Aqua and Aqua Flat shower elements. Drain system includes a high quality solid brushed stainless steel grate with a high drainage rate of 0.9 L/s.
Features and benefits:
- High-quality design grates made of solid brushed stainless steel.
- Height-adjustable grate from 3 to 18 mm.
- Flow rate of 0.9 l/s.
- Drain height 50 mm.
- DN 50 drainage connection.
- Solvent weld adapter included
- Drainage connection made of ABS plastic.
General information
Color | White |
Finish | Brushed |
Material | Stainless steel Acrylonitrile butadiene styrene (ABS) |
Shape | Square |
Length | 135 mm |
Width | 135 mm |
Height | 9 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/43 Shower trays N13/40 Shower units N13/375 Shower units |
Specification data - Shower tray wastes
Form | Square. |
Materials | |
Body | Stainless steel. |
Finish and colour | Brushed. |
Size | 135 x 135 x 9 mm.Manufacturer guidanceGrate frame size. |
PipeConnection | DN 50 mm. |
Drainage capacity | 0.9 L/s. |
Water trap | 50 mm. Manufacturer guidanceHeight. |
Load class | K3. Manufacturer guidanceGrate load class. |
Grate | 120 x 120 x 4 mm. |
Tile thickness | 3—38 mm. |
Integral accessories | JACKOBOARD® Aqua shower trays. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
