Jabfill High Performance (HP)
Verified by manufacturer 1 day ago
Expanded polystyrene (EPS) full-fill cavity wall insulation.
Application
Suitable as a full-fill cavity insulation.
Description

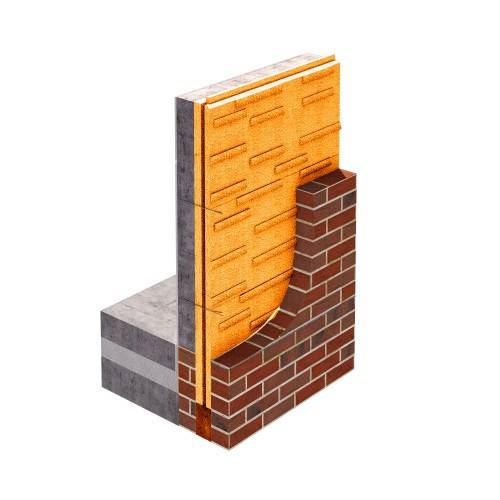

BEWI Jabfill HP Cavity Wall Insulation is designed to optimise the cavity space in a new build property and is supplied for 100 mm, 125 mm and 150 mm cavity widths.
Features and benefits:
- Flood-proof cavity wall insulation.
- Will insulate for the lifetime of the building.
- Prevent rainwater penetration.
- Lightweight and easy to handle.
- Tongue and grooved wall boards to prevent cold bridging.
- 100% recyclable.
- Achieves A+ in the BRE Green Guide to Specification.
General information
Color | Grey |
Material | Expanded polystyrene (EPS) |
Shape | Rectangle |
Length | 1200 mm |
Width | 450 mm |
Height | 100 mm 125 mm 150 mm |
Uniclass | |
CAWS | F30/150 Full fill cavity insulation F30/10 Full fill cavity insulation |
Specification data - Expanded polystyrene (EPS) boards
Standard | To BS EN 13163. |
Fire performance | To BS EN 13501-1, Euroclass E. |
Compressive strength (minimum) at 10% compression | 70 kPa. |
Thickness | 100 mm.125 mm.150 mm. |
Face size (nominal length x width) | 1200 x 450 mm. |
Sustainability data
Material | Expanded polystyrene (EPS) |
Recyclability | 100% recyclable. |
Literature
Jabfill High Performance (HP)
