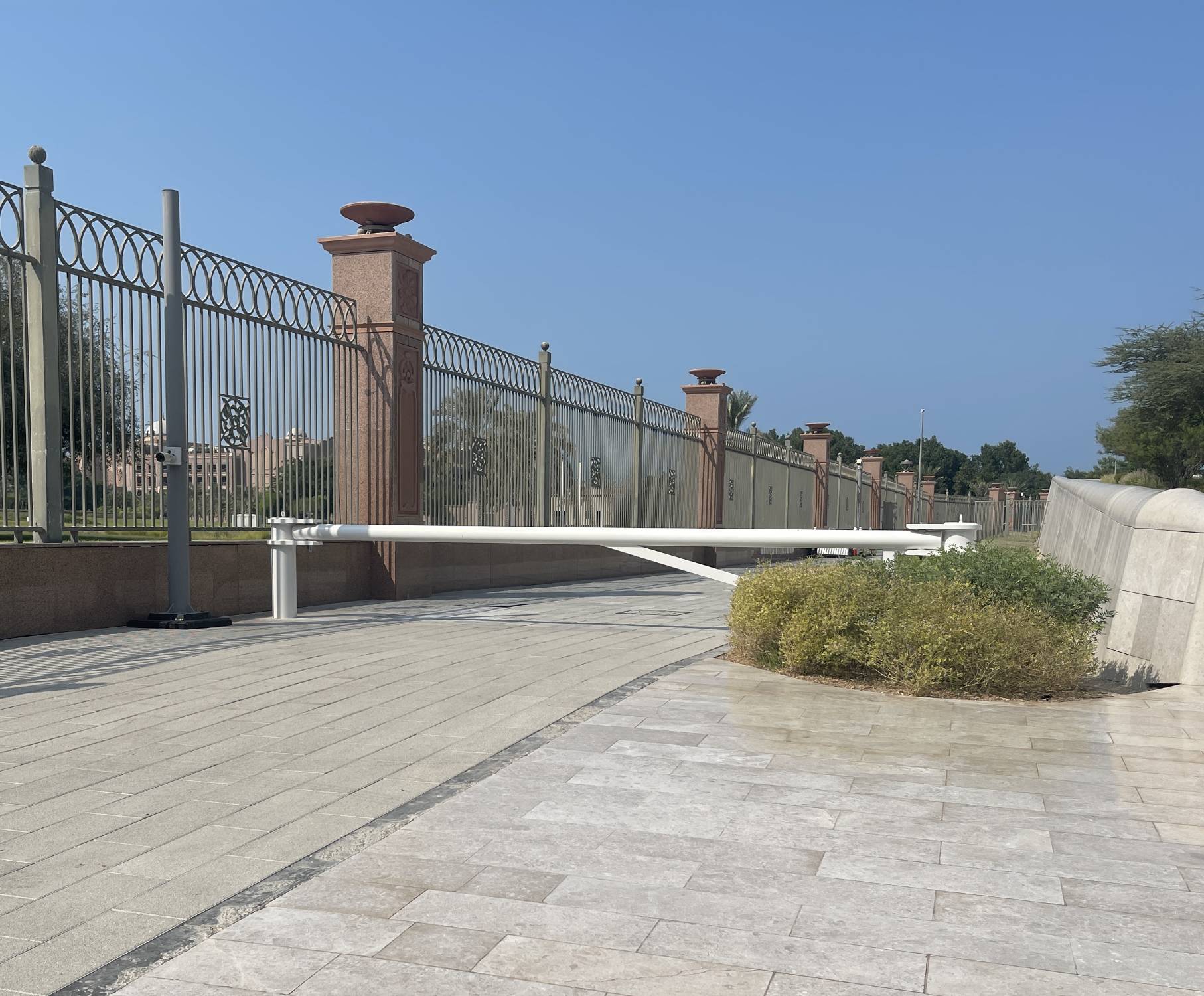

IWA 14 HVM Terra Ultimate 180° Swing Arm Barrier – 7.2 t at 50 mph - Anti Terrorist Manual Swing Arm Barrier
Verified by manufacturer 6 days ago
Secured By Design
Certificate type
A bi-directional, lightweight, manual swing barrier that has been impact tested to the international IWA14 specification, stopping 7.2 tonnes travelling at 80 kph (50 mph).
Application
Suitable for high-security remote sites with no power supply. Terra barriers have been proven to stop vehicles, providing hostile vehicle mitigation (HVM), impact-resistant barriers preventing vehicle as a weapon attack. IWA 14 Classification Code: V/7200[N2A]/80/90:4.7.
Description
The IWA 14 HVM Terra Ultimate 180° Swing Arm Barrier is available in lengths up to 6 m, with right- or left-hand hinging; therefore, the impact beam can be opened in either direction depending upon site requirements and swings 180°.
Features and benefits:
- All barriers made to order.
- Compliant with Secured by Design scheme.
- Listed on the CPNI List of IWA 14 and PAS 68 products.
General information
Color | Manufacturer guidanceAvailable BS and RAL colours. |
Finish | Painted Guidance for specification option: Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel |
Shape | Manufacturer guidanceSwing Arm Barrier |
Length | Bespoke Manufacturer guidanceAvailable in lengths up to 6000 mm. |
Width | Bespoke Manufacturer guidancebespoke up to 8000mm |
Height | 1150 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q41/190 Vehicle access point barriers |
Product range |
Specification data - Rising arm vehicular barriers
Standard | To IWA14-1 and IWA14-2. |
Method of operation | Manual. |
Span | 8000 mm (maximum). |
Posts | Not required.Latch post.Guidance for specification option: Secures the crash beam in the open position. |
Arms | |
Type | Swing arm. |
Material | Steel. |
Finish as delivered | |
Worked finish | Shot blasted. |
Applied finish | Polyurethane painted.Guidance for specification option: Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Manufacturer guidanceInsert RAL requirement. |
Accessories | None.Anti-tamper locks.Warning sign. |
Height | 1150 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
Third party certifications
Secured By Design
Secured by Design accredited
Literature
IWA 14 & PAS 68 HVM Terra Barriers

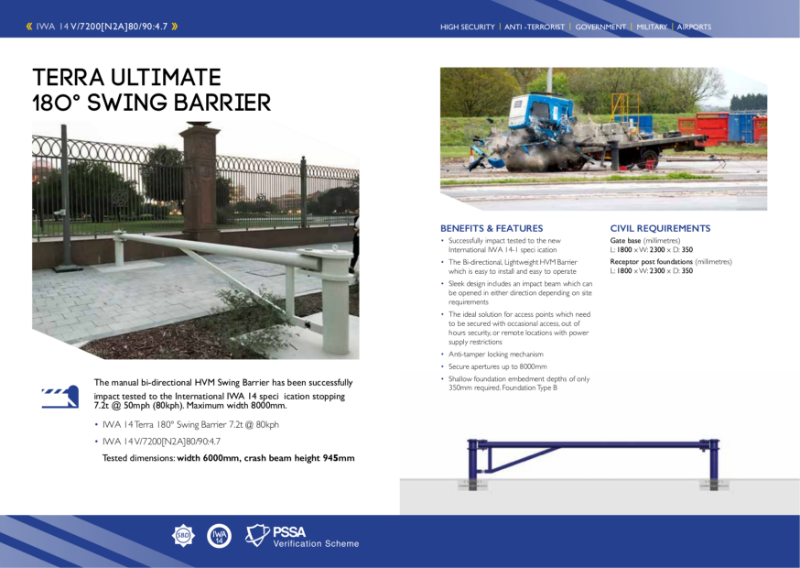

IWA14 Terra Ultimate 180 Swing Arm Barrier
