iSystem - Smart Concealed with Ceiling Fixed Drencher

Verified by manufacturer 14 days ago

ISD.A1.BFC.21

Aqualisa Products Ltd Variant:

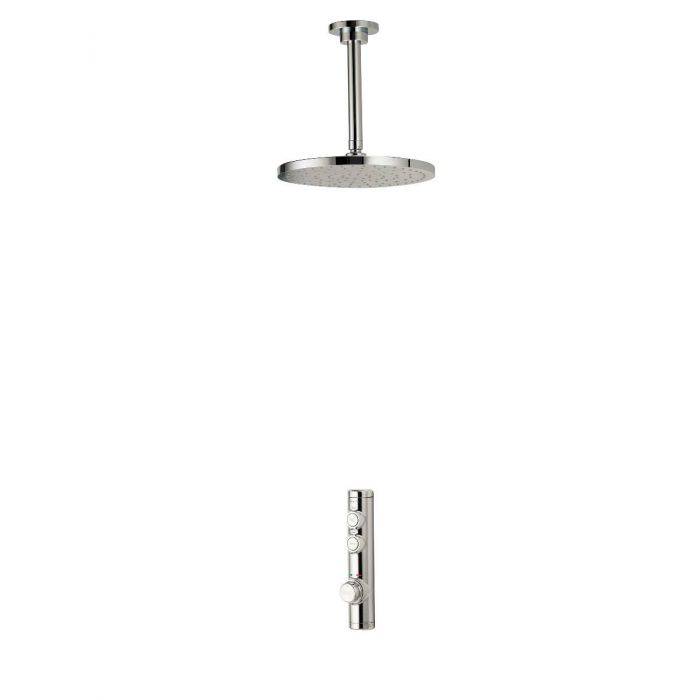

Built-in single outlet digital shower with ceiling fixed drencher head.

Jump to:
BIM object icon
+44 (0)1959 560000 Website

Description

Contemporary, space saving digital shower with intuitive controls for personalised shower settings.


Features and benefits:

  • 230 mm ceiling fixed head.
  • Wifi, mobile app, Google Home and Amazon Alexa enabled to allow you to control your shower remotely.
  • Multiple showers can be controlled from one app.
  • Easy glide temperature control.
  • One touch, push button start/ stop.
  • LED display indicates when chosen temperature has been reached.
  • Optional remote control.

General information

Color

Silver

Finish

Chrome

Gloss

Material

Brass

Plastic

WarrantyDescription

Five year

Size

700 x 230 x 44 mm

Rail x head x controller.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/40 Shower units

N13/375 Shower units

Product range

Smart Digital Showers

Specification data - Shower fittings package

Form

Smart single outlet shower.

Materials

-

Body

Brass, metal and plastic.

Finish and colour

Chrome plated.

Flow rate (maximum)

12—20 L/min. at 3 bar.

Water supply temperature (maximum)

65°C.

Integral accessories

Pinch grip slider.

Pressure

0.1—7 bar.

Shower head

230 mm.

Ceiling fixed head.

Controller

237 x 44 x 30 mm.

InletConnectionSize

Aqualisa SmartValve™ inlet fitting connections.

15 mm push fit.

OutletConnectionSize

Aqualisa SmartValve™ outlet fitting connection.

15 mm push fit.

System

HP/Combi pumps.

Environmental information

Country of material origin

Malaysia

Also United Kingdom.

Country of product manufacture

Malaysia

Also United Kingdom.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
