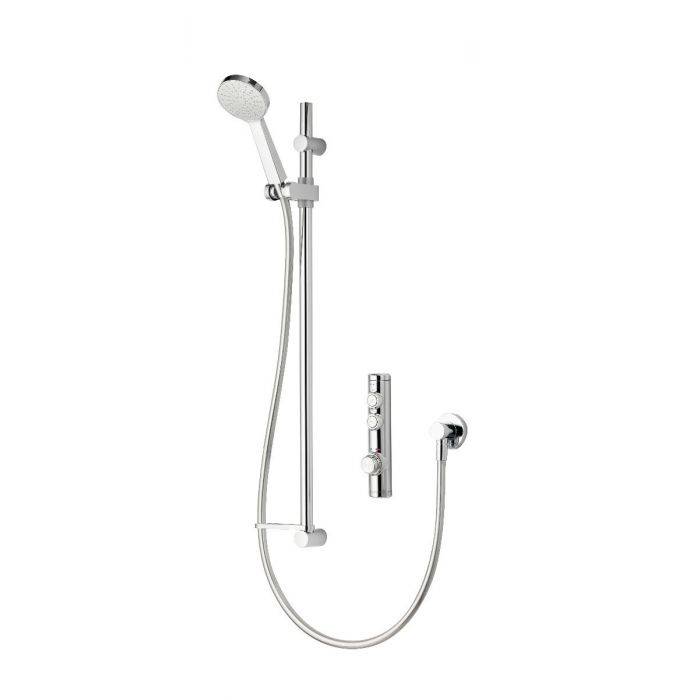

iSystem - Smart Concealed with Adjustable Head

Verified by manufacturer 14 days ago

ISD.A1.BV.21

Aqualisa Products Ltd Variant:

Built-in single outlet digital shower with wall outlet for adjustable handset

Jump to:
BIM object icon
+44 (0)1959 560000 Website

Description

Contemporary, space saving digital shower with intuitive controls for personalised shower settings.


Features and benefits:

  • 100 mm one spray function adjustable head.
  • Wifi, mobile app, Google Home and Amazon Alexa enabled to allow you to control your shower remotely.
  • Multiple showers can be controlled from one app.
  • Easy glide temperature control.
  • One touch, push button start/ stop.
  • LED display indicates when chosen temperature has been reached.
  • Optional remote control.

General information

Color

Silver

Chrome.

Finish

Chrome

Gloss

Material

Brass

Metal

Plastic

WarrantyDescription

Five year

Size

700 x 100 x 44 mm

Rail x head x controller.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/40 Shower units

N13/375 Shower units

Product range

Smart Digital Showers

Specification data - Shower fittings package

Form

Smart single outlet concealed shower.

Materials

-

Body

Brass, metal and plastic.

Finish and colour

Chrome plated.

Flow rate (maximum)

12—20 L/min. at 3 bar.

Water supply temperature (maximum)

65°C.

Integral accessories

Pinch grip slider.

Pressure

0.1—7 bar.

HoseLength

1500 mm.

Shower head

100 mm.

Controller

237 x 44 x 30 mm

InletConnectionSize

15 mm push fit.

OutletConnectionSize

15 mm push fit.

System

HP/Combi pumps.

Environmental information

Country of material origin

Malaysia

Also United Kingdom.

Country of product manufacture

Malaysia

Also United Kingdom.
