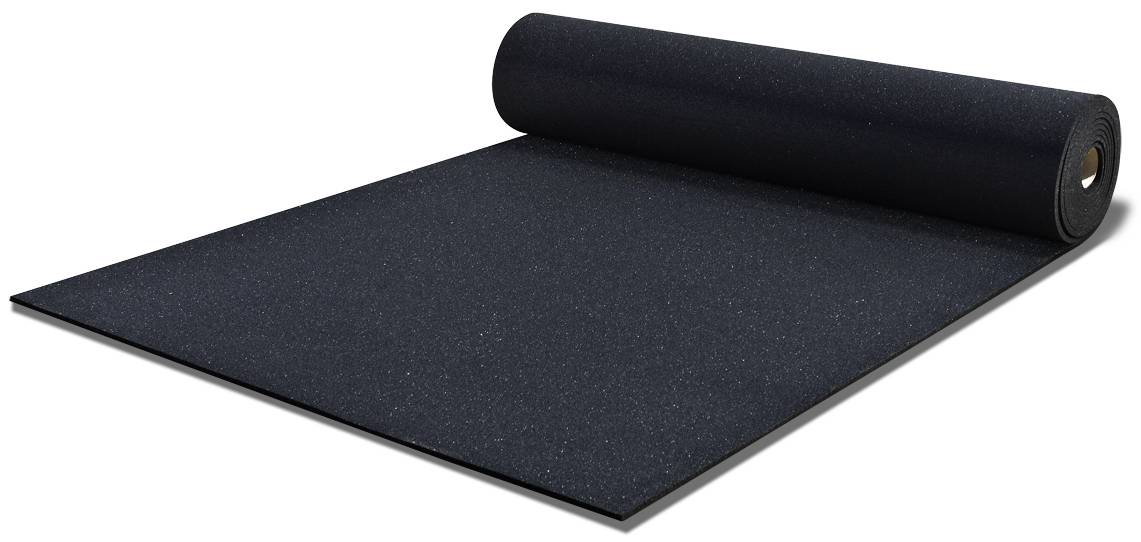

Isorubber Base - Acoustic Isolation Mat
Verified by manufacturer 3 months ago
A dense, rubber composite, impact sound isolator or cushioning underlay for floor systems.
Application

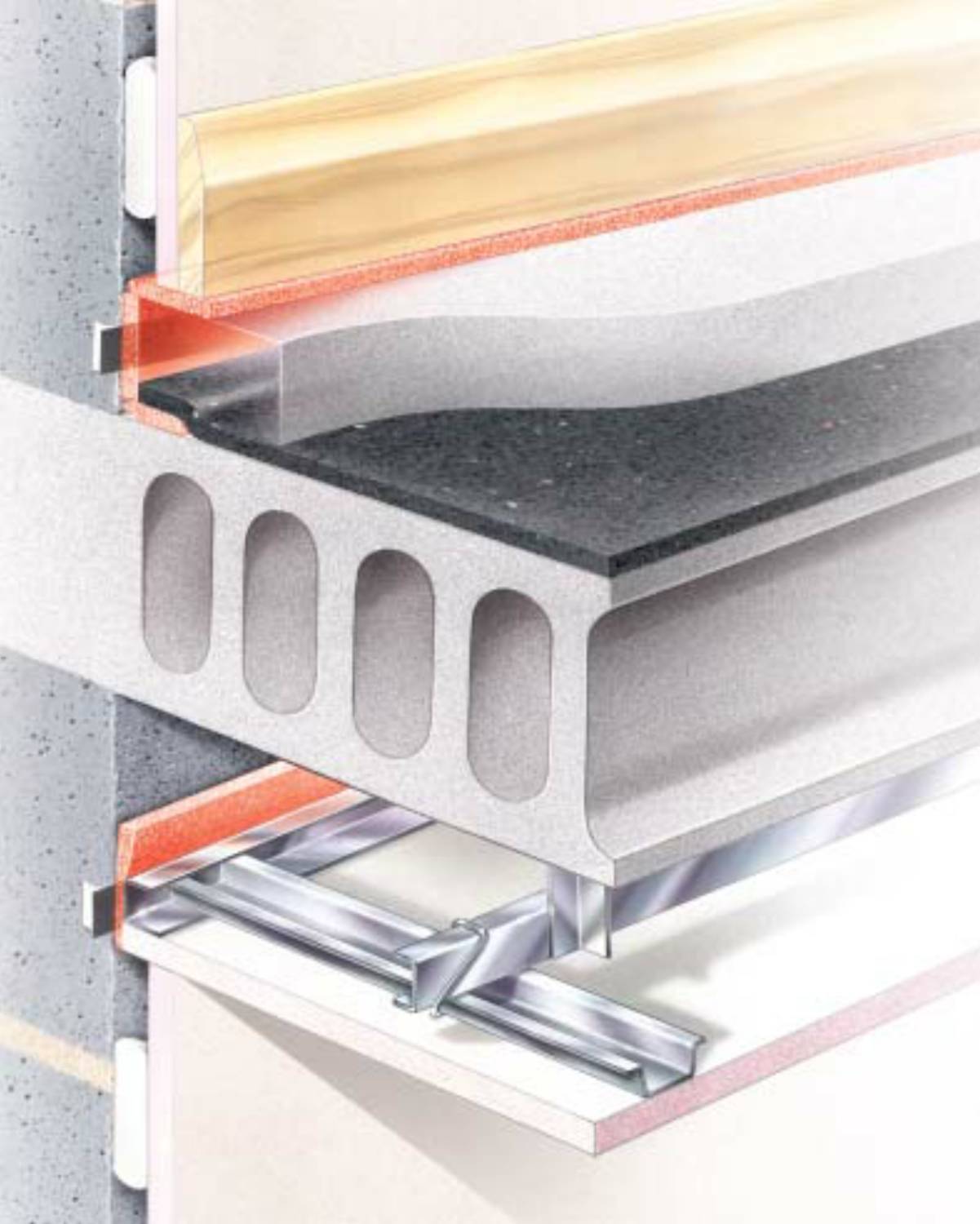

- For use in concrete and timber floor systems.
- Approved for use beneath screed on concrete floors.
- Suitable for textile floor finishes, timber overlays and laminate flooring.
- Approved for Robust Detail E-FC-4, Robust Detail E-FC-14, and Robust Detail E-FC-18.
Description
Isorubber Base is an acoustic isolation and vibration reduction mat. It is primarily used in concrete and timber floor systems to achieve Approved Document Part E compliance, but can also be used in general soundproofing and noise reduction applications. It is also the main acoustic component of the Robust Detail E-FC-4 and E-FC-14 constructions.
Features and benefits:
- Continues to perform for the life of the building.
- Suitable for use with underfloor heating.
- Simple installation.
- Over 90% recycled content.
- Global Warming Potential of Zero and an Ozone Depletion Potential of Zero.
General information
Color | Black |
Finish | Smooth |
Material | Rubber |
Shape | Other |
Length | 10000 mm |
Width | 1000 mm |
Height | 6 mm |
Uniclass | |
CAWS | M10/40 Floating construction M10/295 Floating construction (thin sheet impact sound insulation) |
Specification data - Resilient layer insulation
Material | Recycled rubber mat. |
Density | 635 kg/m³. |
Thickness | 6 mm. |
Sound insulation rating | Impact ΔLw: 22 dB (EN ISO 140-8 and EN ISO 717-2). |
Recycled content | 100%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | 100% |
Literature
IsoRubber Base Technical Data Sheet
IsoRubber Base SDS
Isosonic Timberfloor Brochure
Robust Detail E-FC-4 Brochure
Robust Detail E-FC-14 Brochure
Robust Detail E-FC-18 Brochure
