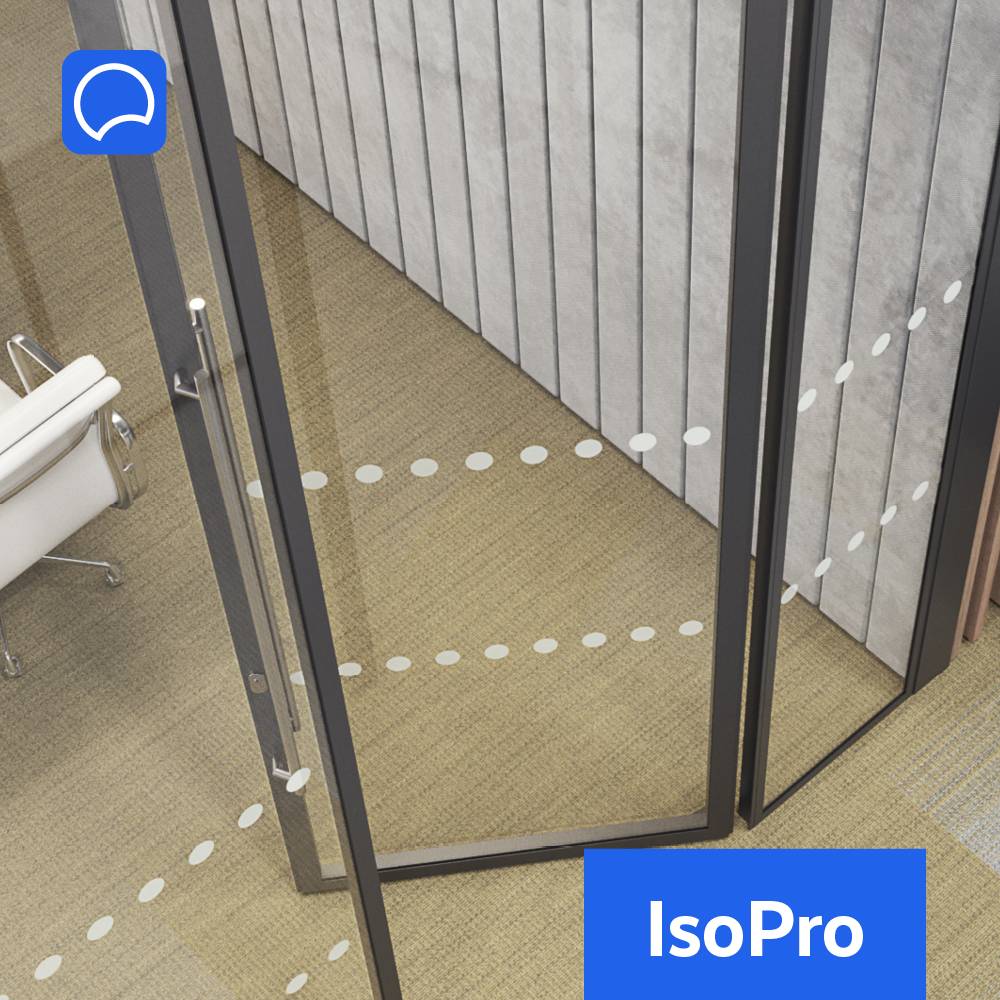

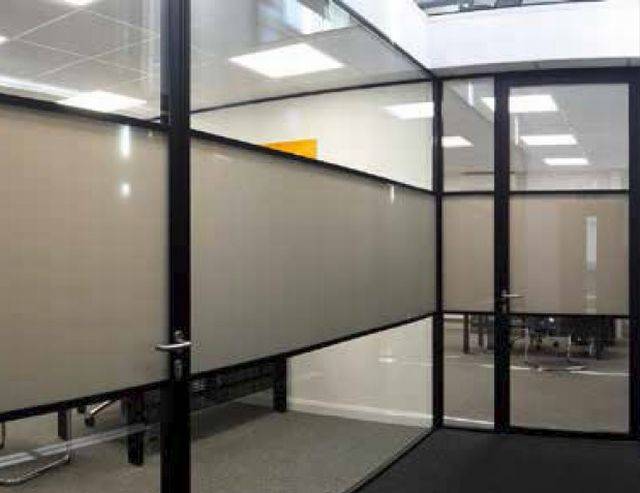

IsoPro Single Central Glazed Door

Verified by manufacturer 5 months ago

 Planet Third party certifications:
  • EPD

    EPD

    Certificate type

54 mm-framed, flush, rebated glazed door, offering uncompromising design and performance.

Jump to:
+44 (0)1444 247933 www.planetpartitioning.co.uk

Application

All sectors: Commercial: Education; Healthcare; MOD; Airport & rail; Industrial; Hospitality; Residential & public.

Consult manufacturer for further details.

Description

54 mm-framed, flush, rebated glazed door, offering uncompromising design and performance.


Features and benefits:

  • Complements to Planet’s partitioning range for seamless integration. 54 mm-thick frame offers elegant lines and outstanding performance.
  • Also available in single-glazed offset or double-glazed offset variations (specified separately).


Please note that acoustic, fire rated and structural certification and support for Planet products and systems is available on a project-specific basis. Please contact the specification team directly for further information.

General information

Color

Other

Polyester powder-coated or anodized.


Silver

Polished and linished.

Finish

Polished

Anodized

Etched and anodized.

Powder-coated

Material

Aluminium

6063 T6.


Glass

Shape

To suit project requirements; consult manufacturer for further details.

-

Size

To suit project requirements; consult manufacturer for further details.

-

WarrantyDescription

Dealt with on a project specific basis as part of the O&M process; consult manufacturer for details.


-

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Pivoting Doors / IsoPro

Specification data - Aluminium doorsets

Third party accreditation

ISO 9001-UKAS (Quality); ISO 14001-UKAS (Environmental); Constructionline-Gold; Acclaim (SIPP); Achilles (Building confidence, SIPP); EPD - material accreditation & compliance; FIS Member; Considerate Construction; FORS Bronze; Build Profile.

EPD - material accreditation & compliance: Consult manufacturer for details (glass, PPC, aluminium, timber, ironmongery, waste, adhesive and more).

Configuration

Single action 54 mm-thick single centre glazed, single leaf (rebated).

Single action 54 mm-thick single centre glazed, unequal leaf doors (rebated).

Single action 54 mm-thick single centre glazed, double leaf (non-rebated).

Single action 54 mm-thick single centre glazed, double leaf (rebated).

Doorset size

Door leaf width up to 1200 mm, structural opening height up to 3000 mm. Consult manufacturer for details.


-

Performance

-

Acoustic performance

36 dB Rw.

Single leaf only with drop down seal.

Not acoustically tested.

Unequal leaves, rebated with drop down seal.

Frame

-

Material

Aluminium.

IsoPro 54 mm rebated door leaves can be used in a stand-alone format or alongside screens; see p20, p54 , P100, LOFT20, LOFT54, LOFT100, M100-SB and M100-DB system for Planet aluminium door frames.

Perimeter seals or inserts

Double batwing seal to door frame.

Finish

-

Coating

Polyester powder-coated.

Etched and anodized.

Not required.

Colour

Insert requirements based on finish specified:

  • Polyester powder-coated: Any RAL; select gloss level.
  • Polished/ linished: n/a.
  • Etched and anodized: Insert colour reference.


-

Installation fasteners

To manufacturer's specification, type, length and frequency to suit substrates.

Frame accessories

None.

Glazed fanlight.

To non-full-height doors.


Tech panel.

To incorporate room booking systems, access control and other electronics.


Door leaf

-

Thickness

54 mm.

Core

Single centre glazed configuration.

Material

Aluminium (6063 T6) / glass.

Glazing

-

Type

The acoustic rating determines the glass configuration; consult manufacturer for details.

-

Manifestation

To architects choice and in accordance with the requirements of Approved Document K.

Allowance of 2 nr rows 50 mm dots or square (minimum) Opal Frost.

Insert requirements.


Artwork and custom manifestation to client design.

Insert requirements.


Beading

-

Type

One-piece extruded profile.

Material

Aluminium (6063 T6).

Finish

-

Coating

Polyester powder-coated.

Polished and chemically brightened.

Linished and chemically brightened.

Etched and anodized.

To match frame.

External colour

To match frame.

RAL/ gloss level.

Anodized colour reference.

Internal colour

As External.

Door accessories

None.

Bonded signage.

Hardware

Insert requirements:


Handles:

  • Cranked “D” pull handles, 19 mm diameter x 300 mm long (use hold-closed device).
  • Cranked “D” pull handles, 19 mm diameter x 650 mm long (use hold-closed device).
  • Cranked “D” pull handles, 25 mm diameter x 900 mm long (use hold-closed device).
  • Cranked “D” pull handles, 25 mm diameter x 1200 mm long (use hold-closed device).
  • 30° cranked Guardsman pull handles (use hold-closed device)
  • 30° cranked Guardsman pull handles, 25 mm diameter x 400 mm long (300 mm centres; use hold-closed device).
  • 30° cranked Guardsman pull handles, 25 mm diameter x 700 mm long (600 mm centres; use hold-closed device).
  • 30° cranked Guardsman pull handles, 25 mm diameter x 1000 mm long (900 mm centres; use hold-closed device).
  • 30° cranked Guardsman pull handles, 25 mm diameter x 1300 mm long (1200 mm centres; use hold-closed device).
  • Extruded PPC aluminium pad handle 75 mm wide x 45 mm deep x length to suit (bonded to stile or glazing).
  • D_Line 19 mm diameter lever handle and latch – refer to manufacturer for options.
  • 50 mm diameter offset pad handle (non-activating for use with electronic strikeplate).


Locks:

  • D_Line mortice sash lock with euro cylinder access control.
  • Assa Abloy HES-5000 electronic strikeplate (in door frame, mains operated, use with latched doors only, fail-safe / fail-secure).
  • Assa Abloy C-100 electronic euro profile cylinder (in door leaf, battery powered, replaces manual cylinder).
  • Salto XS4 narrow electronic handle (on door leaf, battery powered).
  • Yale Connexis L1 electronic door handle (on door leaf, battery powered).
  • Simons Voss-3062 Mifare Pure (MP) electronic handle (on door leaf, battery powered).
  • SA-66 Shearlock (in door frame head, mains powered, fail-safe / fail-secure).
  • Mini mag-lock (face mounted, mains powered, fail-safe / fail-secure).


Closing operation:

  • Free swingpivot (H044-045, use with latch or pull handle with hold-closed device).
  • Dorma ITS-96 concealed overhead closer.
  • Dorma TS-93 (EN2-5) face fixed overhead closer (not available with A104 doorframe).
  • Recessed floor spring (model dependent upon weight of door)-non hold-open.
  • Recessed floor spring (model dependent upon weight of door)-hold-open.

-

Accessories

For Glazed fanlights, see Frame accessories.

None.

Bonded LOFT bars.

Product Reference

IsoPro Single Central Glazed Door

Environmental information

Contains Red List materials

No

No substance on the “Candidate List of Substances of Very High Concern for authorisation” derived under REACH is present either above the limits for registration with the European Chemicals Agency or in excess of 1 weight–% of the product.

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Aluminium and glass.

Recycled content

17–28% for glass.

70% for aluminium.

-

Digital objects

Platform Compatible Version Certified to
Revit
 -

1

1

Download now from NBS National BIM Library

Literature

IsoPro - Images & Information

IsoPro - Images & Information

Planet Partitioning Product Guide

Planet Partitioning Product Guide

Third party certifications

EPD

EPD

Planet IsoPro Door System EPD
