Isolayte - Resilient Layer Insulation
Verified by manufacturer 1 month ago
Isolayte OS
Isolayte OS
Alcumus SafeContractor
Certificate type
Fine granulate of recycled rubber with cork and PU elastomer bonding agent.
Application
- Isolayte OS acoustic matting is a resilient layer suitable for use under most floor finishes. It has been developed for use in both commercial and residential buildings, such as apartments, hotels, hospitals, schools and universities.
- Suitable for ceramic tiles, sheet vinyl, stone floors, laminate flooring, wood floors, parquet flooring, carpet, Flotex, marble tiles, porcelain tiles.
- Isolayte US: Suitable for under screed applications in residential, office and commercial buildings. Designed to isolate cementitious screeds to reduce the transfer of impact noise.
Description
Isolayte OS:
Fine granulate of recycled rubber with cork and PU elastomer bonding agent.
The product combines minimum build height with permanent resilience. Isolayte OS is manufactured from rubber and cork which is mixed with polymer binder to form a purpose made resilient matting. Isolayte OS has exceptionally good insulating qualities.
Features and benefits:
- Easy to install.
- Remains continually elastic.
- Fully recycled.
- Minimum construction height.
- Suitable to be laid over both concrete and screed floors.
- Suitable for refurbishment/ new build.
- Can be used with under floor heating.
- Excellent thermal properties.
- Excellent footfall noise reduction.
Isolayte US:
Isolayte US is a black, soft resilient layer of rubber fibres bound using polyurethane. It retains a high resistance to compressive loads despite a high degree of elasticity.
Features and benefits:
- Suitable for under screed applications in residential, office and commercial buildings.
- High compression strength with long-term stability. The product retains it characteristics under high load
- Excellent impact and airborne noise reduction.
- Easy and cost-effective installation.
- High elasticity and protects expansion joints.
- Mildew and Moisture resistant.
- Zero Ozone Depletion Potential (ODP) and zero global warming potential (GWP).
- Suitable for underfloor heating.
- Constant material thickness and minimal creep even under heavy load.
General information
Color | Brown Black |
Finish | Other |
Material | Cork Rubber |
Shape | Rectangle |
Length | 20000 mm |
Width | 1000 mm |
Height | 3 mm 5 mm |
Uniclass | |
CAWS | M10/40 Floating construction M10/295 Floating construction (thin sheet impact sound insulation) K11/275 Acoustic separating floor system K11/295 Floating floor system K21/145 Composite laminate flooring K21/115 Wood laminate flooring K21/111 Wood floating floor K21/146 Laminate flooring M50/130 Carpet tiling M50/150 Sheeting M50/170 Carpeting M50/110 Resilient floor tiling K21/20 Composite laminated flooring K21/10 Wood laminate flooring M50/10 Resilient floor tiling M50/15 Carpet tiling M50/25 Carpeting M50/20 Sheeting M42/120 Mosaic parquet panel flooring |
Specification data - Resilient layer insulation
Material | Recycled rubber and cork granulate bonded with a cold-cure PUR bonding agent. |
Density | 700 kg/m³. |
Thickness | 3 mm.5 mm. |
Fire performance | Class E. |
Sound insulation rating | 21 dB at 5 mm under standard laminate flooring. |
CompressiveStrength | 5 mm – 0.48 Mpa. (E-Modulus) – 12.2 MPa. |
TensileStrength | 5 mm – 0.85 MPa (average). |
Thermal Conductivity: | 0.12 W/mK. |
Elongation at break | 5 mm – 41% (average). |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cork Rubber |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature

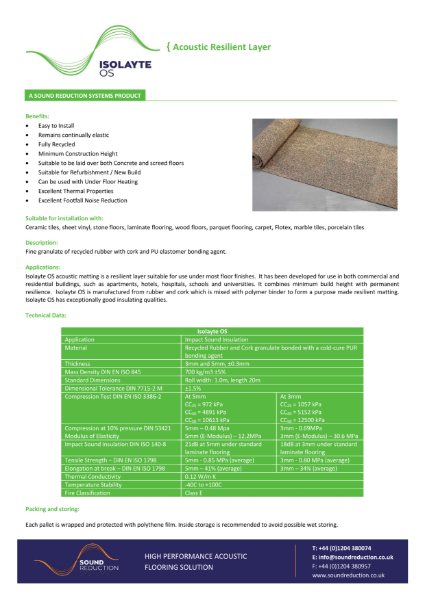

SRS Isolayte OS Datasheet

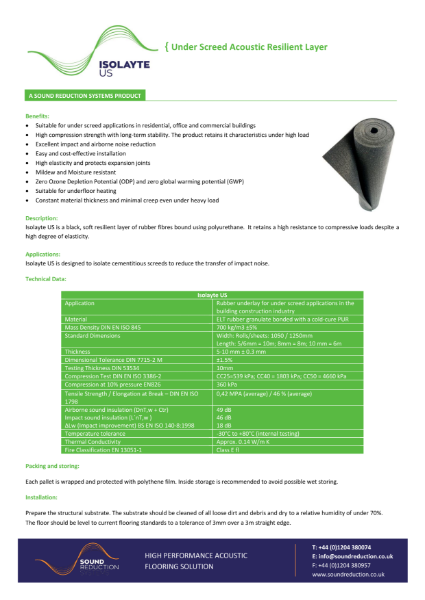

SRS Isolayte US Datasheet
Institute of Acoustic Sponsor Certificate
Richard Sherwood MIOA Certificate
