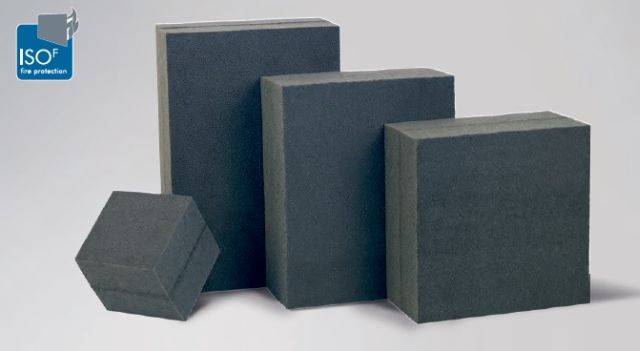

ISO-FLAME BRICK S 90
Verified by manufacturer 5 months ago
Cable and pipe fire stop.
Application
Single cables, cable bundles and pipes (service fire-stops).
Description
A fire resistant impregnated PUR high resilient foam for fire-protection of single cables, cable bundles and pipes (service fire-stops). It is used in rectangular and irregular fire wall and ceiling openings in accordance to DIN 4102 for the F-Classes S 30, S 60 and S 90. Its maximum fire resistance durability averages at 90 minutes.
Features and benefits:
- Quick and clean application without special tools (very economical).
- No preparation of the wall or ceiling opening necessary.
- Easy fitting of cables.
- Totally free from dust and fibres.
- Flexible application (temporary and permanent cable insulation).
- Toxic fume blocker.
- No cracking due to permanent elasticity with high flexibility.
- Free from halogens and solvents.
Minimum opening thickness:
- Walls: 100 mm.
- Ceilings: 150 mm.
General information
Color | Grey Guidance for specification option: Anthracite. |
Material | Polyurethane Guidance for specification option: PUR high resilient foam. |
Size | 160 x 160 mm 475 x 160 mm 475 x 475 mm |
Uniclass | |
CAWS | P12/360 Mineral wool rigid batts P12/40 Mineral wool rigid batts |
Product range |
Specification data - Polyurethane (PUR) foam boards
Fire performance | 90 minutes.Guidance for specification option: Maximum fire resistance durability average. |
Thickness | 90 mm. |
Face size (length x width) | 160 x 160 mm.475 x 160 mm.475 x 475 mm. |
