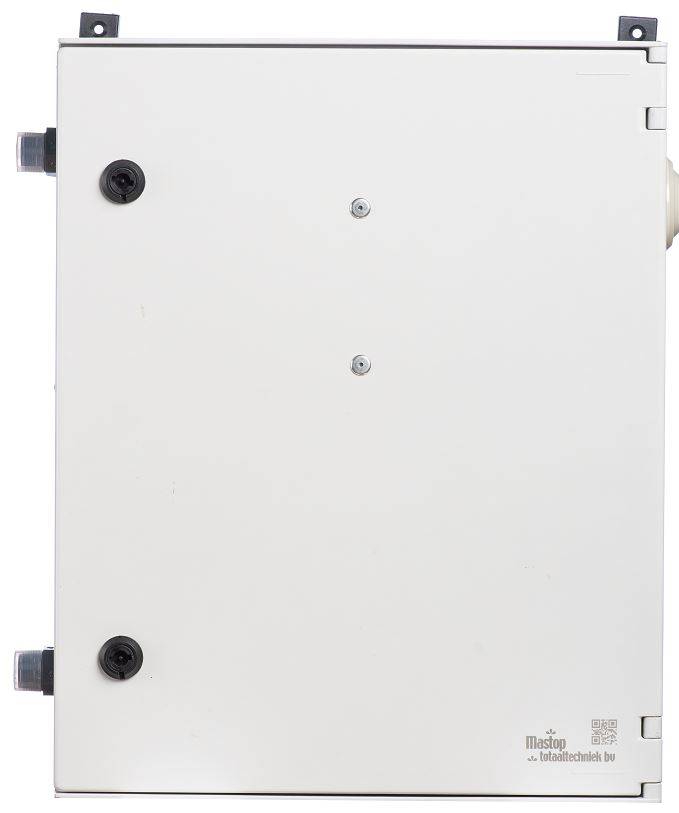

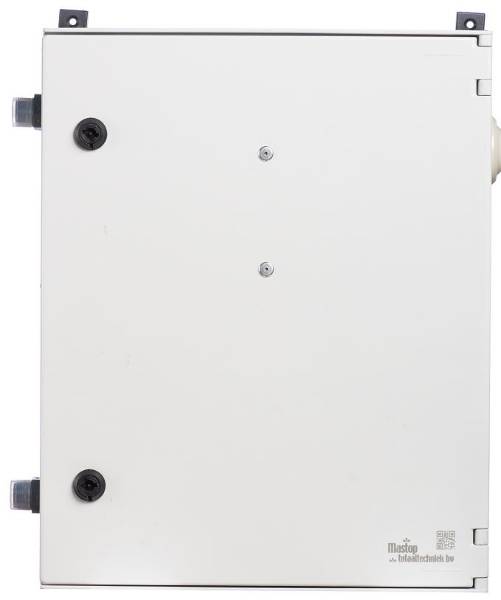

Irrigation unit GN81

Application

Irrigation unit for LivePanel.

Description

LivePanel irrigation unit.


An irrigation system is available specifically for LivePanel. The irrigation system is easy to install and requires a 220 V power plug, a water connection and there needs to be a drainage point underneath the wall.


Level sensors are installed in the LivePanel wall and are wired to the controller of the irrigation system. After programming the controller, the irrigation system will automatically detect if watering is necessary and this way no water is wasted.


Features and benefits:

  • Alarm system for low water or power failure.
  • Frost protection for outdoor walls.
  • Full control web based irrigation system, including monitoring and support.
  • Freak tank.
  • Backflow prevention.
  • Pressure pump.
  • Pressure reducer.



Dosage fertilizer/Ciro CleanDrip:

  • Jerrycan 2.0 L.
  • Dosage 2 pulses each liter (= approx 0.2 g/L).
  • 700 g Peters 15+11+29.
  • 145 ml Ciro Cleandrip.
  • Dosage 4 pulses each liter(= approx 0.4 g/L).
  • Dosage 1 pulse per liter (= approx 0.1 g/L).
  • 280 g Peters 15+11+29.
  • 290 ml Ciro Cleandrip.
  • 700 G Peters 15+11+29.
  • 75 ml Ciro Cleandrip.

General information

Size

400 x 500 x 200 mm

Uniclass

Pr_75_50_18_42 Irrigation control panelsPrimary

CAWS

S14/110 Irrigation system

Q31/292 Prefabricated plant containers

Q32/275 Prefabricated plant containers

Specification data - Irrigation control panels Enhanced data

Power

Mains 220 V.

Dimensions

400 x 500 x 200 mm.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
