ios - Freestanding Bath
Verified by manufacturer 3 months ago
QUARRYCAST™ White IOS-N-SW-NO
QUARRYCAST™ White IOS-N-SW-NO

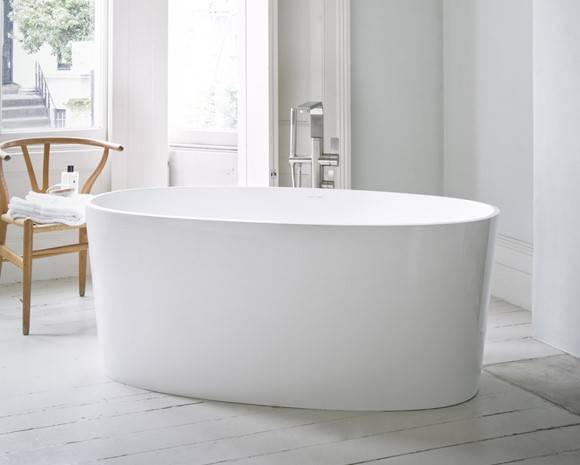

Freestanding bath, 190 L capacity.
Application
Luxury freestanding bath suitable for domestic and hospitality settings.
Description
This small freestanding bath adds elegance to any bathroom.
Features and benefits:
- Designed for space saving, where floor space is at a premium.
- Made with QUARRYCAST™ a unique blend of Volcanic Limestone™ and high-performance resins.
- Delivers unrivalled strength, durability, and beauty.
- Available in a gloss or matt finish.
- Available in a range of RAL colours.
General information
Color | White Other |
Finish | Gloss Matt |
Material | Limestone Stone |
Shape | Oval |
Length | 1511 mm |
Width | 802 mm |
Height | 600 mm |
Warranty description | Eight year Guidance for specification option: For commercial use. 25 year Guidance for specification option: For residential use. Two year Guidance for specification option: Paint finish exterior. Manufacturer guidanceNote: Commercial and residential warranties indicated are for QUARRYCAST™ white products only. Paint finish exterior guaranteed for two years. |
Uniclass | |
CAWS | N13/355 Baths N13/35 Baths |
Specification data - Baths
Form | Free-standing. |
Materials | QUARRYCAST™ volcanic limestone. |
Colour | White. |
Size | 1511 x 802 mm. |
Volume to overflow (maximum) | 318 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: Tap holes cannot be drilled for this product. |
Overflow | No overflow hole.Guidance for specification option: Drill as required. |
Material Finish | QUARRYCAST™ white (gloss). |
Dimensions – height | 600 mm. |
Weight | 86 kg. |
Recommended discharge pipe | Not required. K-12-xx. K-17-xx. K-36-xx. K-40-xx. Manufacturer guidance(Recommended wastes): |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
EU_ios_2022
Case studies
At the Chapel, Somerset, England (ios, Barcelona)
JW Marriott Venice Resort & Spa (ios)
Caldera House, Jackson Hole, Wyoming, USA (IOS)
