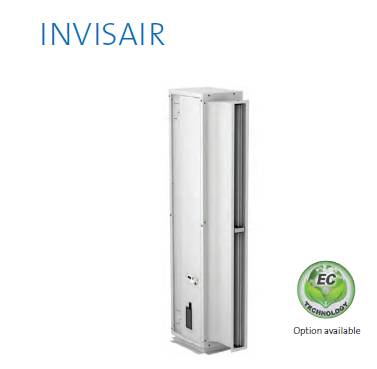

Invisair Concealed Air Curtain
Compare variants

Application

Suitable for use in:

  • Applications where the body of the unit is to be concealed inside a column or bulkhead for architectural reasons.
  • Commercial and industrial premises.

Description

A concealed, horizontal or vertical air curtain.


Features and benefits:

  • The Invisair air intake and discharge grille are in the same plane so that the air flows through the unit in a straight line.
  • Heat loss through open doors is significantly reduced.
  • A standard manual controller and 7 metres of control cable are included. Other control options available include the Clever controller or the BMS interface.
  • Tested to AMCA 220-05.

General information

Shape

Rectangle

Color

Any RAL colour available. Consult manufacturer and insert requirements.

White

RAL9016 (standard).

Size

1550 x 285 x 360 mm

2055 x 285 x 360 mm

2555 x 285 x 360 mm

Uniclass

Pr_70_60_36_02 Air curtainsPrimary

Specification data - Air curtains Enhanced data

Heating method

Air.

Arrangement

Horizontal, vertical.

Output

0.424 kW.

Air volume

2640 m³/h.

Mounting height

3.5 m.

Casing finish

Manufacturers standard.

Accessories

Not required.

Clever controller.

BMS interface.

EC fan.

Voltage

230 V.

Frequency

50Hz.

Weight

55 kg.

Noise

Noise level at 5 m.

56 dB.

Dimensions

1550 x 285 x 360 mm.

Fan

AC.

Floor-to-ceiling height

4.2 (maximum).
