INVI Hardware Concealed Hinges RY80 - Concealed Hinge
Verified by manufacturer 6 days ago

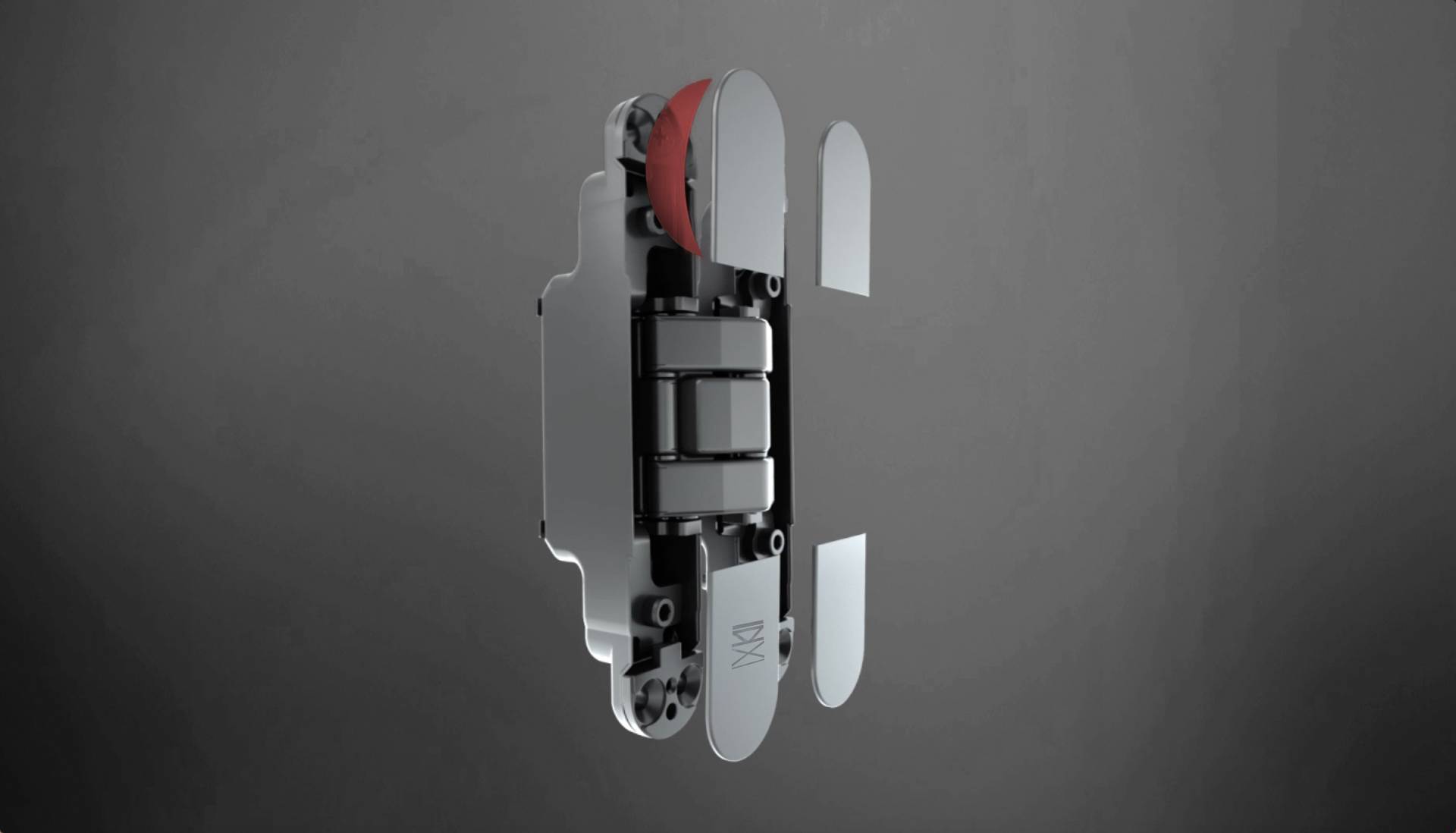

Concealed Door Hinge.
Application
Internal doors. Can be used on right or left handing doors.
Description
Concealed door hinge. The product allows for uninterrupted clean lines around internal doors for the ultimate square-set interior. Fire rated to EI60 & EI120.
When used with INVI Jamb Flush Finish Frames, three hinges are strongly recommended. Four hinges are required for +2600 mm door leaf. Intumescent strips supplied for FD30 and FD60 fire rated doors.
Features and benefits:
- No visible barrel or pin.
- Maintenance free bearing mechanism.
- Aesthetically pleasing hinge covers.
- The three-axis adjustable hinge can be adjusted in three directions to align door margins for the perfect fit.
- Designed and tested to withstand heavy traffic flow.
- Door thickness: 44 and 54 mm.
- Opening: 90 and 180°.
General information
Color | Black White Silver Bronze Gold |
Finish | Satin Chrome Polished Bronze Brushed |
Material | Stainless steel |
Shape | Rectangle |
Width | 74.9 mm |
Height | 160 mm |
Warranty description | Three year |
Uniclass | |
CAWS | P21/8 Door hinges P21/320 Door hinges |
SKU Code | RY80 |
Specification data - Concealed hinges
Accessories | Intumescent Strip. |
Finish: | Black. Bronze. Brushed Bronze. Imperial Bronze. Polished Brass. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel |
Expected Life | Ten year |
Literature

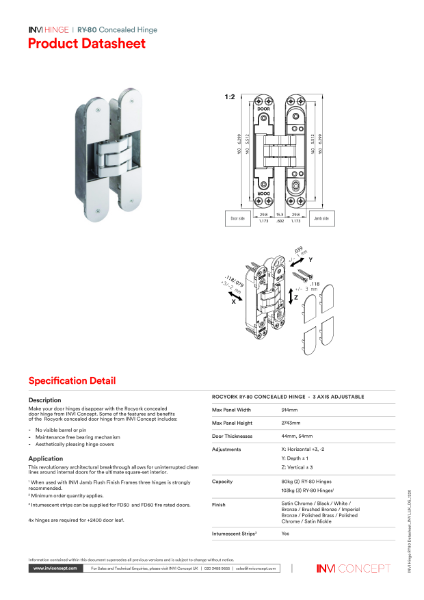

INVI-RY80-Datasheet-UK
