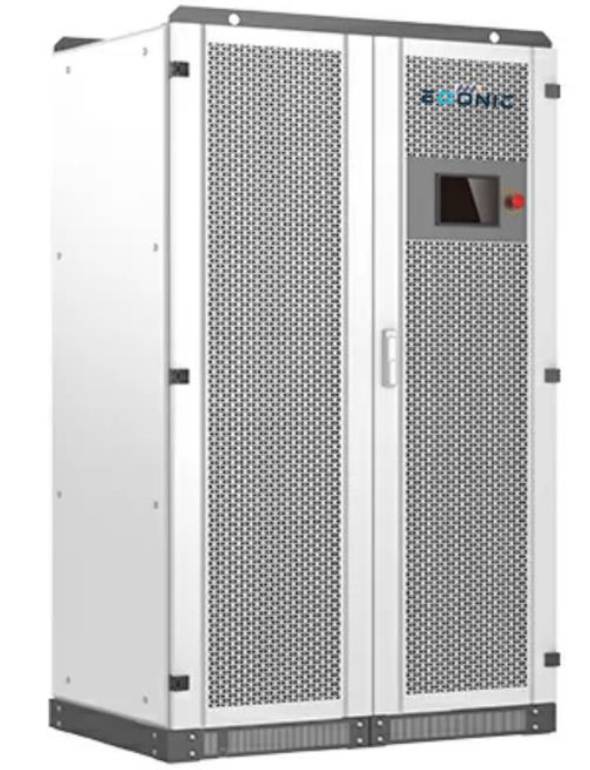

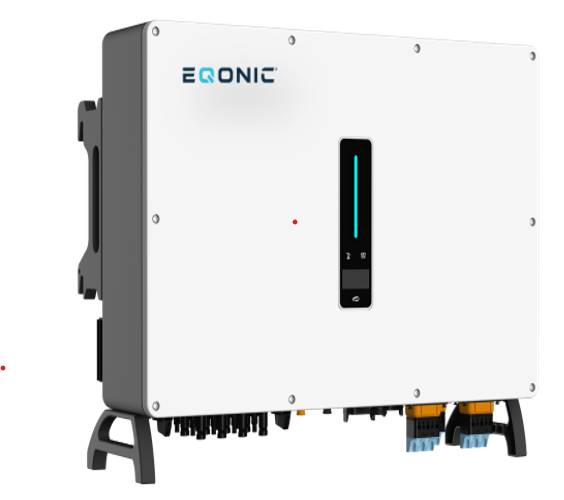

Inverter with Cabinet Battery - Energy System Inverter & Cabinet Battery

Verified by manufacturer 8 days ago

EQSH-3P30

EQONIC GROUP LIMITED Variant:

A high voltage, all-in-one three phase inverter and cabinet battery system. Inverter capacity: 30-500 kW. Battery capacity: 96 - 578 kWh.

Jump to:
+44 20 7101 0733 Website

Application

Designed for large-scale, commercial and industrial use, the high-voltage series allows for a greater range of energy storage size. The large system is suitable to supply power for mid-size factory buildings, hospitals, apartments, hotels, or shopping complex.

Description

An all-in-one inverter and battery system. Tailored for self-use, peak times, and emergency backup, Eqonic's system offers complete protection, versatility with different loads, and efficiency. It supports generator access, ensures full power discharge and operates quietly as a reliable UPS during outages. It has a plug-and-play battery design and also offers a long warranty. Equipped with Smart iBMS technology, liquid cooling, and multiple protection features, it guarantees safety, efficiency and longevity.


Features and benefits (inverter):

  • Includes island protection, PV reverse polarity protection, battery reverse polarity protection, insulation monitoring, residual current monitoring, AC over current protection, AC over power protection, and short circuit protection.
  • Compatible with single-phase load and three-phase load, support 100% unbalanced load, and the maximum efficiency can reach 97.9%.
  • Support generator access.
  • Support full power discharge, automatic management of battery charge/ discharge.
  • Less noise due to no external cooling fans.
  • UPS for the important loads when power off.

Features and benefits (battery):

  • Modular plug-and-play design.
  • ≥8000 cycles/ten-year warranty.
  • Smart iBMS with RS/CAN protocol.
  • Safe reliable LiFePO4 technology.
  • Liquid cooling technology.
  • High efficiency.
  • Short circuit protection.
  • Overcharge protection.
  • Long life and maintenance free.
  • Remote monitoring.
  • Supports parallel use.

General information

Color

White

Shape

Rectangle

Length

300 mm

Guidance for specification option:

EQSH-3P30 to EQSH-3P50.

720 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

800 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

1050 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

Manufacturer guidance

Depth.

Width

800 mm

Guidance for specification option:

EQSH-3P30 to EQSH-3P50.

1200 mm

Guidance for specification option:

EQMHM-100 and EQMHM-150.

600 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

1600 mm

Guidance for specification option:

EQMHM-500.

Height

620 mm

Guidance for specification option:

EQSH-3P30 to EQSH-3P50.

2050 mm

Guidance for specification option:

EQMHM-100 to EQMHM-500.

Warranty description

Ten year

Guidance for specification option:

Battery.

Uniclass

Pr_65_72_43_42 InvertersPrimary

CAWS

V90/312 Photovoltaic systems

Specification data - Inverters

Input

-

Voltage range

135–1000 V d.c.

Guidance for specification option:

PV input: Start-up voltage to maximum DC input voltage.

Current (maximum)

30 A.

Output

-

Power rating

30 kW.

Nominal frequency

50/60 Hz.

Manufacturer guidance

Rated AC frequency.

Voltage harmonic distortion

<3%.

Guidance for specification option:

At rated output power.

Maximum power point tracker (MPPT)

Required.

Enclosure

-

Ingress protection (minimum)

To BS EN 60529, IP 65.

Interfaces

CAN, RS485.

CAN, RS485, WiFi/LAN.

Manufacturer guidance

CAN, RS485 is provided as standard. WiFi/LAN is optional.

InputPower

45 kW (maximum).

Dimensions

800 x 620 x 300 mm.

Guidance for specification option:

W x H x D

Weight

72 kg.

Batteries

EQWC-96.

Guidance for specification option:

  • Five-star match with inverter.
  • AC side rated capacity at BOL: 96.46 kWh.
  • Rated voltage range: 240–350.4 V.
  • Dimensions: 1600 x 2200 x 1435 mm (W x H x L).

EQWC-144.

Guidance for specification option:

  • Four-star match with inverter.
  • AC side rated capacity at BOL: 144.69 kWh.
  • Rated voltage range: 360–525.6 V.
  • Dimensions: 1600 x 2200 x 1435 mm (W x H x L).

EQWC-192.

Guidance for specification option:

  • One-star match with inverter.
  • AC side rated capacity at BOL: 192.92 kWh.
  • Rated voltage range: 480–700.8 V.
  • Dimensions: 1600 x 2200 x 1435 mm (W x H x L).

EQWC-258.

Guidance for specification option:

  • One-star match with inverter.
  • Rated capacity: 258 kWh.
  • Rated power: 125 kW.
  • Rated voltage: 921.6 V (d.c. battery); 400 V (a.c. side).

EQWC-289.

Guidance for specification option:

  • One-star match with inverter.
  • Rated capacity: 289 kWh.
  • Rated power: 135 kW.
  • Rated voltage: 921.6 V (d.c. battery); 400 V (a.c. side).

Show more

Manufacturer guidance

Refer to data sheet for full technical specifications.

Sustainability data

Expected Life

15 year
