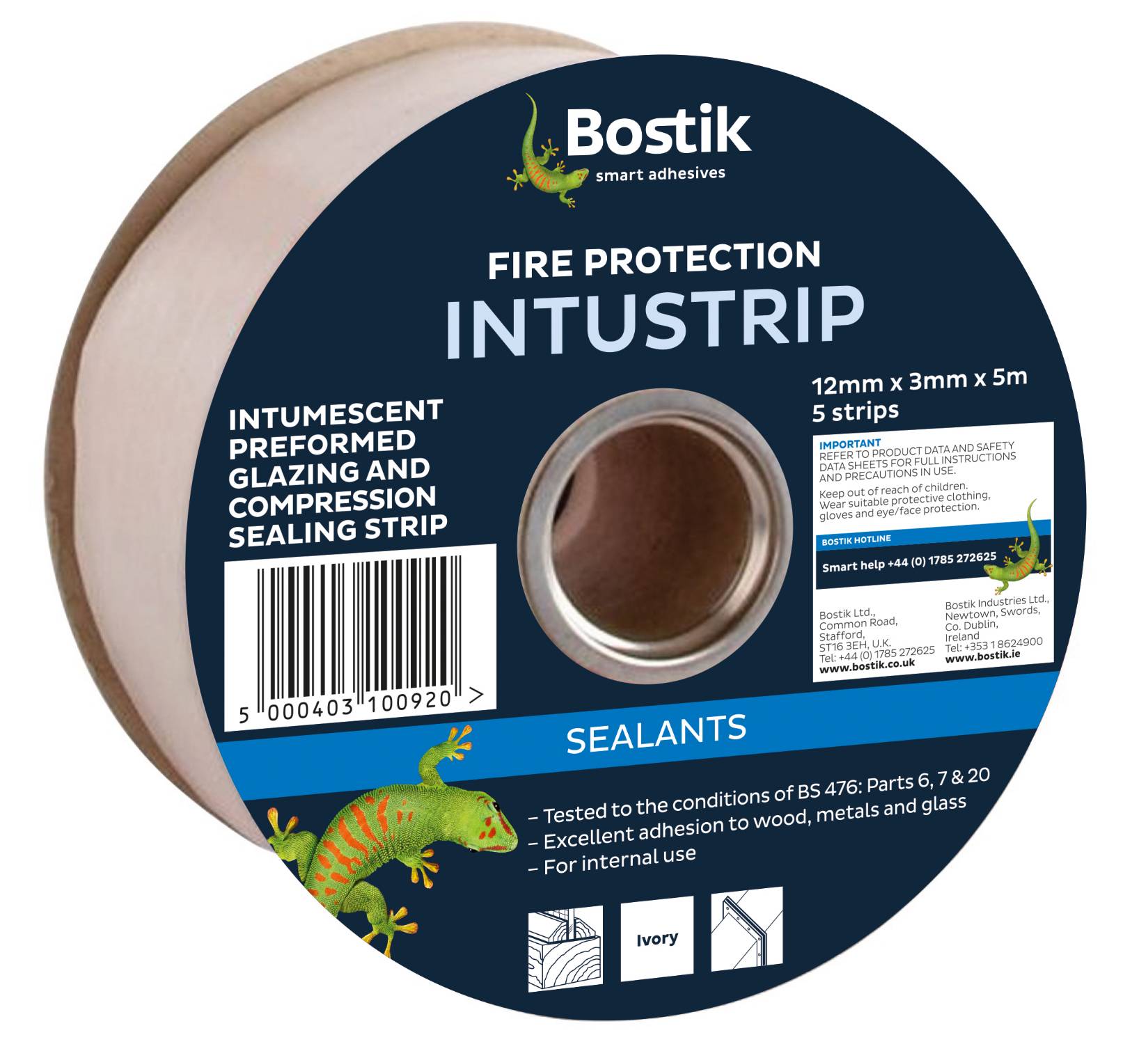

Intustrip Sealant

Description

A soft adhesive pre-formed strip sealant developed for use as a compression seal in fire sensitive situations. The strip is based on a hydrocarbon rubber, compounded with special additives which cause the product to swell (intumesce) when exposed to flame or other heat source, the insulating char being resistant to the passage of smoke and flames. It can be used in the bedding of glass in window frames and doors and in compression seals.

Features:

  • Tested to the conditions of BS 476-20: 1987 to give over 30 minutes fire resistance in suitable assembly.
  • Preformed in standard width and length.
  • Easy to use.
  • Excellent adhesion to wood, metals and glass.
  • Dimensionally stable in compression seals.
  • For internal use only.

General information

Color

White

Features

Fire resistant for up to an hour, pre formed in standard width and length, easy to use, good adhesion to wood, metals, glass, dimensionally stable in compression seals, for internal use

Finish

Water resistant

Size

Reels of 12mm x 3mm x 5 metres x 5 strips per reel

Uniclass 2015

Pr_35_90_87_30 Fire-resistant glazing tapesPrimary

CAWS

L10/75 Sealant joints

L10/810 Sealant joints

L40/505 Fire-resistant tape/ Strip glazing

L40/65 Fire-resistant tape/ Strip glazing

Specification data - Fire-resistant glazing tapes

Product Reference

Intustrip Sealant

Standard product features

Colour:

White.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
