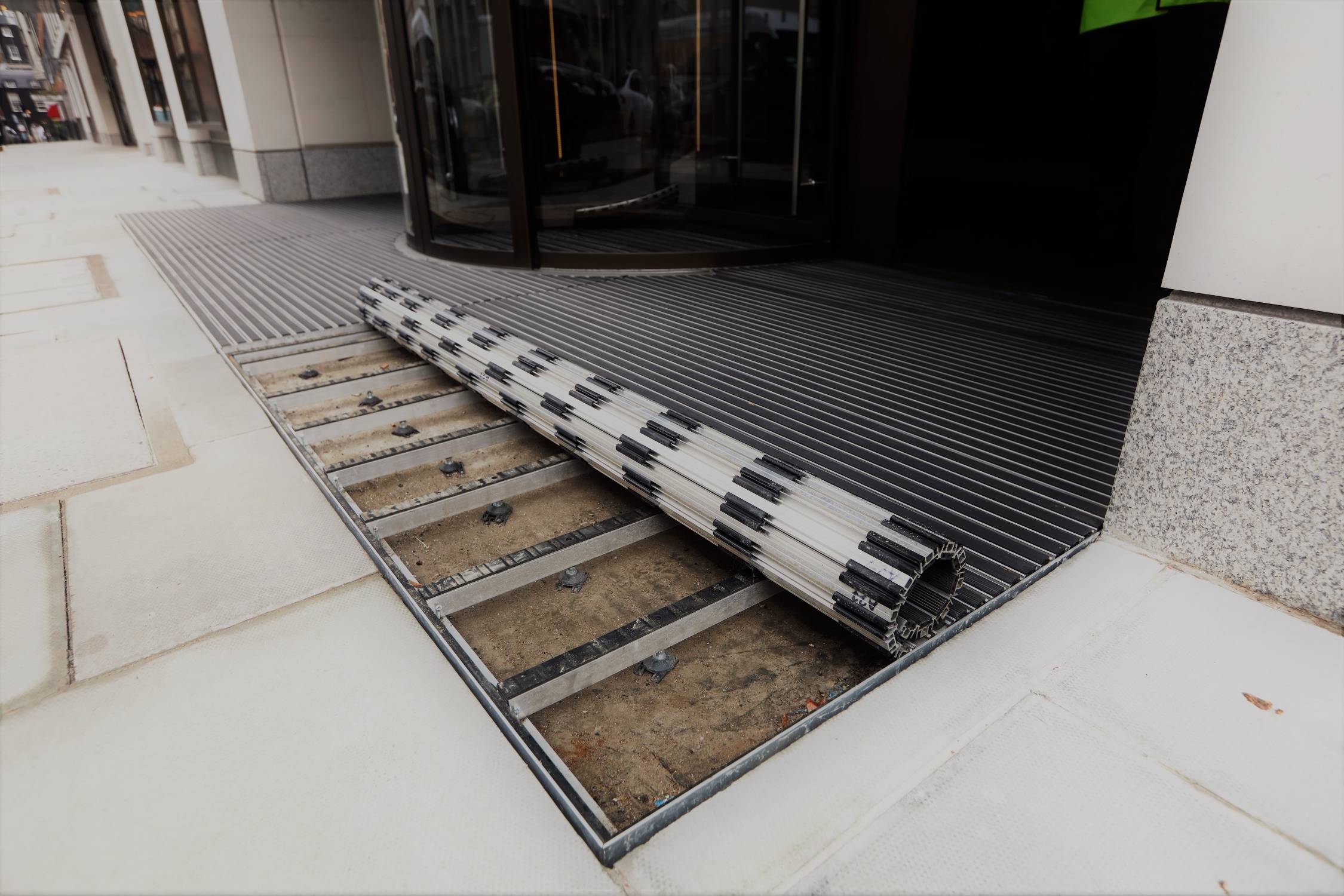

INTRAmatting Waterlogic - Drainage System
Verified by manufacturer 21 days ago
Drainable support system.
Application
- Suitable for internal applications with polyamide fibre inserts.
- For heavy traffic environments, Zone 1 and 2.
Description
Drainable support system, designed to provide optimum performance in areas of extreme traffic flow and excessive moisture ingress.
Features and benefits:
- Exceptionally strong construction for extreme loading
- High volume capacity: 75 litres per m2
- Proven design for the most effective performance
- Effective soil fall-away to minimise tracking
- Versatile design for ease of installation in all locations
- Open construction design for simple cleaning regime
Installation:
- In a suitable recessed matwell area with the surface of mat level with adjoining floor covering.
- Can be customized to fit bespoke matwell bases.
General information
Color | Grey |
Material | Metal |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year |
Uniclass | |
CAWS | N10/300 Entrance matting |
Product range |
Specification data - Entrance mats
Classification data | |
Description | Drainable support system. |
Material | Stainless steel sheet. Waterproof membrane. |
Depth | 80 mm. |
Construction | Open. |
Sustainability data
Material | Metal |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 3 |
