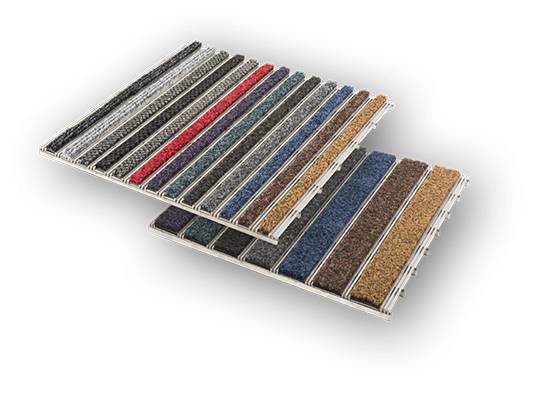

INTRAgrille XT - Single Module

Application

  • High traffic environments.
  • Internal – choose from Elite polyamide, Premier polyamide, and polypropylene inserts.

Can be used in conjunction with wheelchairs and shopping trolleys, and the material is heel-proof.

Description

Architectural stainless steel DDA-compliant floor grilles, suitable for heavy duty, high traffic areas.

Features:

  • DDA-compliant, suitable for wheelchair access.
  • Heel proof open construction - allows dirt and moisture to fall through into the matwell below.
  • Optimum dirt and moisture removal.
  • Suitable for a wide range of fibre inserts.

Applications:

  • High traffic environments.
  • Internal – choose from Elite polyamide, Premier polyamide, and polypropylene inserts.

Can be used in conjunction with wheelchairs and shopping trolleys, and the material is heel-proof.

Installation:

Can be installed into suitable recessed matwell area (surface level with adjoining floor covering), or surface mounted with the use of ramped edging.

General information

Finish

Stainless steel grade 316

Color

Black, anthracite, grey, blue, brown, purple, turquoise, coco, red, Slate Grey

Features

Suitable for heavy duty traffic, optimum dirt and moisture removal, range of high quality fibre inserts, good visual appearance, heel proof, suitable for wheelchair access

Material

Stainless steel

Size

21 x 14 x 6 mm

WarrantyDescription

10 years

Uniclass 2015

Pr_25_71_42_70 Raised access floor panelsPrimary

CAWS

L30/30 Proprietary

L30/310 Proprietary

L30/45 Ramps/ Walkways

L30/460 Walkways

N10/300 Entrance matting

P31/370 Access covers/ gratings for

Q10/180 Drainage channel systems with gratings

Specification data - Raised access floor panels

Product Reference

INTRAgrille XT™

Plate width

21 mm (single module)

24.3 kg/m².

57 mm (double module)

23.4 kg/m².

Inserts

Elite polyamide fibre, colour

Insert colour requirement from 'Options' below.

Polypropylene, colour

Insert colour requirement from 'Options' below.

Premier polyamide, colour

Insert colour requirement from 'Options' below.

Mat well frame

Not required

INT019

Standard product features

Depth:

14 mm.

Construction:

  • Open construction.
  • Stainless steel profile INTG42, grade 316 (1.4401).
  • All inserts recyclable/ re-usable.

Product Options

Inserts:

- INTRAlux Elite polyamide fibre:

601 Red; 602 Blue; 604 Coco; 605 Brown; 606 Grey; 607 Anthracite; 608 Black; 609 Purple; 610 Turquoise.

- INTRAlux Linear Polypropylene:

443 Anthracite; 451 Grey.

- INTRAlux Premier polyamide:

130 Black; 138 Slate Grey.

- INTRAlux Select polyamide fibre:

50 Black; 73 Grey.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library
