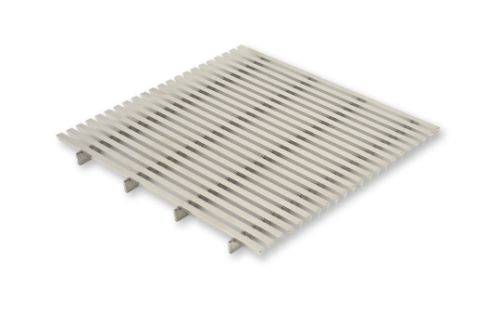

INTRAgrille T5060/R

Verified by manufacturer 8 days ago

INTRAsystems

A heavy-duty architectural grille.

Jump to:
BOS
+44 (0)1425 472000 Website

Application

For interior and exterior applications. Recommended for walkways, platforms and staircases, trench covers, entrance grilles, ventilation, light wells and drainage.

Description

Heavy-duty architectural grille available in both 1.4301 (304) and 1.4401 (316) grades of stainless steel and a choice of bespoke finishes.

Features and benefits:

  • Suitable for interior and exterior applications
  • Striking linear aesthetic with no visible seams
  • Can be cut and shaped to nearly any shape and format
  • Adjust profile and support spacing to achieve appropriate load-bearing, airflow and screening
  • Drainage options available
  • 100% recyclable and sustainable material
  • Heavy-duty construction, recommended for walkways, platforms & staircases, trench covers, entrance grilles, ventilation, light wells and drainage
  • Can be pickled and passivated, electropolished or shot-peened

General information

Color

Grey

Manufacturer guidance

Any RAL colour available.

Finish

Polished

Guidance for specification option:

Electropolished.

Pickled

Guidance for specification option:

And passivated,

Micro-textured

Powder-coated

Material

Steel

Guidance for specification option:

Stainless steel, grade 1.4301 (304) or Stainless steel, grade 1.4401 (316.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Uniclass

Pr_25_71_42_70 Raised access floor panelsPrimary

CAWS

L30/30 Proprietary stairs

L30/310 Proprietary stairs

L30/45 Ramps/ walkways

L30/460 Walkways

N10/300 Entrance matting

P31/370 Access covers/ gratings

Q10/180 Drainage channel systems with gratings

Product range

Architectural Grilles

Specification data - Raised access floor panels

Classification data

Casing

-

Material

Stainless steel, grade 1.4301 (304).
Stainless steel, grade 1.4401 (316).

Factory finishes

Powder coated.

Weight (maximum)

19 kg/m².

Guidance for specification option:

10 x 2 mm support profile.

20.6 kg/m².

Guidance for specification option:

15 x 2 mm support profile.

22.5 kg/m².

Guidance for specification option:

20 x 2 mm support profile.

35 kg/m².

Guidance for specification option:

40 x 3 mm support profile.

Top profile

5 x 5 mm.

Support profile

10 x 2 mm.
15 x 2 mm.
20 x 2 mm.
40 x mm.

Slot opening

4 mm.

Guidance for specification option:

Constant, alternating or increasing.

Sustainability data

Material

Steel

Guidance for specification option:

Stainless steel, grade 1.4301 (304) or Stainless steel, grade 1.4401 (316.

Recyclability

100%
