INTRAgrille T5060
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type

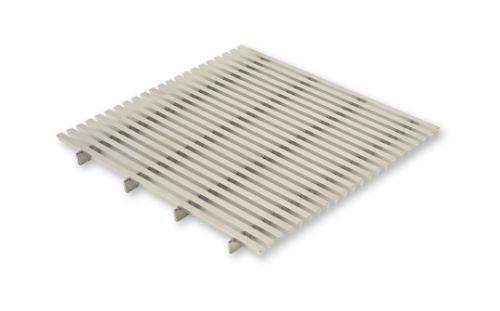

A heavy-duty architectural grille, available in both 304 and 316 grades of stainless steel.
Application
For interior and exterior applications. Recommended for walkways, platforms and staircases, trench covers, entrance grilles, ventilation, light wells and drainage.
Description
Heavy-duty architectural grille available in both 1.4301 (304) and 1.4401 (316) grades of stainless steel and a choice of bespoke finishes.
Features and benefits:
- Linear aesthetic with no visible seams.
- Can be cut and shaped to nearly any shape and format.
- The profile and support spacing can be adjusted to achieve appropriate load bearing, airflow and screening.
- Can be pickled and passivated, electroplated, powder coated to any standard RAL colour or shot peened.
- 100% recyclable and sustainable material.
- Heavy duty construction.
- Drainage options available.
General information
Color | Grey Manufacturer guidanceAny RAL colour available. |
Finish | Polished Guidance for specification option: Electropolished. Pickled Guidance for specification option: And passivated. Powder-coated Matt |
Material | Steel Guidance for specification option: Stainless steel, grade 1.4301 (304) or Stainless steel, grade 1.4401 (316). |
Shape | Manufacturer guidanceBespoke shape. Consult manufacturer. |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | L30/30 Proprietary stairs L30/310 Proprietary stairs L30/45 Ramps/ walkways L30/460 Walkways N10/300 Entrance matting P31/370 Access covers/ gratings Q10/180 Drainage channel systems with gratings |
Product range |
Specification data - Stainless steel open bar metal gratings
Finish | Electropolished.Pickled and passivated.Powder coated.Shot peened. |
Size | |
Depth | 14.5 mm.Guidance for specification option: 10 x 2 mm profile. 19.5 mm.Guidance for specification option: 15 x 2 mm profile. 24.5 mm.Guidance for specification option: 20 x 2 mm profile. 44.5 mm.Guidance for specification option: 40 x 3 mm profile. |
Weight | 19 kg/m². Guidance for specification option: 10 x 2 mm profile. 20.6 kg/m². Guidance for specification option: 15 x 2 mm profile. 22.2 kg/m². Guidance for specification option: 20 x 2 mm profile. 35 kg/m². Guidance for specification option: 40 x 3 mm profile. |
Slot opening | 4 mm. Guidance for specification option: Constant, alternating or increasing. |
Material | Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Top profile | 5 x 6 mm. |
Support profile | 10 x 2 mm. 15 x 2 mm. 20 x 2 mm. 40 x 3 mm. |
Sustainability data
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Stainless Steel Grilles - INTRAgrille Brochure
