Internet of Façades (IoFID) - Software and Tagging System

Verified by manufacturer 3 months ago

Schueco UK Ltd

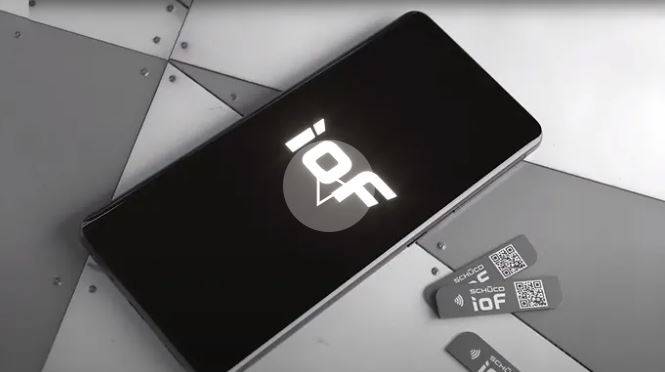

Data tag application for providing façade units with a digital identity.

Jump to:
+44 (0)1908 282111 Website

Application

For use on projects including façade units.

Description

Data tag application for providing façade units in a building with their own digital identity, helping towards creating a digital building envelope.


All of the data, information and documents relating to the unit are stored within the IoFID and will be available throughout the duration of the unit's useful life. This is useful for clients, investors or facility managers, providing a better overview, more information and ultimately greater control of a project.


Features and benefits:

  • Location in the building - Every unit can be assigned an item number, e.g. from the current building plans. The advantage of this is that sub-contractors will be able to see immediately where the unit is located according to the plans.
  • Acceptance and documentation - After acceptance/ installation, photos of the unit can be taken, and linked with the unit and date. The advantage of this is direct detection if a defect is reported.
  • Review documents - Documents can be marked in IoF as “For revision” and added to a project at the touch of a button.
  • Requires no power supply, cabling, or control unit.


IoF App:

Can be used for both B2B and B2C customers. B2B content can be retrieved via login and the appropriate rights. B2C content can be viewed without logging in.


B2B content:

  • Create a digital unit (digital twin) with basic information.
  • Assign the digital unit to a building/ project.
  • Save the installation and acceptance date.
  • Create and view service requests.
  • All of the information and documents for a unit can be viewed.


B2C content:

  • Unit information relevant for the end customer, such as location, acceptance date, etc.
  • Create service requests.
  • Link to the Schüco DocuCenter (area not requiring login).

General information

Color

Black

Finish

Matt

Material

Polycarbonate

Shape

Rectangle

Length

55 mm

Width

14 mm

Height

1 mm

Uniclass

Pr_70_75_20_22 Digitally enabled data tagsPrimary

Specification data - Digitally enabled data tags

Data hosting

Remote cloud based.

System platform

iOS/ Android.

Format

NFC/ QR code label.

Guidance for specification option:

  • Near Field Communication (NFC) - URL and unique ID. NFC for contactless data retrieval. The data is retrieved using a smartphone.
  • QR-code - URL and unique ID. The data is retrieved using a smartphone camera.

Identification type

Printed text on label.

Mounting type

Adhesive fixing.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
