Internal Uneven Door, Vision Panel Style VP06

Verified by manufacturer 8 months ago

NBS

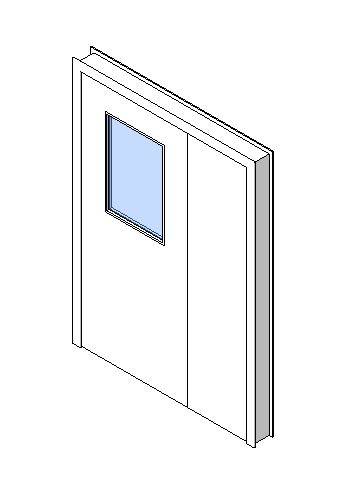

Internal uneven leaf swing door in a selection of opening dimensions with a single upper vision panel.

Jump to:
BOS
+44 (0)345 4569594 Website

Description

Internal uneven leaf swing door in a selection of opening dimensions with a single upper vision panel.

System includes:

  • Single rebate frame
  • Planted stop frame
  • VP06 leaf
  • Blank leaf
  • Optional architraves

General information

Length

1510 mm

Width

2100 mm

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit

Revit 2016

2
