Internal PAS24 Door
QA Certificate
Certificate type
Bespoke made-to-measure timber enhanced security doorset for internal entrances.
Residential internal use.
Bespoke made-to-measure timber enhanced security doorset for internal entrances.
Features and benefits:
- BM Trada Q Mark enhanced security with fire performance.
- Enhanced security door PAS 24:2016.
- Auto-firing multi-point security lock.
- Economically designed timber frame section (nominal 2" x 4" section).
- Includes evidence for overhead and jamb concealed closers.
- Up To 1047 x 2402 mm size for fire and security.
- Provision for glazed apertures using fire rated P1A glazing.
- Tested to BS 476:22, BS EN 1634-1, BS EN 1634-3, PAS 24:2016, BS 6375-1, BS6375-2, BS 6375-3.
Application:
Residential internal use.
| Features | Enhanced security door PAS 24:2016 |
| Finish | Can be primed for site finish, fully painted, laminate or veneer |
| Material | Wide range of wood species available |
| Shape | Rectangular |
| Size | Made to measure as per schedule, maximum of 1047 x 2402 mm |
| Uniclass 2015 | |
| CAWS | L20/55 Doorsets L20/410 Wood doorsets |
| Product Reference | Johan Internal PAS24 Door |
| Third party accreditation | BM Trada Q Mark Enhanced Security With Fire Performance |
| FireRating | NFRFD30FD30S |
| Security performance | PAS 24:2016 |
| Standard | ButtHalf lapMitreMortice and tenon |
| Door leaf | - |
| Thickness | 44 mm33 dB maximum. 54 mm37 dB maximum. |

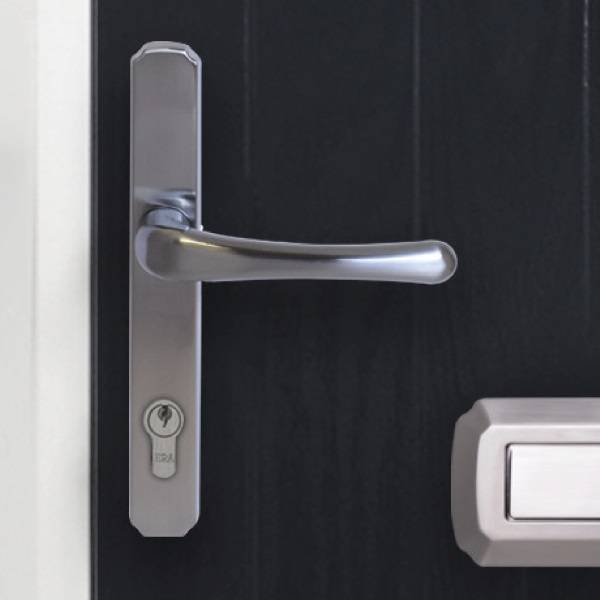

| Locking mechanism | Cylinder - Era fortress 3* Euro profile key/ keyCylinder - Era fortress 3* Euro profile key/ thumbturnEra secure fit classic multipoint lock system |
| Accessories | Wide range of ironmongery available; consult manufacturer for information. |
| Threshold | Exitex MXS/FS15Stormguard slimline |
| Configuration | Single leaf single action |
| Size | As drawingInsert reference. As scheduleInsert reference. |
| Core | Particle board |
| Lippings | BeechLipped all four edges, 6–12 mm, 640 kg/m³ density. European ashLipped all four edges, 6–12 mm, 640 kg/m³ density. European cherryLipped all four edges, 6–12 mm, 640 kg/m³ density. KSKLipped all four edges, 6–12 mm, 640 kg/m³ density. MahoganyLipped all four edges, 6–12 mm, 640 kg/m³ density. MapleLipped all four edges, 6–12 mm, 640 kg/m³ density. MerrantiLipped all four edges, 6–12 mm, 640 kg/m³ density. OakLipped all four edges, 6–12 mm, 640 kg/m³ density. SapeleLipped all four edges, 6–12 mm, 640 kg/m³ density. StelipLipped all four edges, 6–12 mm, 640 kg/m³ density. UtileLipped all four edges, 6–12 mm, 640 kg/m³ density. WalnutLipped all four edges, 6–12 mm, 640 kg/m³ density. WengeLipped all four edges, 6–12 mm, 640 kg/m³ density. |
| Facing | LaminatesMDFPaintPaper foilsPVCTimber substratesTimber veneers |
| Colour | Insert requirement dependent on finish specified. |
| Type | Not required12 mm AGC Pyrobelite 9EGApertures cut a minimum of 150 mm from door edge of leaf and minimum 14 0mm between apertures, maximum 0.6 m² area. 15 mm Pilkington Pyrostop 30-10Apertures cut a minimum of 150 mm from door edge of leaf and minimum 14 0mm between apertures, maximum 0.6 m² area. |
| Frame | - |
| FrameMaterial | AshBeechKSKMahoganyMapleMerantiOakPoplarRedwoodSapeleUtileWalnutWenge |
| Frame finish | LaminatesPaintPaper foilsPrimed for site finishPVCTimber substratesTimber veneers |
| Colour | Insert requirement dependent on finish specified. |
| Intumescent seals | PVC encapsulated graphite based intumescent seal as Johan manufacturing details |
| Acoustic drop seal | Not requiredJohan 67999 |
| Door closers | Jamb concealed closerOverhead closerOverhead concealed closer |
| Standard product features | Colour: Wide range available dependent on species and finish. Features: Enhanced security door PAS 24:2016. Finish: Can be primed for site finish, fully painted, laminate or veneer. Material: Wide range of wood species available. Shape: Rectangular. Size: Made to measure as per schedule, maximum of 1047 x 2402 mm. |
- BM TRADA: Q MARK - BM Trada Q Mark Enhanced Security With Fire Performance
