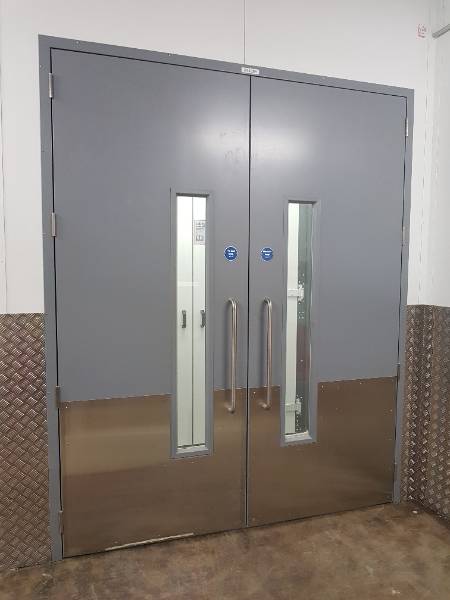

Internal Fire Rated Door

Architrave frame

for a cosmetically pleasing finished architrave on all applications

Clamp/Wrap-around frame

suitable for all panel applications

Fixed double rebate frame

for blockwork applications

Fixed single rebate frame

for blockwork applications

Rectangular unit 305 x 203 mm.

Non-ADM compliant

Single unit 1340 x 152 mm clear vision.

Approved Document M compliant

Square unit 457 x 457 mm.

Non-ADM compliant

Twin unit 457 x 152 mm.

Approved Document M compliant

Twin unit 711 x 152 mm.

Approved Document M compliant

None.

Fireblock 240 minute fire rated louvre (457 x 457 mm).

Fireblock 240 minute fire rated louvre (457 x 1545 mm).

Teardrop self adhesive silicon cold smoke seal pre-fitted to the internal rebate of the frame.

To BS476-31.1 and BS EN 1634-3.

Plain meeting stile.

Double Integral Astragal on both active and static leaves.

Single Integral Astragal to active leaf only.

Internal Sub-Frame: 2 mm folded galvanized steel (25 x 42 x 25) u-channel to perimeter of door and three channels vertically positioned over the width of the door blade.
