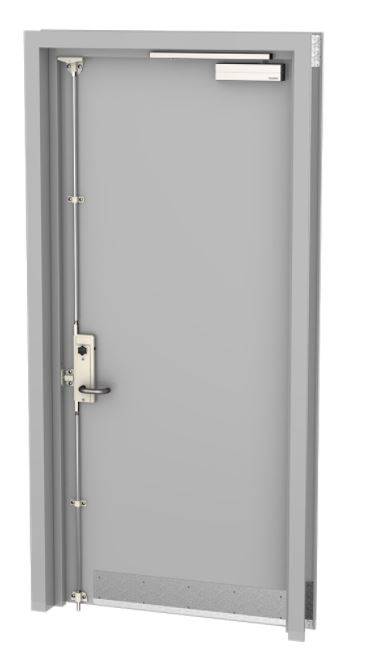

Name: EBD 44 Acoustic
Brand: EBD Steel Doors (formerly Eurobond Doors)
SKU: bCpkrGM2ZMb8vC2Sq2pKQ7

Standard	To BS 476-22 and BS EN ISO 140-3.
Configuration	Single leaf, left hand opening. Single leaf, right handed opening.
Doorset size	Guidance for specification option: Refer to data sheet for sizes. Maximum overall door leaf area: 3.77 m². Insert requirements or refer to a schedule.
Performance	-
Fire resistance	-
Integrity	Not required.
Smoke leakage	Not required. To EN 1634-3:2004, Sa.
Acoustic performance	To BS EN ISO 10140-2, sound reduction index Rw 35 dB. To BS EN ISO 10140-2, sound reduction index Rw 40 dB.
Frame	-
Material	1.2 mm galvanized steel.
Threshold	EBD standard threshold. Drop seal. Aluminum threshold. Raindrip threshold.
Perimeter seals or inserts	2 mm folded galvanized steel (25 x 42 x 25) u-channel to perimeter of door and three channels vertically positioned over the width of the door blade.
Finish	-
Coating	Powder-coated.
Texture	30% gloss (matt).
Colour	RAL colour range. Manufacturer guidance See RAL colours in brochure.
Door leaf	-
Thickness	44 mm.
Core	Dufaylite corrugated cardboard. Guidance for specification option: Non rated application only.
Material	1.2 mm galvanized steel interlocked to the back/front face and fixed on the top and bottom edge of each door blade.
Glazing	-
Type	6 mm polycarbonate clear. Guidance for specification option: Non rated.
Finish	-
Coating	Powder-coated.
Texture	30% gloss (matt).
External colour	RAL colour range. Manufacturer guidance Standard RAL colour range available, insert requirements.
Internal colour	RAL colour range. Manufacturer guidance Standard RAL colour range available, insert requirements.
Film thickness (minimum)	40 microns.
Door accessories	None. Kickplates - stainless steel brush finish. Guidance for specification option: Standard height 200 mm (up to 1250 mm from FFL, other heights available to order). Kickplates - aluminium chequer plate. Guidance for specification option: Standard height 1250 mm from FFL.
Hardware	Pull handle - Deadlocking. Lever handle - Latching. Lever handle - Nightlatch. Lever handle - Sashlock. Lever handle - Access Control from one side. Lever handle - Access Control from both sides. Push pad/ optional OAD - emergency escape BS EN 179. Push bar/ optional OAD - panic escape BS EN 1125. Push bar access control - panic escape BS EN 1125.

Door frame profile	Fixed rebate frame. Guidance for specification option: Frame width: 96 mm. Applications: Blockwork and masonry walls. Reinforced concrete walls. Architrave frame. Guidance for specification option: Frame width: Wall thickness + 30 mm. Applications: Plasterboard steel stud partitions. White wall sandwich panels. Please contact manufacturer to verify approved systems. Clamp frame. Guidance for specification option: Frame width: Wall thickness + 7 mm. Applications: White wall sandwich panels. Please contact manufacturer to verify approved systems.
Vision panel	Not required. Rectangular unit 152 x 711 mm. Rectangular unit 152 x 1340 mm. Rectangular units 152 x 711 mm + 152 x 475 mm. Rectangular unit 203 x 305 mm. Square unit 406 x 406 mm. Show more
Gasket	188S Teardrop self adhesive silicon cold smoke seal pre-fitted to the internal rebate of the frame. Guidance for specification option: To BS476-31.1 and BS EN 1634-3.
Meeting stiles	Single astragal. Plain.
Hinges	Grade 14 concealed bearing hinge - EN 1935:2002 and CE marked. Guidance for specification option: Satin stainless steel finish.
Door closer	EN 1154, CE or UKCA marked. Guidance for specification option: Cam Motion or Rack and Pinion.

Finish	Galvanized
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_52 Carbon steel doorsetsPrimary
CAWS	L20/55 Doorsets L20/480 Doorsets

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	35 %

EBD 44 Acoustic

Application

Description

General information

Finish

Material

Shape

Length

Width

Height

Warranty description

Uniclass

CAWS

Specification data - Carbon steel doorsets

Standard

To BS 476-22 and BS EN ISO 140-3.

Configuration

Single leaf, left hand opening.

Single leaf, right handed opening.

Doorset size

Performance

Fire resistance

Integrity

Not required.

Smoke leakage

Not required.

To EN 1634-3:2004, Sa.

Acoustic performance

To BS EN ISO 10140-2, sound reduction index Rw 35 dB.

To BS EN ISO 10140-2, sound reduction index Rw 40 dB.

Frame

Material

1.2 mm galvanized steel.

Threshold

EBD standard threshold.

Drop seal.

Aluminum threshold.

Raindrip threshold.

Perimeter seals or inserts

2 mm folded galvanized steel (25 x 42 x 25) u-channel to perimeter of door and three channels vertically positioned over the width of the door blade.

Finish

Coating

Powder-coated.

Texture

30% gloss (matt).

Colour

RAL colour range.

Manufacturer guidance

Door leaf

Thickness

44 mm.

Core

Dufaylite corrugated cardboard.

Material

1.2 mm galvanized steel interlocked to the back/front face and fixed on the top and bottom edge of each door blade.

Glazing

Type

6 mm polycarbonate clear.

Finish

Coating

Powder-coated.

Texture

30% gloss (matt).

External colour

RAL colour range.

Manufacturer guidance

Internal colour

RAL colour range.

Manufacturer guidance

Film thickness (minimum)

40 microns.

Door accessories

None.

Kickplates - stainless steel brush finish.

Kickplates - aluminium chequer plate.

Hardware

Pull handle - Deadlocking.

Lever handle - Latching.

Lever handle - Nightlatch.

Lever handle - Sashlock.
