Application

  • Education.
  • Workplace.
  • Healthcare.
  • Hospitality.
  • Leisure/ sport.

Description

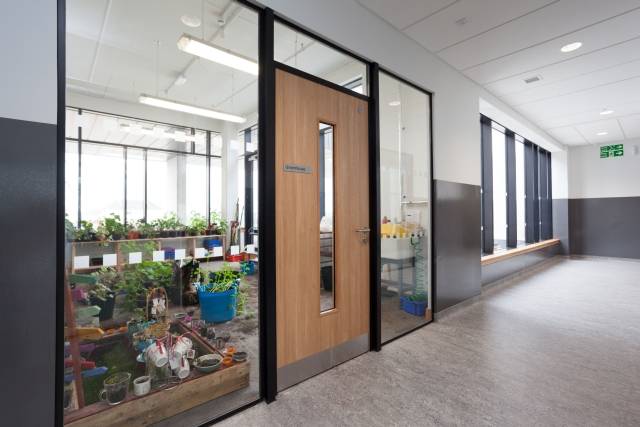

Glazed timber screens available as standalone units or as side screens that connect to Integra doorsets.

Features:

  • Supplied fully assembled with the glass delivered separately for installation on site.
  • Integrated blind system available.
  • Security glass available.
  • Fire rated up to 60 minutes for integrity and insulation.
  • Acoustic rated up 45 dB Rw.
  • Hardwood or softwood framework.
  • Chamfered or square glazing beads.

Certification:

  • BM TRADA Q-Mark.
  • FSC and PEFC chain of custody.
  • NFR, FD30 and FD60 options available.
  • Acoustic rating up to 45 dB Rw sound reduction.

Applications:

  • Education.
  • Workplace.
  • Healthcare.
  • Hospitality.
  • Leisure/ sport.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Features

Supplied fully assembled with the glass delivered separately for installation on site

Integrated blind system available

Security glass available

Fire rated up to 60 minutes for integrity and insulation

Acoustic rated up 45 dB Rw

Hardwood or softwood framework

Chamfered or square glazing beads

Uniclass 2015 Partition panels (Pr_25_71_57_60)
Specification data
Product Reference

Integra Timber Framed Glazed Screen

Size

As drawing

Insert reference.

As schedule

Insert reference.

FireRating

NFR

FD30

FD60

AcousticRating

None

29 dB Rw

30 dB Rw

35 dB Rw

40 dB Rw

45 dB Rw

Frame -
FrameType

SF-32

Solid timber 32 mm section.

SF-44

Solid timber 44 mm section.

FrameMaterial

HL-ABW

Hardwood (American black walnut), matt clear lacquer.

HL-AWA

Hardwood (American white ash), matt clear lacquer.

HL-AWO

Hardwood (American white oak), matt clear lacquer.

HL-C

Hardwood (cherry), matt clear lacquer.

HL-EO

Hardwood (European oak), matt clear lacquer.

HL-M

Hardwood (maple), matt clear lacquer.

HL-SB

Hardwood (steamed beech), matt clear lacquer.

H-P

Sustainable hardwood, primed for site painting.

S-P

Sustainable softwood, primed for site painting.

Special order

Insert hardwood and finish requirements.

Glazing -
Type

IC

Clear insulated glass to suit fire and acoustic performance requirements.

PC

Clear security glass to suit fire, acoustic and security performance requirements.

SC

Clear glass to suit fire and acoustic performance requirements.

Special order

Insert requirement.

Beading

SB-C

Screen glazing bead – chamfered.

SB-F

Screen glazing bead – flush.

Architraves -
Type

ARHL-ABW-4519

Hardwood (American black walnut), matt clear lacquer, 45 x 19 mm.

ARHL-ABW-TBC

Hardwood (American black walnut), matt clear lacquer, size to be confirmed.

ARHL-AWA-4519

Hardwood (American white ash), matt clear lacquer, 45 x 19 mm.

ARHL-AWA-TBC

Hardwood (American white ash), matt clear lacquer, size to be confirmed.

ARHL-AWO-4519

Hardwood (American white oak), matt clear lacquer, 45 x 19 mm.

ARHL-AWO-TBC

Hardwood (American white oak), matt clear lacquer, size to be confirmed.

ARHL-C-4519

Hardwood (cherry), matt clear lacquer, 45 x 19 mm.

ARHL-C-TBC

Hardwood (cherry), matt clear lacquer, size to be confirmed.

ARHL-EO-4519

Hardwood (European oak), matt clear lacquer, 45 x 19 mm.

ARHL-EO-TBC

Hardwood (European oak), matt clear lacquer, size to be confirmed.

ARHL-M-4519

Hardwood (maple), matt clear lacquer, 45 x 19 mm.

ARHL-M-TBC

Hardwood (maple), matt clear lacquer, size to be confirmed.

ARHL-SB-4519

Hardwood (steamed beech), matt clear lacquer, 45 x 19 mm.

ARHL-SB-TBC

Hardwood (steamed beech), matt clear lacquer, size to be confirmed.

ARHL-X-4519

Hardwood and finish to be specified, 45 x 19 mm.

ARHL-X-TBC

Hardwood and finish to be specified, size to be confirmed.

ARH-P-4519

Sustainable hardwood, primed for site painting, 45 x 19 mm.

ARH-P-TBC

Sustainable hardwood, primed for site painting, size to be confirmed.

ARS-P-4519

Sustainable softwood, primed for site painting, 45 x 19 mm.

ARS-P-TBC

Sustainable softwood, primed for site painting, size to be confirmed.

Material

Manufacturer's standard

Special order

Insert requirement.

Size

Manufacturer's standard

Special order

Insert requirement.
