Steel lockable access panel that provides four hours fire resistance for jointless plaster/ plasterboard and masonry walls and partitions.
Suitable for riser, duct, and pod access applications for jointless plasterboard or plaster and masonry walls where maximum performance is required.
Steel lockable access panel that provides four hours fire resistance for jointless plaster/plasterboard and masonry walls and partitions.
Features and benefits:
Insert requirements (structural opening width x height).
K10/115 Metal stud partition system
K10/125 Metal stud partition system
K10/145 Wall lining system (metal studs)
K10/15 Lining on timber
K10/155 Wall lining system (metal studs)
K10/165 Wall lining system (metal framing)
K10/215 Suspended ceiling system
K10/220 Proprietary suspended ceiling system
K10/25 lining on timber . . . . . .
K10/30 Metal stud
K10/430 Access panels
K10/50 Suspended ceiling system on metal framing
Non fire rated (NFR).
1 hour fire rated (1FR).
2 hour fire rated (2FR).
4 hour fire rated (4FR).
The CERTIFIRE third party accreditation scheme ensures correct manufacturing processes are adhered to, and gives assurance of performance, quality, reliability and traceability.
UL certified (UFR).
UL certification available.
Reaction to fire classification
To BS EN 1634-1:2000.
1250 x 3100 mm.
Maximum size. 2 hour rated.
990 x 2390 mm.
Maximum size. 4 hour rated.
Beaded frame (BF).
For installation into unfinished walls . Tape and jointed or plaster skimmed over to give a frameless finish.
Picture frame (PF).
With visible 25 mm architrave for installation into finished walls.
Dutch fold frame (DFF).
Straight edge detail for positioning directly onto a floor and/or into a corner.
Deep plaster frame (DPF).
13 mm deep frame profile for two coat plaster or render finishes.
1.2 mm Zintec steel door leaf.
Can be over painted.
Latch or lock type
3 point budget lock (3PL).
High security lock (3HS).
Full length concealed piano hinge.
Dust gasket and intumescent seals to frame.
4000 Series Riser Door
Single door (SD).
Double door (DD).

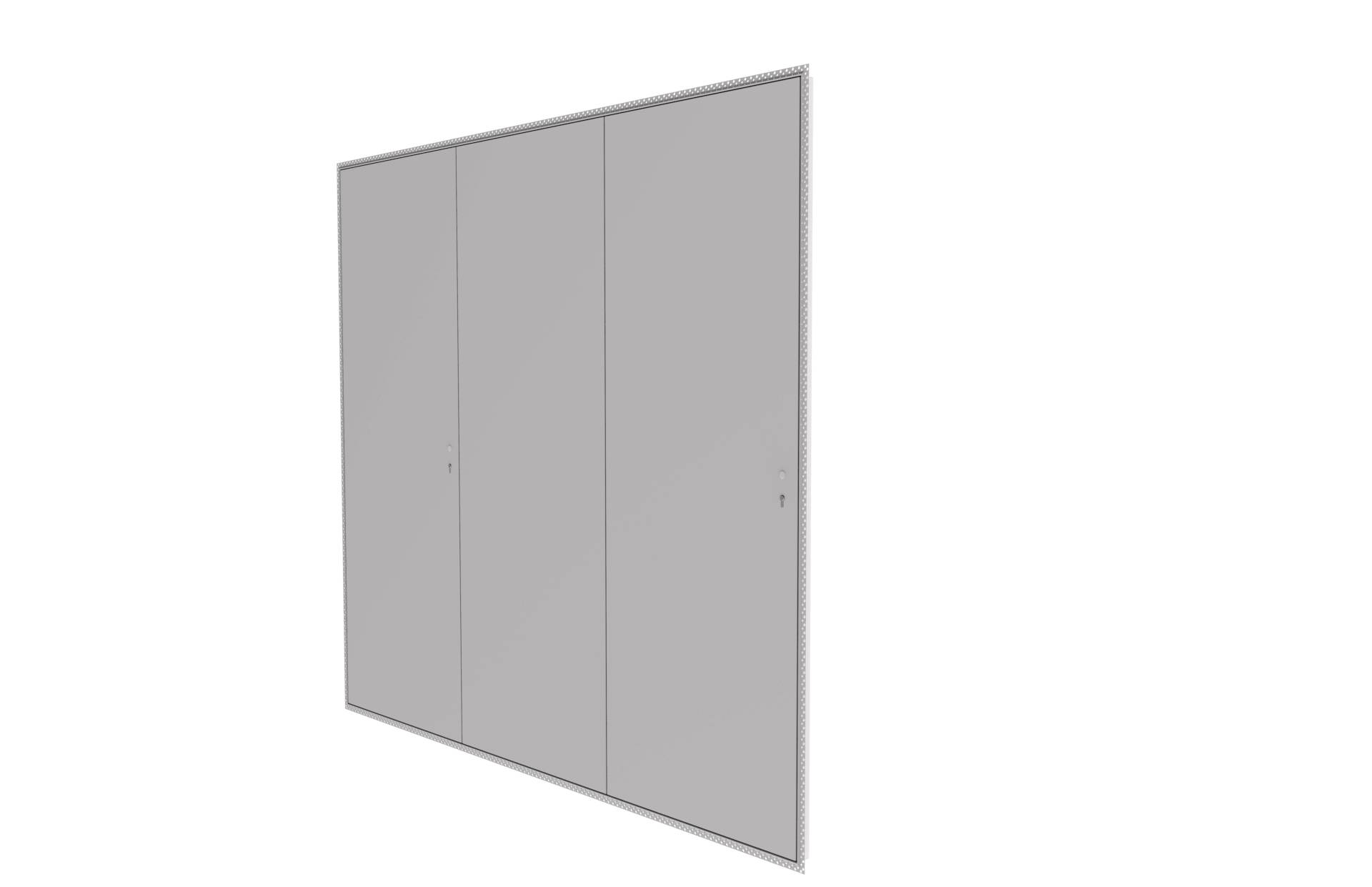

Triple door (3D).
Quad door (4D).
Multiple doors (CA).
To BS EN ISO 140-3.
90 mm deep rebated frame with smoke seals.
