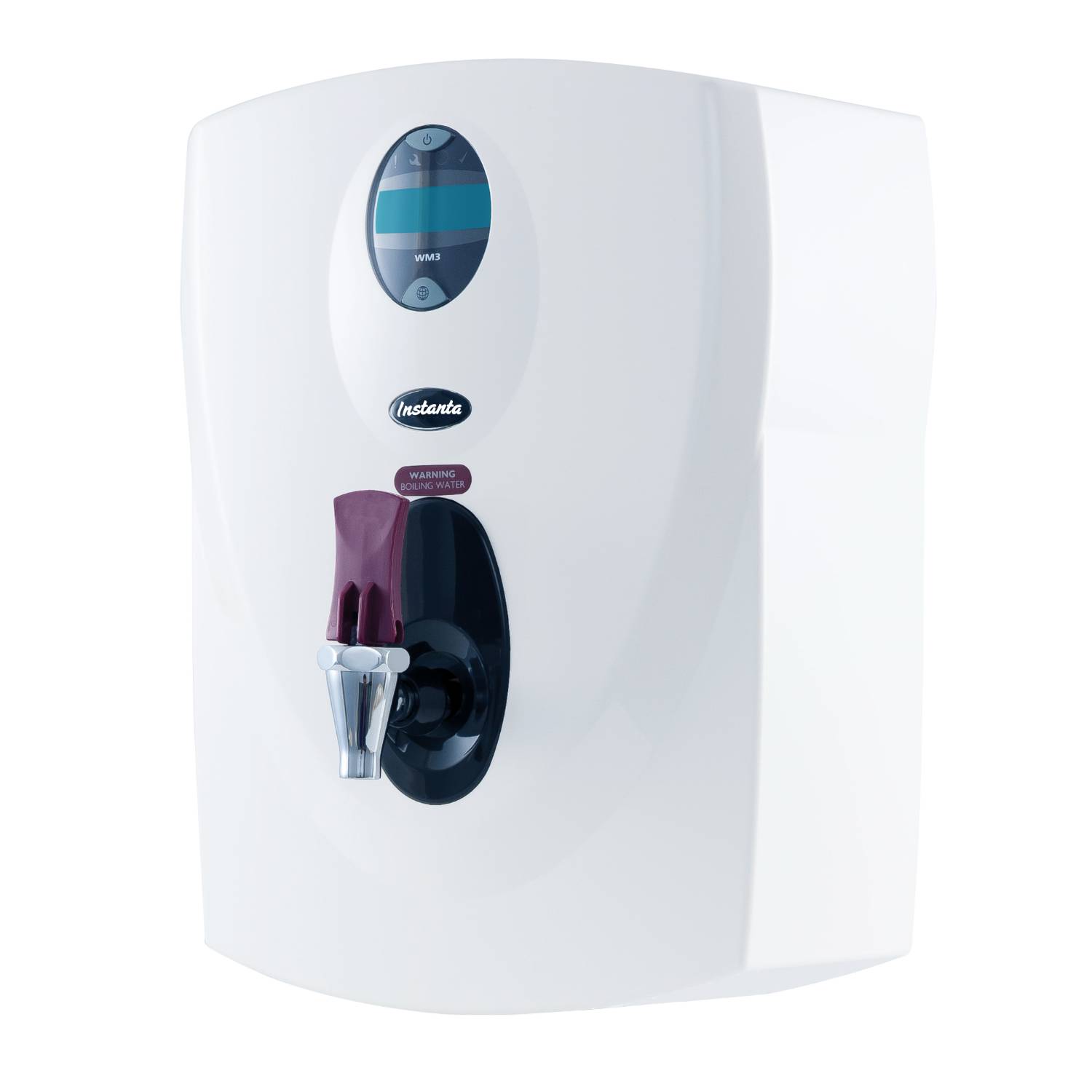

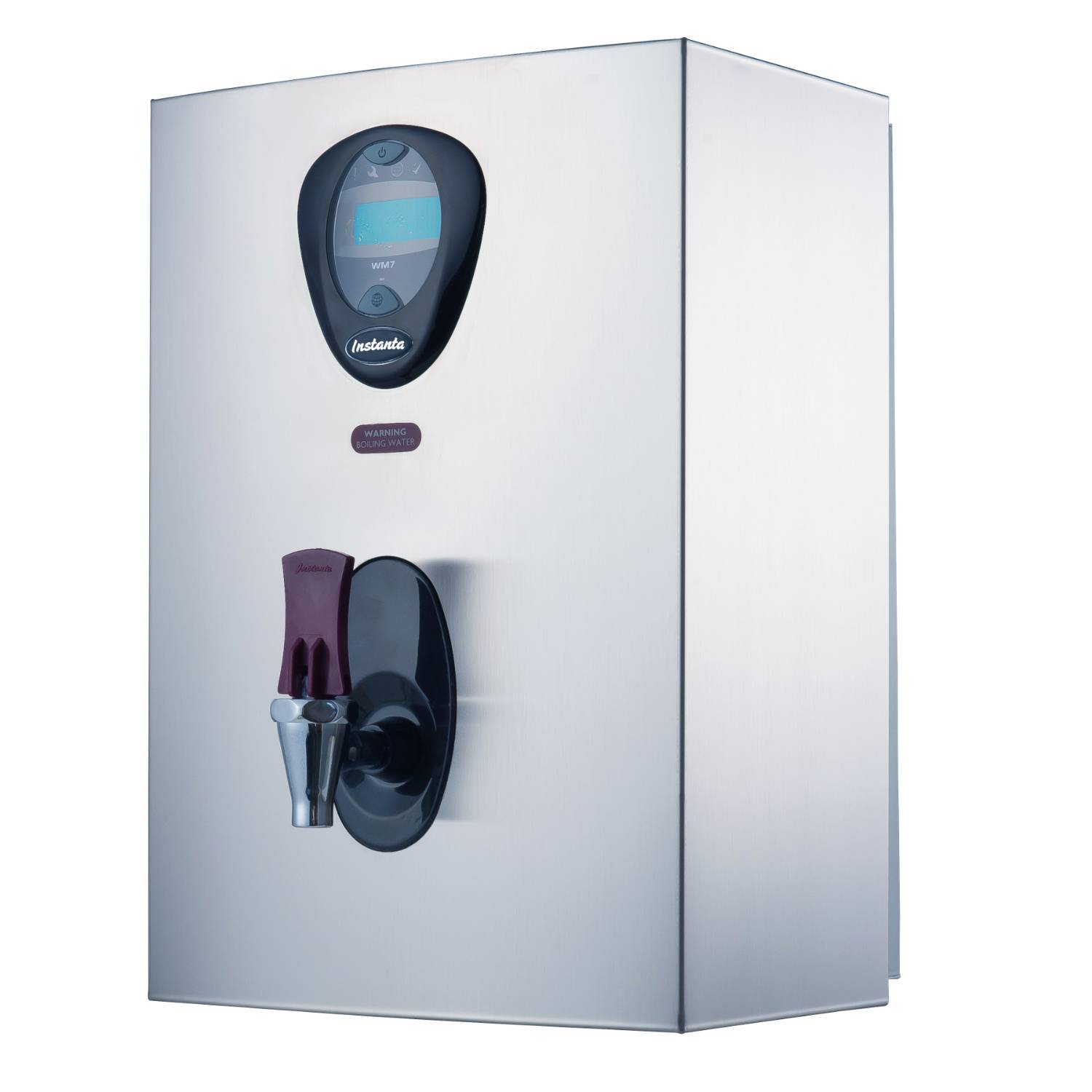

Instanta Sureflow Plus Wall Mounted - Water Dispenser

Name: Instanta Sureflow Plus Wall Mounted - Water Dispenser
Brand: Zip Water
SKU: 5tKv7J2YufU8g5Fww82q7x

Verified by manufacturer 4 months ago

Third party certifications:

Instant boiling water, 3 L tank capacity with auto-fill.

Jump to:

Application

Suitable for commercial applications in catering environments.

Instant boiling water, 3 L tank capacity with auto-fill.

Features and benefits:

Electronic temperature control, programmable between 80-98°C, ensuring every cup is delivered at the required temperature.
Integral seven-day programmable timer.
Energy saving ECO mode supports sustainability and cost reduction.
Comprehensive diagnostics system to make sure your boiler is always performing to the highest standard.
Insulation provides minimal heat loss, saving you money and energy.
Dual safety protection against overfilling and boil dry ensuring user safety.
Easy install.
Long-life Incoloy® elements guarantee longevity.

Color	White
Finish	- Manufacturer guidance White plastic FRABS.
Material	Steel Stainless steel Plastic
Shape	Rectangle
Length	210 mm
Width	332 mm
Height	452 mm
Warranty description	Two year Guidance for specification option: Parts and labour.

Uniclass	Pr_40_70_23_42 Instant boiling and cold water tapsPrimary
CAWS	N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes

Product range	On Wall Boiling

Third-party certification	EMC Tested and Certified to BS standards EN 55014 and EN 61000.
Water	Boiling.
Duty	-
Tank capacity	3 L.
Dimensions	452 x 332 x 210 mm. Guidance for specification option: Packed dimensions: 700 x 590 x 440 mm. Tap protrusion: 90 mm. Manufacturer guidance (height x width x depth) Unit:
Electrical connection	-
Power	3 kW. Guidance for specification option: Electrical supply: Single-phase, N & E (minimum break rating of 13 amp required). Electrical connection: Wire into double-pole fused spare (minimum cable size: 1.5 mm²). Use of an ELCB is recommended.
Voltage	230 V. Guidance for specification option: (50-60 Hz.)
Water inlet	3/4" BSP. 15 mm push-fit.
Safety features	Over-boil and boil-dry protection. Guidance for specification option: 7 day programmable timer. Early warning lime-scale diagnostics (via LCD display).
Components	Tank-baffle plates. Guidance for specification option: Unique design aids heat recovery and reduces steam emissions to atmosphere.

Type:	Wall-mounted. Guidance for specification option: Premium wall mount water boiler.
Weight	7.3 kg (empty); 12.5 kg (full). Guidance for specification option: Packed weight: 11.2 kg.
WaterPressureRange	2–7 bar.
Overflow	15 mm push-fit. Guidance for specification option: (extend if required: pipework to have a continuous fall - no longer than 500 mm), no more than 3 right-angle bends.
Construction	Manufacturer’s standard. Guidance for specification option: Outer fabrication (body) construction: White plastic FRABS. Tank construction: 304 and 316 grade stainless steel. Tank wall thickness: 0.9 mm.
Performance:	Manufacturer’s standard. Guidance for specification option: Water temperature delivered: 96°C (default) – can be adjusted if required. Heat up time to working temperature: 11 minutes (full tank capacity) Output per hour (at default temperature setting): 28 L (higher output per hour if set at lower temperature). Rapid draw-off: 3 L. Recovery per minute: 0.5 L. Stand-by power loss (idle mode): 0.076 kW/h.
