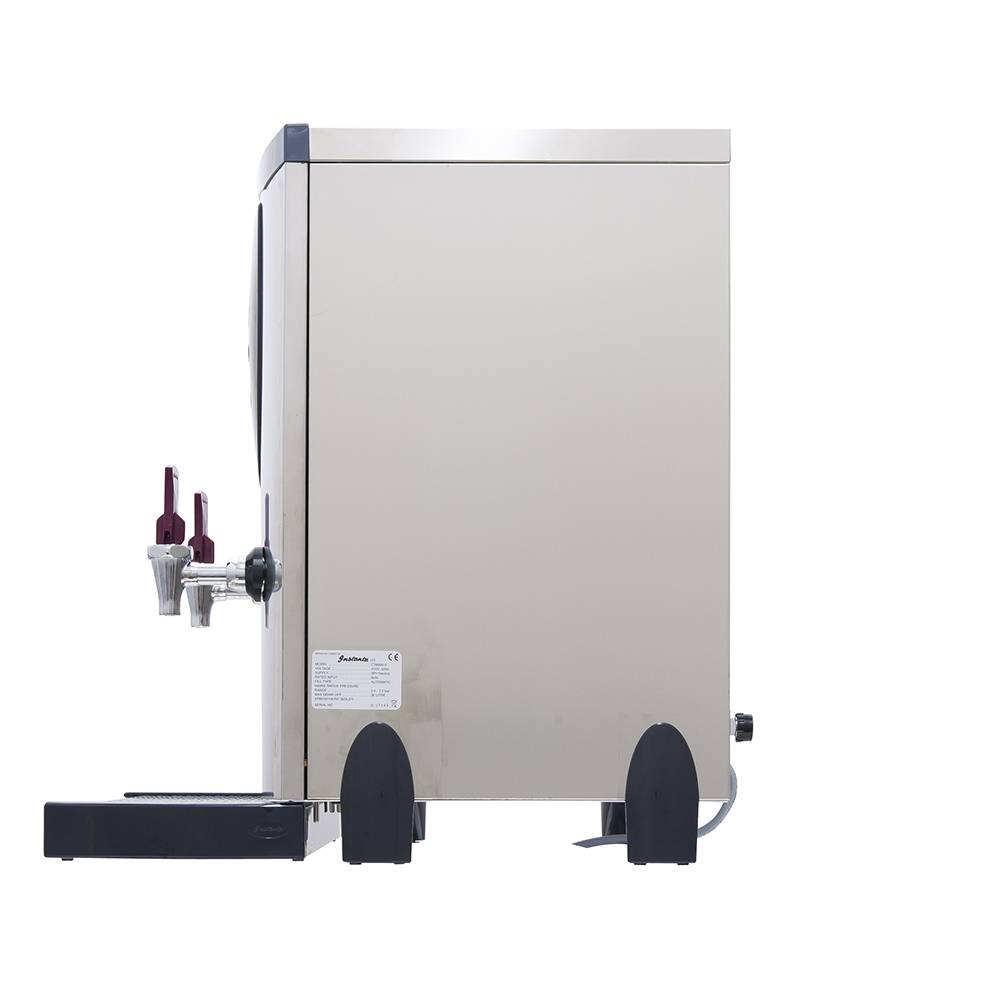

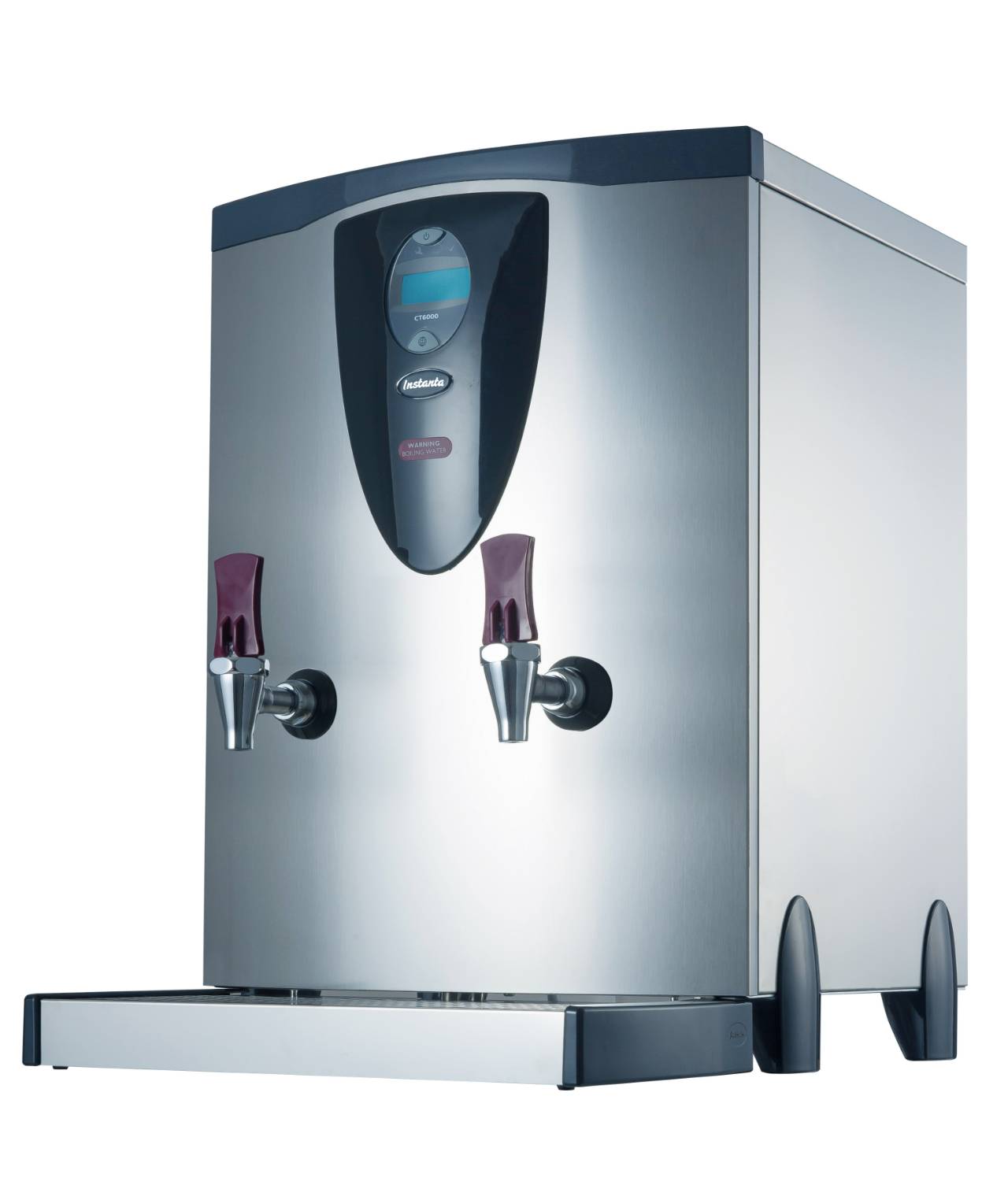

Instanta Sureflow Countertop High Volume - Water Dispenser

Verified by manufacturer 3 months ago

Zip Water Third party certifications:

  • ISO 9001 Quality Management

    Certificate type

  • NSF International

    NSF International

    Certificate type

36 L, twin tap, water boiler.

Jump to:
+44 (0)345 6 005 005 Website

Application

Suitable for commercial applications in catering environments.

Description

High volume boiling water.


Features and benefits:

  • Integral seven-day programmable timer.
  • Energy saving ECO mode supports sustainability and cost reduction.
  • Adjustable temperature programmable between 80-98°C.
  • Comprehensive diagnostics system to make sure the boiler is always performing to the highest standard.
  • Stainless steel drip tray included.
  • Dual safety protection against overfilling and boil dry to ensure user safety.
  • Long-life Incoloy® elements to guarantee longevity.

General information

Color

Silver

Finish

Brushed

Polished

Manufacturer guidance

Superbrush polished stainless steel.

Material

Steel

Stainless steel

Shape

Rectangle

Length

555 mm

Width

440 mm

Height

608 mm

Warranty description

Two year

Guidance for specification option:

Parts and labour.

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

Product range

Counter Top Water Boiler and Chiller

Specification data - Instant boiling and cold water taps

Third-party certification

EMC tested and certified (EN 55014 and EN 61000).

Guidance for specification option:

  • Electrical Safety Tested and Certified (self-certified) to standard BS EN 60335-1 and 2.
  • WRAS approved.


Water

Boiling.

Duty

-

Tank capacity

36 L.

Dimensions

608 x 440 x 555 mm.

Guidance for specification option:

  • Packed dimensions: 720 x 550 x 610 mm.
  • Tap clearance: 165 mm.

Manufacturer guidance

(Height x width x depth) (Unit):

Electrical connection

-

Power

9 kW.

Guidance for specification option:

  • Electrical supply: 3-phase, N & E.
  • Electrical installation: 3-phase, N & E (13 A per phase).
  • Fitted cable length: 1.7 m.

Voltage

400 V.

Guidance for specification option:

(50-60 Hz.)

Water inlet

3/4" BSP.

Safety features

Over-boil and boil-dry protection.

Components

Tank-baffle plates.

Guidance for specification option:

Unique design aids heat recovery and reduces steam emissions to atmosphere.

Type:

Countertop.

Guidance for specification option:

Premium range.

Weight

21.6 kg (empty); 53 kg (full).

Guidance for specification option:

Packed weight: 25.8 kg.

WaterPressureRange

2–7 bar.

Guidance for specification option:

(28-100 psi.)

Overflow

Front (via drip-tray).

Rear (1/2" BSP - 15 mm).

Construction

Manufacturer’s standard.

Guidance for specification option:

  • Outer fabrication (body) construction: 304 grade stainless steel (Superbrush polish).
  • Tank construction: 304 and 316 grade stainless steel.
  • Tank wall thickness: 0.9 mm.
  • Drip-tray: 304 grade stainless steel – (Mirror polish).

Performance:

Manufacturer’s standard.

Guidance for specification option:

  • Water temperature delivered: 96°C (default) – can be adjusted if required.
  • Heat up time to working temperature: 23 minutes (to full tank capacity).
  • Output per hour (at default temperature setting): 85 L (higher output per hour if set at lower temperature).
  • Rapid draw-off: 36 L.
  • Recovery per minute: 1.4 L.
  • Stand-by power loss (idle mode): 0.17 kW/h.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Instanta ISO 9001:2015

NSF International

NSF International

NSF REG 4

Literature

Instanta Commercial Product Guide January 2024

Instanta Commercial Product Guide January 2024
