Description

Wavin offers inspection chambers in 315, 450 and 600 mm diameters, approved to BS EN 13598-2 for deep applications. They are suitable for use in both adoptable and non-adoptable applications to a maximum depth of 3 m, depending on the chamber and the application. There is also a 200 mm diameter inspection chamber approved to BS EN 13598-1.

General information
Specification data
Product Reference

Inspection Chambers

Type

Insert product reference from 'Options' below.

Accessories

None

20NE015

IC range 200 square cover and frame.

30NE200

Chamber base to shaft seal.

30NE203

315 inspection chamber spare cover.

30NE205

Screws.

40NE930

Access cap, 450 mm.

60NE930

Access cap, 600 mm.

NE950

Connector kit, 110 mm diameter.

NE960

Connector kit, 160 mm diameter.

Product Options

Type:

- Range 200 IC:

  • 20NE002 – Equal inspection chamber base 110 mm.
  • 20NE015 – IC square cover and frame.

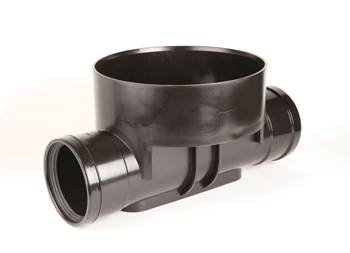

  • 24NE300 – Equal inspection chamber base 110 mm.
  • 26NE300 – Equal inspection chamber base 160 mm.

- Range 315 IC:

  • 30NE002 – Inspection chamber shaft 315 mm, 2 m.
  • 30NE015 – Inspection chamber square cover and frame.
  • 30NE200 – Inspection chamber base to shaft seal.
  • 34NE300 – Equal inspection chamber base 110 mm.
  • 34NE301 – Equal inspection chamber base, left entry branch 110 mm.
  • 34NE302 – Equal inspection chamber base, right entry branch 110 mm.

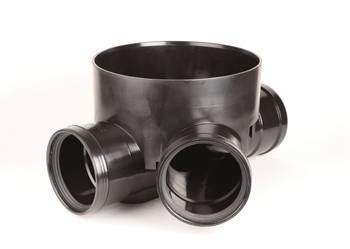

  • 34NE303 – Equal inspection chamber base, two entry branches 110 mm.
  • 36NE300 – Equal inspection chamber base 160 mm.
  • 36NE301 – Equal inspection chamber base, left entry branch 160 mm.
  • 36NE302 – Equal inspection chamber base, right entry branch 160 mm.
  • 36NE303 – Equal inspection chamber base, two entry branches 160 mm.

- Range 450:

  • 40NE300 – Inspection chamber shaft 450 mm.
  • 44NE300 – Equal inspection chamber base 110 mm.
  • 44NE304 – Equal inspection chamber base, left entry branch 110 mm.
  • 44NE305 – Equal inspection chamber base, right entry branch 110 mm.
  • 44NE306 – Equal inspection chamber base, two entry branches 110 mm.
  • 46NE300 – Equal inspection chamber base 160 mm.
  • 46NE307 – Equal inspection chamber base, left entry branch 160 mm.
  • 46NE308 – Equal inspection chamber base, left entry branch 160 mm.
  • 46NE309 – Equal inspection chamber base, two entry branches 160 mm.

- Range 600 IC:

  • 60NE003 – Plain ended inspection chamber shaft 600 mm.
  • 612NE300 – Equal chamber base, 300 mm.
  • 612NE314 – Equal chamber base, bent 90º channel 300 mm.
  • 612NE315 – Equal chamber base, bent 30º channel 300 mm.
  • 612NE316 – Equal inspection chamber base, straight channel 300 mm.
  • 66NE300 – Equal inspection chamber base 150 mm.
  • 66NE314 – Equal inspection chamber base, bent 90° channel 150 mm.
  • 66NE315 – Equal chamber base, bent 30º channel 150 mm.
  • 66NE316 – Equal inspection chamber base, straight channel 150 mm.
  • 69NE300 – Equal inspection chamber base 225 mm.
  • 69NE314 – Equal chamber base, bent 90º channel 225 mm.
  • 69NE315 – Equal chamber base, bent 30º channel 225 mm.
  • 69NE316 – Equal inspection chamber base, straight channel 225 mm.
