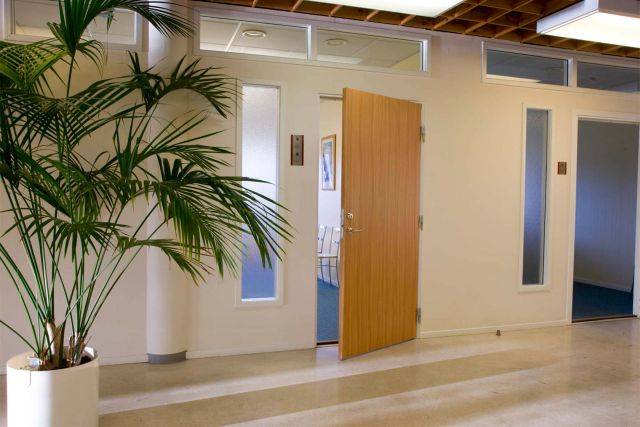

INNA-DOR 120 Single - Internal Steel Doorset

Single leaf, latched.

Robust UK Ltd Variant:

Stylish, contemporary and durable internal steel single doorset with up to two hours' fire resistance.

Jump to:
+44 (0)1782 592900 Website

Application

  • For internal and external applications in all forms of masonry, concrete and flexible stud wall (coldwall style) constructions.
  • When using timber or steel stud walls, the client must ensure they have adequate evidence that the wall can support steel fire doors under fire conditions.
  • 120 and 240 fire rated stud wall constructions should have the walls’ reveal face protected by a fire resting board to protect the wall construction.

Description

Single leaf, single swing doorset made from corrosion resistant Magnelis© sheets and rigid core.


Features and benefits:

  • Stylish, contemporary and durable internal steel doorset.
  • Designed to protect personnel and property from the spread of flames and smoke for up to two hours (120 minutes).
  • It is tested to BS 476-20, BS 476-22 and BS EN 1634.

General information

Finish

Powder-coated

Polyester.

Woodgrain

Unfinished

Material

Steel

Corrosion resistant Magnelis© sheets and rigid core.

Shape

Rectangle

Width

1370 mm

1300 mm

Height

2830 mm

2500 mm

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Carbon steel doorsets

Configuration

Single leaf, latched.

Doorset size

1370 x 2830 mm.

(w x h) or 4 m².

Performance

-

Fire resistance

-

Integrity

To BS 476-20/2 and BS EN 1634, 120 minutes.

Frame

-

Material

Magnelis©.

1.5 mm thick Magnelis© sheets, screw and tab construction.

Threshold

Not required.

5 mm aluminium driveable.

DDA compliant.

15 mm aluminium.

DDA compliant.

15 mm steel pressed rebated.

Special order.

Finish

-

Coating

[-] - Insert requirements.

Texture

Manufacturer's standard.

Colour

Insert requirements.

-

Installation fasteners

Consult manufacturer for options and insert requirements.

-

Door leaf

-

Thickness

54 mm.

Core

Mineral wool.

Self-supporting resin-impregnated honeycomb.

Material

Magnelis©.

Non-welded, manufactured from two 1.2 mm thick corrosion resistant Magnelis© sheets.

Glazing

-

Type

Not required.

8 mm thick Firelite Safety.

Special order.

Finish

-

Coating

Polyester powder coated, standard colour.

Insert colour requirement.

Polyester powder coated, non-standard colour.

Insert colour requirement.

PVC laminate.

Insert colour requirement.

Stainless steel, brushed.

Stainless steel, patterned.

Stainless steel, polished.

Unfinished.

For site finishing.

Woodgrain PVC laminate.

Insert requirement.

Texture

Manufacturer's standard.

External colour

Consult manufacturer for options and insert requirements.

-

Internal colour

As External.

Other.

Consult manufacturer for options and insert requirements.

Film thickness (minimum)

Manufacturer's standard.

Hardware

[-] - Insert requirements.

Accessories

[-] - Insert requirements.

Profile

Type A.

100 mm depth.

Type B.

95 mm depth.

Type C.

95 mm depth.

Type D.

145 mm depth.

Vision panels

Not required.

254 x 254 mm.

254 x 559 mm.

254 x 762 mm.

254 x 1219 mm.

Show more

Louvre panels

Not required.

457 x 457 mm lower.

BS 476 and BS EN1634 compliant.

457 x 457 mm upper.

BS 476 compliant.

457 x 457 mm lower and upper.

BS 476 compliant.

610 x 610 mm lower.

BS 476 and BS EN1634 compliant.

Show more

Blade material

Louvre panels.

Not required.

Galvanized steel, 18 g.

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Configuration

Side / over panels.

Not required.

As drawing.

Insert reference.

As schedule.

Insert reference.

Type

Side / over panels.

Not required.

Fixed.

Hinged.

Construction

Side / over panels.

Not required.

Glazed, double glazed Vetroflam.

6 mm Vetroflam/ 6 mm spacer/ 6 mm Vetroflam.

Glazed, 8 mm thick Firelite Safety.

Louvred.

Solid.

Environmental information

Contains Red List materials

Yes

Wood grain laminate contain PVC.

Country of material origin

United Kingdom

Recyclability

98%

Recycled content

New materials only.

-
