Infrared Heater - QXD / QXDE
Description

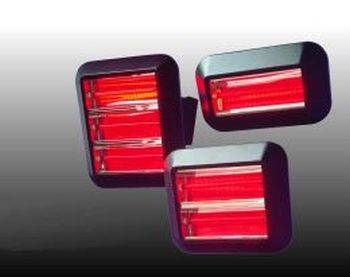

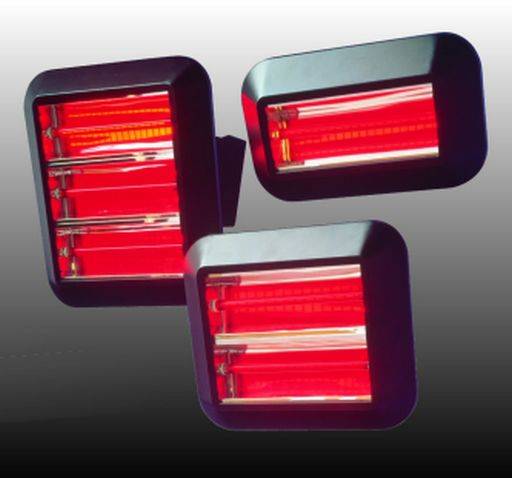

QXD Quartzray heaters provide short wave infra-red energy at temperatures approaching 2,200°C. The heaters are well suited for zone heating or where building insulation is limited.

The QXD range of radiant heaters are designed to provide local radiant heating in draughty and/or hard to heat areas. They are not intended to provide a complete solution to space heating and thermal comfort.

Features and benefits:

  • Instant heat, no waiting around or pre-heating.
  • Highly efficient, heats people and objects not air.
  • Silent operation with low running costs.
  • Supplied with an adjustable mounting bracket.
  • Ruby red glow lamps.
  • Choice of 1.5 kW, 3 kW or 4.5 kW models.
  • Can be used with the Dimplex passive infra-red detector switch DX4131.
  • CE and BEAB certified.

Supplied with a two year warranty.

General information

Size

442x310x255mm

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

QXD

Type

QXD1500

Height: 256 mm. Heat output: 1.5 W. Number of elements: One.

QXD3000

Height: 380 mm. Heat output: 3 W. Number of elements: Two.

QXD4500

Height: 506 mm. Heat output: 4.5 W. Number of elements: Three.

Standard product features

Length:

440 mm.

Colour/ Finish:

High temperature matt black.

Material:

Body: Powder coated steel.

Technical characteristics:

  • Supply voltage: 230 V (1 PN). Except for QXD4500: 230 V (1 PN)/ 415 V (3 PN).
  • Lamps: Ruby sleeved halogen lamp with tungsten element.
  • Reflector: Specular quality electrochemically brightened aluminium (purity +99%).
  • Recommended height: 2.5 m for QXD1500, 3.5 m for QXD3000 and 4.5 m for QXD4500 (Minimum height: 2.1, 2.5 and 3 m respectively). Consult literature for spread and throw chart.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2015 1 1.3
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
