An infrared urinal flush control (IRC) valve that automatically manages the supply of water to a urinal cistern.

Jump to:
+44 (0)118 969 1611 www.cistermiser.co.uk

Application

Electronic IRC for use with an urinal flushing cistern, mains and / or battery operated.

Description

The Infrared Control Valve IRC® automatically manages the supply of water to a urinal cistern. The unit employs motion-sensing infrared to control valve operation and reduce water consumption by over 80%. The PIR sensor detects movement and activates the solenoid valve, allowing water into a urinal cistern.


Features and benefits:

  • The ideal valve for control of cistern-fed urinals.
  • Normal or Economy Mode water-saving options.
  • Ensures compliance with the Water Regulations.
  • Battery or mains powered (no external transformer required) - IRC® can use batteries as back-up to mains supply if required.
  • Pipe, wall or ceiling mounted sensor - surface mounted or recessed.
  • Can be concealed to reduce the risk of vandalism.
  • Visible LED status indicator and low battery alert.
  • Reduces water consumption and washroom odours.
  • Low installation and maintenance costs.
  • Typical pay-back of installed cost in 7—9 months.


How the product works:

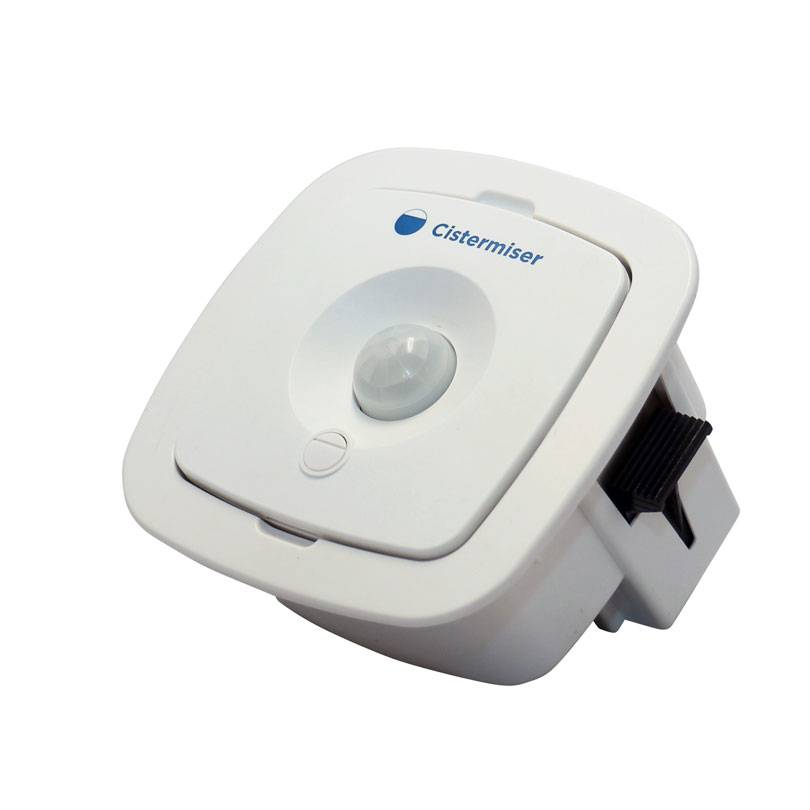

  • The IRC® urinal flush control consists of a solenoid valve and the infrared sensor module.
  • When the IRC® detects movement in the washroom, a pulse from the sensor opens the normally closed solenoid valve and water flows to the cistern. The LED flashes to show the valve is open.
  • In Normal mode, the IRC® operates with a 30-minute cycle. This means that the cistern will flush a maximum of two times per hour.
  • In Economy mode, an additional delay of 15 minutes is provided before the Normal mode operating cycle is activated, to save even more water. This means that the cistern will flush a maximum of 2 times in 90 minutes.
  • IRC® is a registered trademark of Cistermiser Ltd.

General information

Color

White

Finish

Matt

Material

Plastic

WarrantyDescription

One year

Three year extendable warranty available.

Size

85 x 85 x 68 mm

W x H x D.

Including sensor lens.

Uniclass 2015

Pr_40_20_06/355 Urinal flushing valvesPrimary

CAWS

N13/315 Urinals and auto-flushing cisterns

S92/80 Flushing

S92/810 Flushing

Specification data - Urinal flushing valves

RangeAngle

125°.

Infrared detection, spanning 9.2 m at the floor level with a maximum height detection range of 2.5 m.

Voltage

6 Vdc.

Nominal 54uA, peak 750 ma for 50 ms.

Mains

230 V.

+/- 10% AC 50 hz, 20 mA.

Battery

6 V.

Latching valve, UK WRAS approved. One valve per sensor unit.

Pressure

0.1–6 bar.

Integral, slow-fill flow regulator. If supply pressure is above 6 bar, fit a pressure reducing valve.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

3

2.1
IFC
-

3

2.1
Download now from NBS National BIM Library
