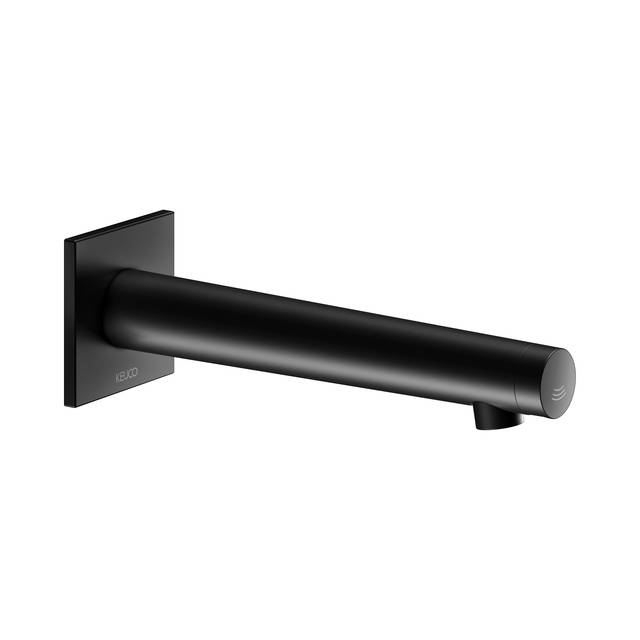

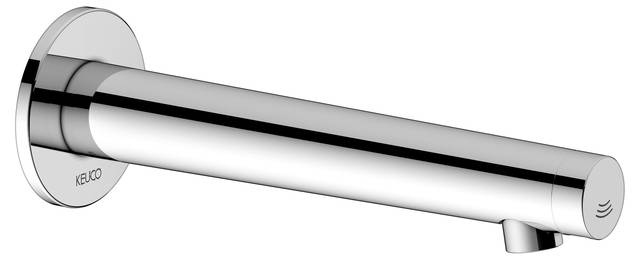

Infrared Basin Mixer Tap - Sensor Tap - IXMO (wall mounted) - Sensor tap
Verified by manufacturer 1 month ago
59517011101
59517011101
Infrared wall-mounted mixer tap (with battery-powered option).
Application
For bathtub or washbasin applications in private or public facilities.
Description
The IXMO concept enlarges scope for maximum design freedom. With the IXMO modules in their small and uniform dimensions, a variety of impressive installation types can be realized.
The minimalist elegance of IXMO is complemented by the slender decor discs. Because they are available as either round or square model, IXMO can be combined with any other Keuco line.
Even if you would like to combine a spout system with a single-lever mixer on your bathtub, thanks to a reduction to only a few multifunctional modules, IXMO always provides for a geometrically stimulating appearance of clarity around the bathtub. With their lightweight form and clear linearity, the modules harmonize happily with a variety of furnishing styles.
Features and benefits:
- Concealed.
- DN 15.
- Optional round or square decorative disc.
- Single hole installation.
- Infrared sensor.
- Manual water-stop for cleaning.
- Cartridge with ceramic discs.
- Aerator M 20x1.
- Pressure hoses 435 mm.
- Optional adjustable hygiene flush (12/24 h).
- Manual water-stop for cleaning capable from under counter control box.
- G 3/8 inch.
- Restricted flow rate reduced to 5 L/min.
- Suitable for instantaneous water heaters.
- Power supply: Mains connection via 6 V plug-in power supply.
- Lifespan approx. three years.
Finish set consisting of:
- Wall outlet including sensors.
- Under-counter control box.
- Plug-in power supply.
General information
Color | Silver Black |
Finish | Chrome Matt |
Material | Brass |
Shape | Circle Square |
Warranty description | Five year |
Uniclass | |
CAWS | N13/355 Baths N13/35 Baths N13/30 Washbasins N13/335 Washbasins |
Specification data - Thermostatic mixer taps
Form | Automatic action thermostatic mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 5 L/min. |
Integral accessories | Concealed wall outlet - flexible corrugated cable conduit pipe (1200 mm), and wall mounted box (68 mm diameter) |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
KEUCO IXMO Showering and Taps 2022
