Infrared Aluminium Heaters - Infrared Heating Panel

Verified by manufacturer 2 months ago

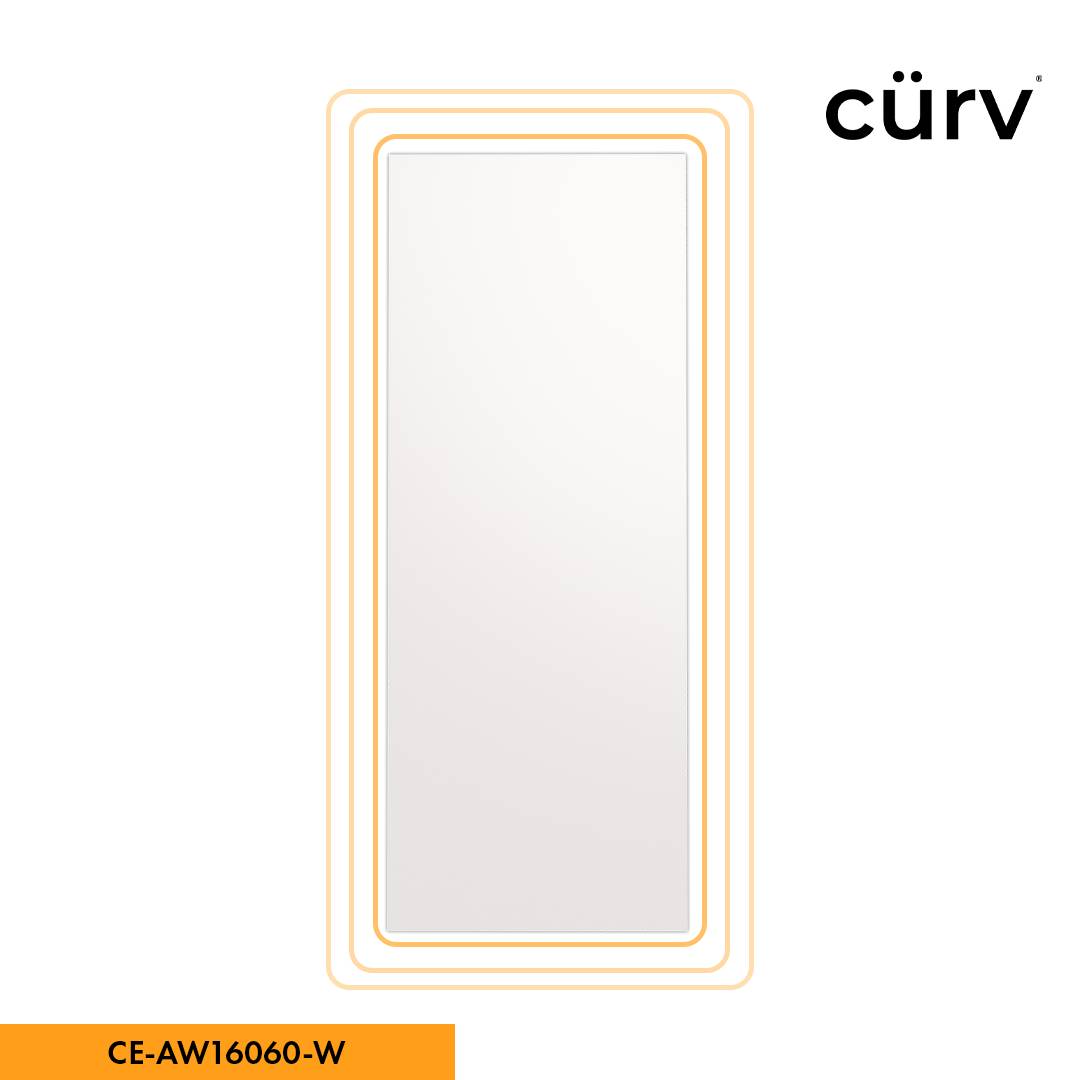

1100 W Infrared Aluminium Heater [CE-AW16060-W]

Cürv360 Variant:

Aluminium infrared heating panel.

Jump to:
BOS
+44 0800 061 2145 Website

Application

Wall or ceiling mountable infrared panel heating.

Description

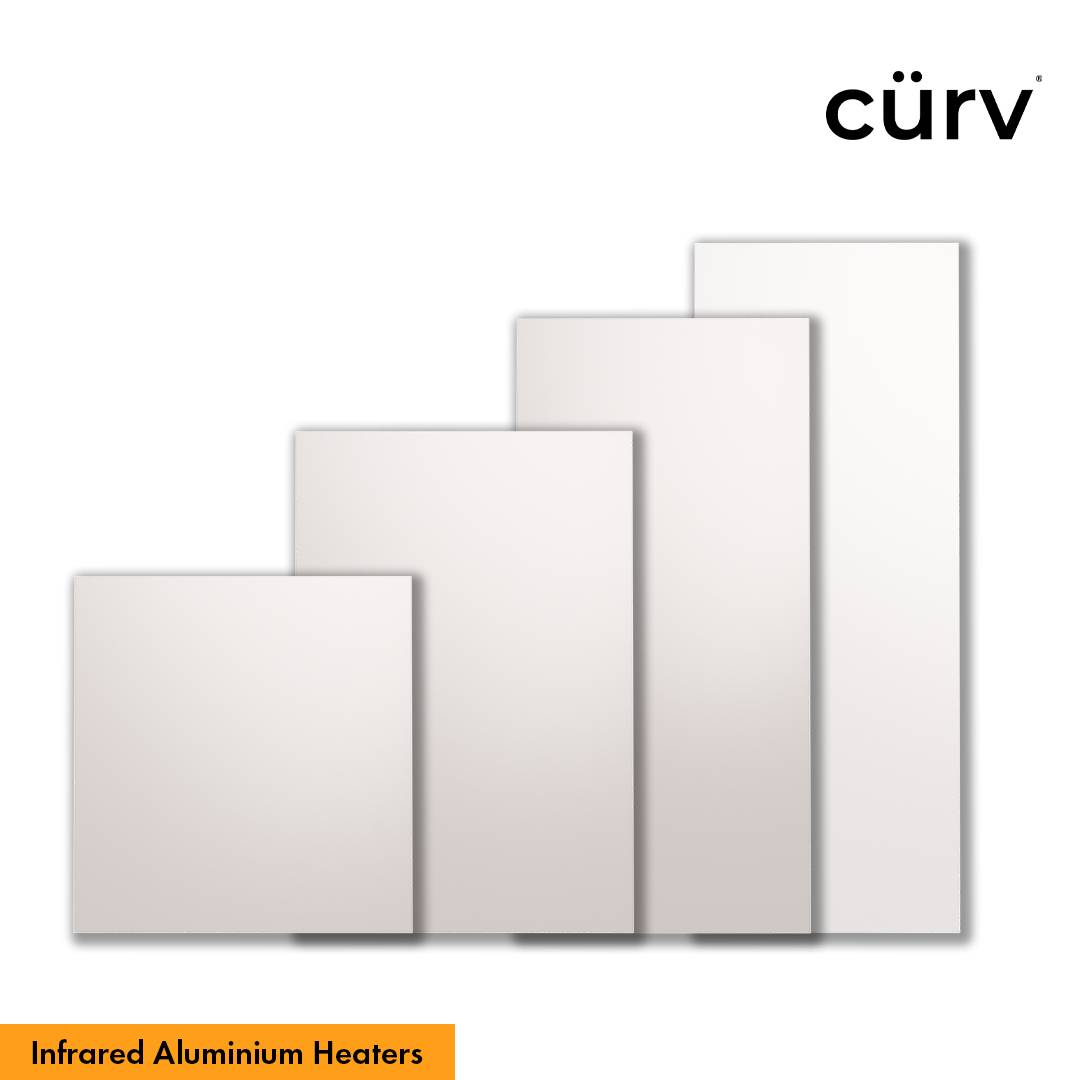

Sleek slimline Aluminium Infrared Heaters are versatile and lightweight, allowing them to be either ceiling, wall mounted or installed in a suspended ceiling.


Infrared heaters work by emitting infrared radiation which directly heats surfaces, objects and people in the room, rather than heating the air like traditional convection heaters. Heat is not wasted through draughts and air moving up to the ceiling where the heat is not needed, but instead, keeps a steadier thermal mass. This is a more natural, efficient and targeted way of heating spaces leading to potential energy savings.


Features and benefits:

  • Heats any space while saving space.
  • Minimalist aesthetic.
  • Smart App control - control your heating from anywhere.
  • Wall or ceiling mountable.
  • Low power consumption with silent, economical, instant heat.
  • Lightweight aluminium design.
  • Low operating cost.
  • Quick and easy installation.
  • Fast heating.
  • High efficiency.
  • Low maintenance costs.
  • Maximum Heating Area: 13.33 m³ to 36.67m³
  • Cürv smart wireless thermostat included.
  • Cürv smart app control.
  • Designed in the UK.
  • Room by room smart zone control.
  • Multiple settings with eco mode.
  • Programmable 7 day control.
  • Built in cost monitoring.
  • Frost protection / holiday mode.
  • Child lock feature (safe surfaces temperature of 43°c).
  • Solid state element
  • Override control
  • Fixing kit included
  • TUV, GS Tested.
  • UKCA and CE marked.

General information

Color

White

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

595 mm

915 mm

1195 mm

1600 mm

Width

595 mm

620 mm

Warranty description

15 year

Uniclass

Pr_70_60_36_71 Radiant panelsPrimary
Pr_70_60_36_74 Room heaters

CAWS

V90/590 Equipment

Specification data - Radiant panels

Radiant panels type

Wall mounted.

Ceiling mounted.

Output

1100 W.

Finish

Aluminium, Ocean White.

Voltage

220–240 V a.c.

Current

Resistive, 3 A (maximum).

Ingress protection

IP44.

WiFi

WiFi 802.11 b/g/n. 2.4 GHz.

TemperatureRange

Adjustable plate temperature range: 75–100°C.

Size:

620 x 1600 mm.

Weight

21.3 kg (gross).

Sustainability data

Material

Aluminium

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Aluminium Infrared Heating Panel 595 x 595 mm

Aluminium Infrared Heating Panel 595 x 595 mm

Aluminium Infrared Heating Panel 915 x 595 mm

Aluminium Infrared Heating Panel 915 x 595 mm

Aluminium Infrared Heating Panel 1195 x 595 mm

Aluminium Infrared Heating Panel 1195 x 595 mm

Aluminium Infrared Heating Panel 1600 x 620 mm

Aluminium Infrared Heating Panel 1600 x 620 mm
