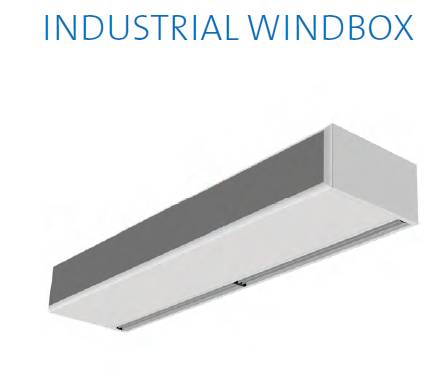

Industrial Windbox Air Curtain
L 1000 A

Name: Industrial Windbox Air Curtain
Brand: JS Air Curtains
SKU: pFga6sDTyPtvqntkZ5y4fm

A horizontal or vertical industrial air curtain.

Jump to:

Application

Suitable for use in warehouse and despatch area entrances up to eight metres high.

A horizontal or vertical industrial air curtain with powerful air and heating outputs.

Features and benefits:

Adjustable aerofoil shaped outlet vanes can be angled to provide the optimum seal across an entrance.
Incorporates low noise centrifugal double inlet fans driven by an external rotor motor with built-in thermal protection.
A perforated inlet grille acts as an air filter to prevent debris entering and removes the need for an internal filter.
Makes internal temperature control more practical, as heat loss through wide open doors is significantly reduced.
A standard manual controller, ten metres of control cable and an IR handheld remote are included. Other control options available include the Clever controller or the BMS interface.
Tested to AMCA 220-05.

Shape	Rectangle
Color Any RAL colour available. Consult manufacturer and insert requirements.	White As standard (RAL9016).
Material	Steel
Size	1000 x 700 x 450 mm 1500 x 700 x 450 mm 2000 x 700 x 450 mm 2500 x 700 x 450 mm 3000 x 700 x 450 mm

Uniclass	Pr_70_60_36_02 Air curtainsPrimary

Heating method	Air.
Arrangement	Horizontal, vertical.
Output	1.04 kW.
Air volume	4000 m³/h.
Mounting height	5 m.
Casing finish	Manufacturers standard.
Accessories	Not required. Clever controller. BMS interface.
