Industrial Door Operator

GIGAroll - 018.140

SOMMER DOCO Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Operator systems for industrial doors.

Jump to:
+44(0)1904 608787 www.sommer.eu

Application

For use with all types of roller shutters, sectional doors and fast action doors.

Description

230–400 V operator systems for industrial doors.


Available in three main variations:

GIGAroll:

Roller door operator with a powerful gearing system combined with advanced motor technology.

GIGAsedo:

Sectional door operator with optional integrated dead man's switch. It has a smooth operation, high power and long service life.

GIGAspeed:

Operator system for high-speed foil doors, providing efficiency in a compact design. This system provides flexible application options.


Features and benefits:

  • Highly flexible: An easy-to-program control unit that is designed for all applications and requirements.
  • Reliable: The gearing technology guarantees a long service life.
  • Customer-specific adjustments: Numerous possible combinations combined with the controlling technology and multiple accessories meet any requirements.
  • Flexible system: The standard electronic limit switch system can be set using the integrated control unit by using any conventional triplex sensing device.
  • Customized settings: The basic settings in the system can be changed to suit individual project requirements.
  • Smooth-running and long-lasting: The electric motor ensures long life and a low-vibration and low-noise operation in all assembly positions.
  • Emergency release in the event of power failure: In the event of a power failure, the door can still be opened and closed.

General information

WarrantyDescription

Five-years

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

L20/615 Sectional overhead doors

Product range

Door and Gate Operators

Specification data - Roller shutters Enhanced data

Operation

-

Mode

Automatic.

Execution

Installing hardware.

Product Reference

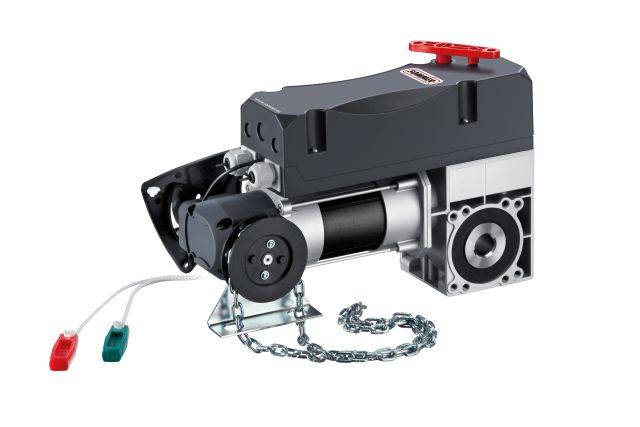

GIGAroll - 018.140

For roller doors, 18 rpm output speed, 140 Nm output torque.

Emergency release

Emergency hand chain and emergency hand crank.

Motor

Performance.

0.55 kW.

Operation

Single phase.

Three phase.

Operating voltage

230 V.

Single phase.

230–400 V.

Three phase.

Frequency

50 Hz.

Operating time

S3–60%.

Motor operating time.

Ingress protection (IP) rating

IP54.

Switch

Limit switch range.

14.

Third party certifications

  • TÜV NORD 'Type-tested' certification of voluntary commitment to security which exceeds the CE conformity test
