Description

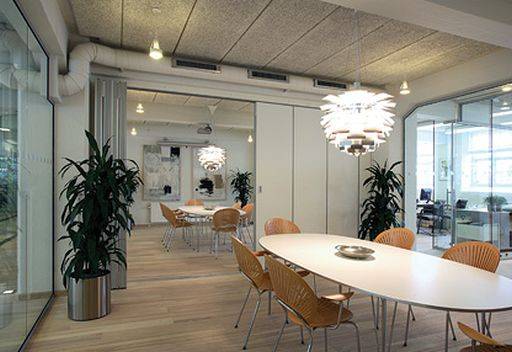

Provides the perfect solution when a flexible working space is paramount. Sound reduction: 52 dB (maximum) is available, which makes Deko FV particularly suitable for meeting and conference rooms as well as schools and public buildings. Size and number of modules are calculated according to individual requirements.

Features:

  • Modules available top hung or with a floor track.
  • Individual surface finishes available.
  • Surfaces easy to clean.
  • Easy to operate.
  • Built-in door module.

General information
Specification data
Product Reference

Deko FV

Type

FV 41

Sound Insulation: 41 dB (R'w).

FV 44

Sound Insulation: 44 dB (R'w).

FV 47

Sound Insulation: 47 dB (R'w).

FV 49

Sound Insulation: 49 dB (R'w).

FV 50

Sound Insulation: 50 dB (R'w).

FV 52

Sound Insulation: 52 dB (R'w).

Fixing

Floor track

Top hung

Stacking

Centre stacking single leaf

Single direction panels.

Centre stacking double leaf

Bi-parting.

Side stacking single leaf

Single direction panels.

Side stacking double leaf

Bi-parting.

Finish -
Frame

Satin anodized

White powder coated

RAL

Insert colour.

Panel

Laminate

Insert type.

Prefinished veneer

Insert species and cut.

Standard Deko Melamine White

Standard Deko Melamine Grey

Standard product features

Partition thickness:

80 mm.

Panel width:

400–1000 mm.

Abutments:

- Base:

  • Top hung: No base detail.
  • Floor track: 93 mm aluminium floor guide rail.

- Head:

  • Top hung: Head channel fixed to structure.
  • Floor track: Adjustable head channel fixed to structure or ceiling.

- Wall start:

Adjustable start profile.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
