Incite Divert Concealed Hand Shower with Ceiling Fixed Heads with Remote HP/Combi or Remote GP
Verified by manufacturer 9 months ago

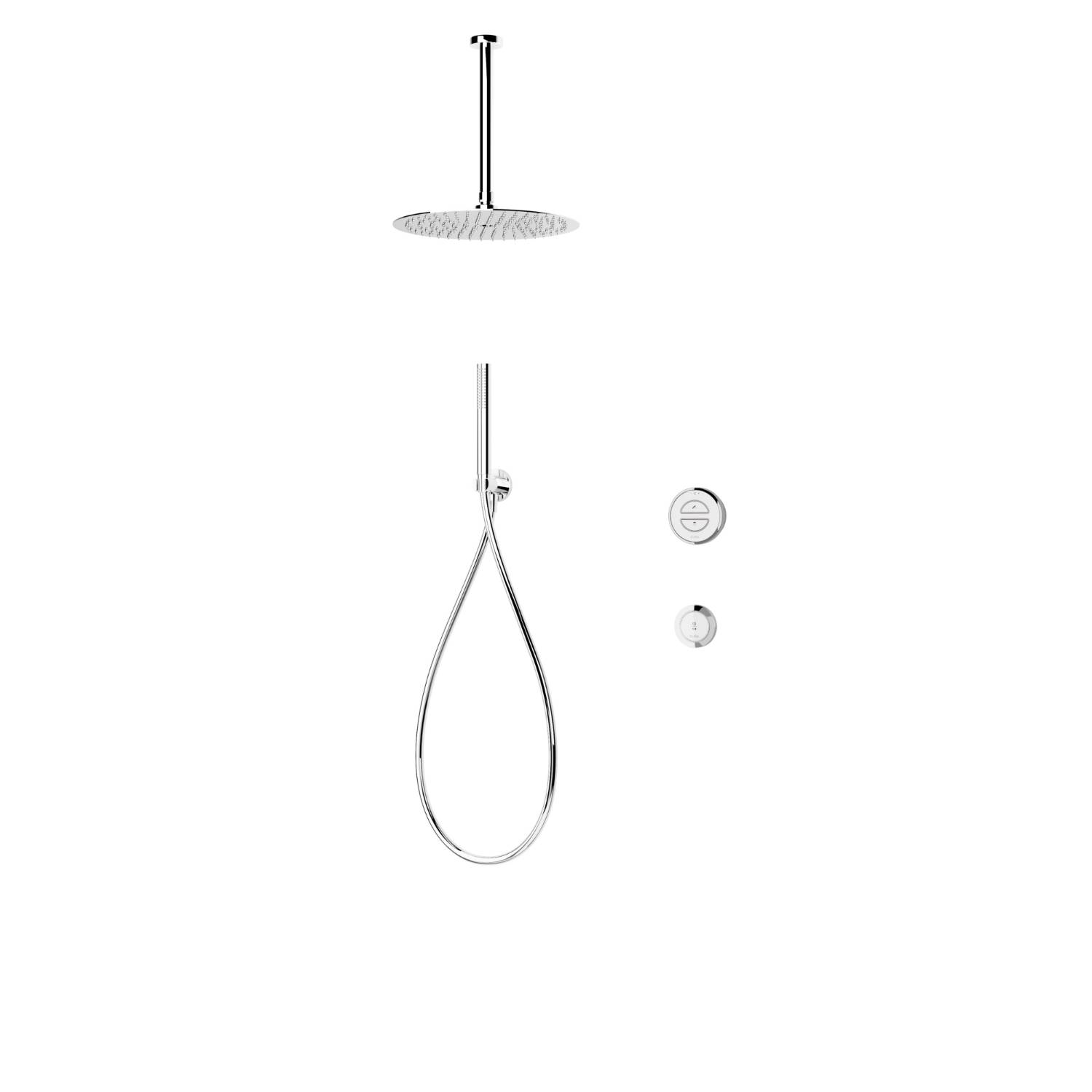

INC.A1.BV.HSFC.21 - Divert concealed hand shower with ceiling fixed heads with remote HP/Combi
INC.A1.BV.HSFC.21 - Divert concealed hand shower with ceiling fixed heads with remote HP/Combi
Divert concealed hand shower with ceiling fixed heads with remote HP/Combi or remote GP.
Application
- INC.A1.BV.HSFC.21: Suitable for high pressure water systems.
- INC.A2.BV.HSFC.21: Suitable for low pressure water systems/gravity pumped.
Description
With proven digital technology, this is a premium dual outlet system that guarantees accuracy, safety and personal convenience every time.
Wi-Fi enabled, its smart benefits include voice activation and one touch mobile app control for either the handset or ceiling fixed drencher head. A water saving eco-mode can be set for the shower at installation and the app dashboard shows details of water usage to help monitor family showering time and costs. For both shower outlets, the robust, high quality shower kit, further enhances a luxurious showering experience.
Features and benefits:
- Wifi, mobile app, Google Home and Amazon Alexa enable the user to control their shower remotely.
- Multiple showers can be controlled from one app.
- Safe and satisfactory thermostatically controlled showering with adjustable maximum temperature and push button one start control.
- LED display showing that the chosen temperature has been reached.
- Switch between the hand shower and 300 mm fixed ceiling drencher at the touch of a button.
- Includes wired remote control.
General information
Color | Silver Guidance for specification option: Chrome. |
Finish | Gloss |
Material | Metal Plastic |
Shape | Other |
Length | 1500 mm Guidance for specification option: Hose length. |
Width | 300 mm Guidance for specification option: Fixed shower head. |
Warranty description | Five year |
Uniclass | |
CAWS | N13/41 Shower heads N13/375 Shower units N13/40 Shower units |
Specification data - Shower fittings package
Form | Concealed hand shower with ceiling fixed heads and flexible hose. |
Materials | |
Body | Metal and plastic. |
Finish and colour | Gloss chrome. |
Flow rate (maximum) | 8—16 L/min. |
Water supply temperature (maximum) | 65°C.Guidance for specification option: Minimum: 5°C. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Remote control | Remote HP/Combi - 70 x 25 x 70 mm. |
HoseLength | 1500 mm. |
Hose | Plastic. |
Shower head | 300 mm. Manufacturer guidanceFixed shower head. |
Arm length | 500 mm. Manufacturer guidanceFixed head arm length (mm). |
Controller | 93 x 42 x 93 mm. Manufacturer guidanceController / valve unit dimensions. Width x depth x height. |
Weight | 6.044 kg. |
Bar | 1—7 bar. Manufacturer guidanceMin-max. |
InletConnectionSize | 15 mm push fit. |
OutletConnectionSize | 15 mm push fit. |
Thermostatic Valve | Digital valve assembly. |
Divert | Yes. |
Electrical requirements | 240 V. |
Power Levels | Once. |
Cable entry | Rear. |
Water supply | Rear. |
Spray Patterns | One. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | China |
Literature
Elisa Incite and Intuition Brochure 01
