Imperium-1 Vertical Bar | LPS1175 SR1 (A1) Security Vertical Bar Fencing
Verified by manufacturer 5 months ago
LPCB Certification
Certificate type
LPS 1175 Issue 8 and Secured By Design rated solid steel vertical bar fencing system.
Application
Suitable for sports, high security, government, commercial, railway, school grounds and industrial applications.
Description

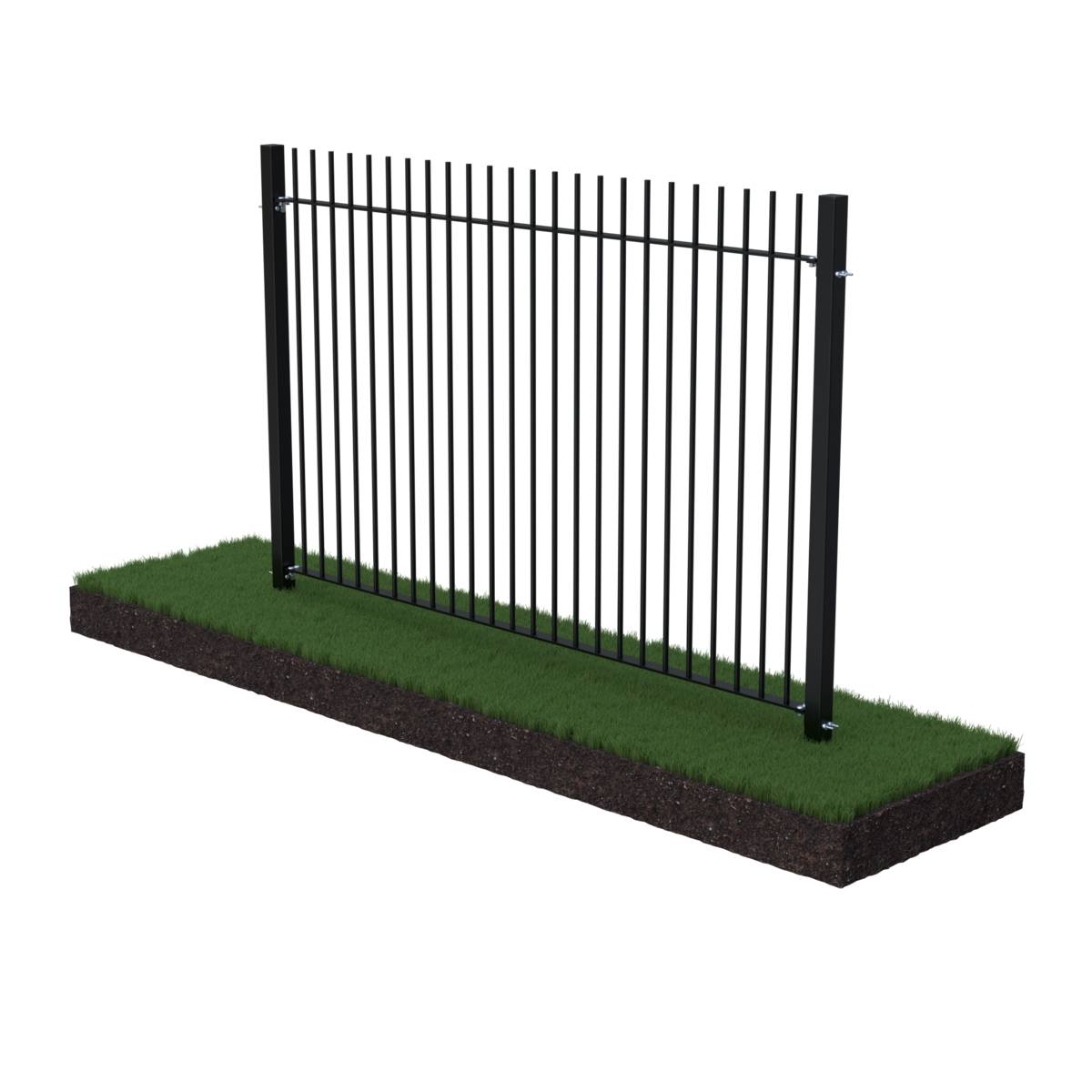

Imperium-1 Vertical Bar is an LPS 1175 A1 (SR1) rated solid bar metal railing security system. The system includes solid steel vertical bars and horizontal rails making it a heavy-duty security fencing system.
Features and benefits:
- BRE-tested and certified to achieve LPS 1175 SR1 (A1).
- Hight security.
- Palisade fencing configuration.
- Good through visibility (CCTV suitable).
- Durable and easy to install.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle Other |
Width | Bespoke 2805 mm |
Height | Bespoke 1800 mm 3300 mm 2000 mm 2100 mm |
Warranty description | Ten year Guidance for specification option: As standard, subject to conditions. |
Uniclass | |
CAWS | Q40/430 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/30 Proprietary fencing |
Specification data - Steel vertical bar fencing systems
Classification data | |
Standard | To LPS 1175, A1 (SR1). |
Posts | Carbon steel posts, 50 x 50 mm. |
Post foundations | 350 x 350 x 600 mm, C30 Grade concrete. 350 x 350 x 600 mm, C60 Grade concrete. |
Rails | 60 x 10 mm rail. |
Panels | 20 mm vertical bar and rail panels. |
Finish | Hot dip galvanized, powder coated RAL 6005 (Green). Guidance for specification option: Suitable for compliance with BS 1722-16. Hot dip galvanized, powder coated RAL 9005 (Black). Guidance for specification option: Suitable for compliance with BS 1722-16. Hot dip galvanized, powder coated bespoke RAL colour. Guidance for specification option: Bespoke for any RAL colour, consulat manufacturer and insert requirements. |
Height | 1800 mm. 2000 mm. 2100 mm. 2400 mm. 3000 mm. 3300 mm. |
Length | 2805 mm. |

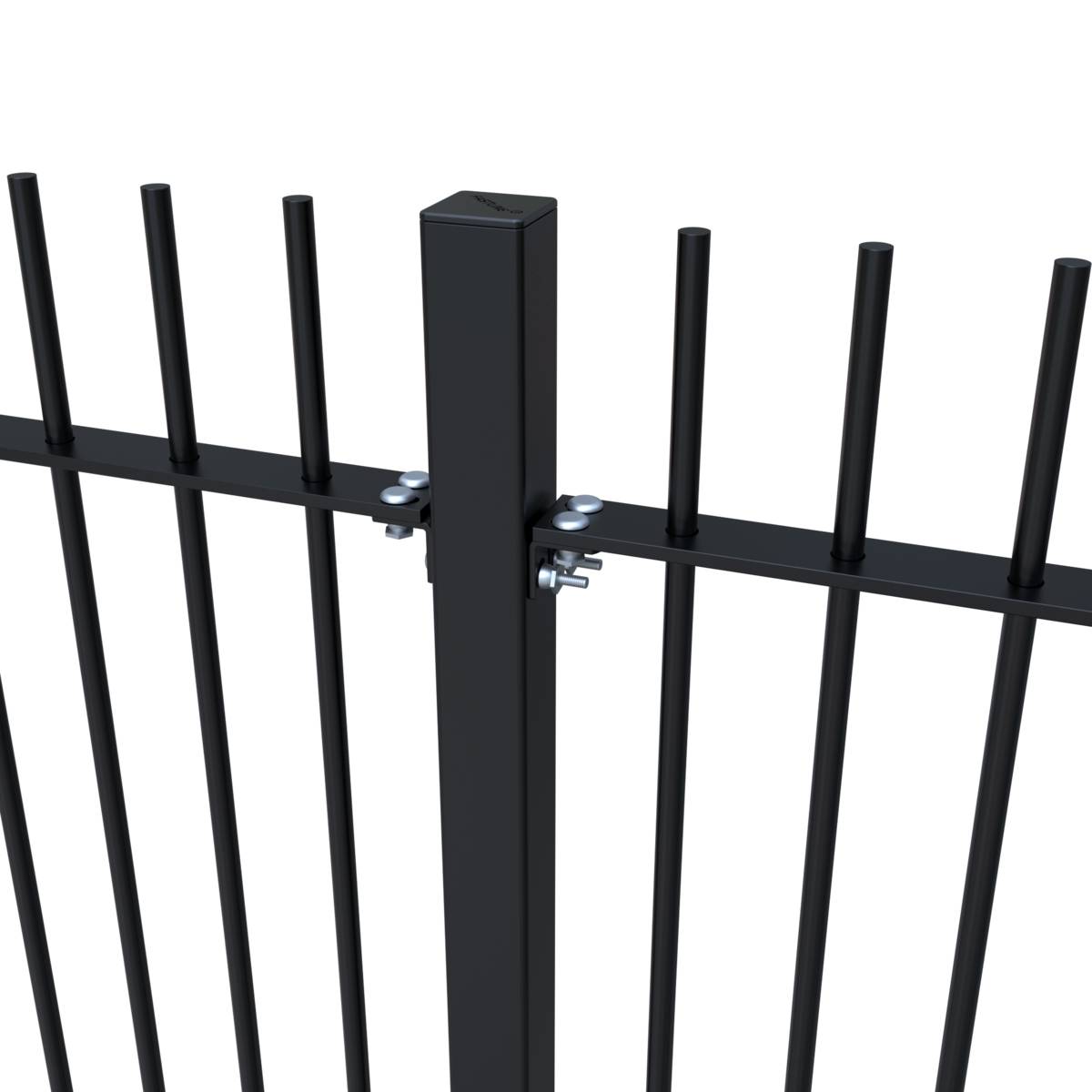

Fixings | M10 x 100 mm CUPSQ bolts x 30. Guidance for specification option: For fence heights: 1.8–2.4 m. M10 x 120 mm CUPSQ bolts x 30. Guidance for specification option: For fence heights: 2.4–3.3 m. Sheer nuts. Manufacturer guidanceAll fixings used 8.8 Grade high tensile steel. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
Product certifications
LPCB Certification
Certificate of Product Approval - Imperium-1 Vertical Bar
