Description

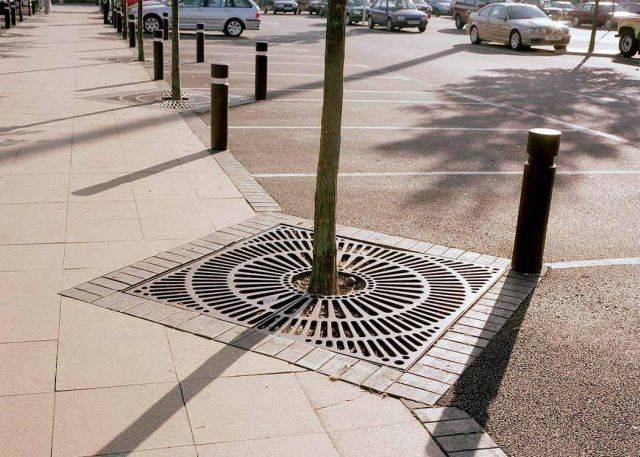

A range of square cast iron tree grilles, with radial rectangular slots and circular aperture, available in three sizes.

Features:

  • Manufactured from ductile cast iron, in two pieces and complies with BS EN 1563.
  • Supplied in black gloss finish as standard.
  • Tree grilles can be manufactured to specific designs - contact Marshalls Street Furniture Sales Office for further information.
  • Designed for use with Imperial tree guards.
  • Part of the Imperial range of street furniture.

General information
Features

Manufactured from ductile cast iron, in two pieces and complies with BS EN 1563

Supplied in black gloss finish as standard

Tree grilles can be manufactured to specific designs - contact Marshalls Street Furniture Sales Office for further information

Designed for use with Imperial tree guards

Part of the Imperial range of street furniture

Uniclass 2015
Pr_45_63_64_87 Tree grillesPrimary
Specification data - Tree grilles
Product Reference

6110, Imperial Cast Iron Tree Grille

6112, Imperial Cast Iron Tree Grille

6114, Imperial Cast Iron Tree Grille

Additional requirements

None

Irrigation ports

Lighting ports

Removable inner support sections

Tree grille support frame

Product Options

Product reference:

- 6110:

  • Dimensions: 1000 x 1000 mm, with 400 mm diameter aperture.
  • Weight: 106 kg.

- 6112:

  • Dimensions: 1200 x 1200 mm, with 400 mm diameter aperture.
  • Weight: 170 kg.

- 6114:

  • Dimensions: 1400 x 1400 mm, with 600 mm diameter aperture.
  • Weight: 232 kg.

Additional requirements:

  • The grilles can be supplied with removable inner support sections, designed for use when trees are planted at a later stage.
  • Irrigation or lighting ports can be supplied in the grilles.
  • Medium duty tree grille support frames are available, providing support to all edges of the grille.
