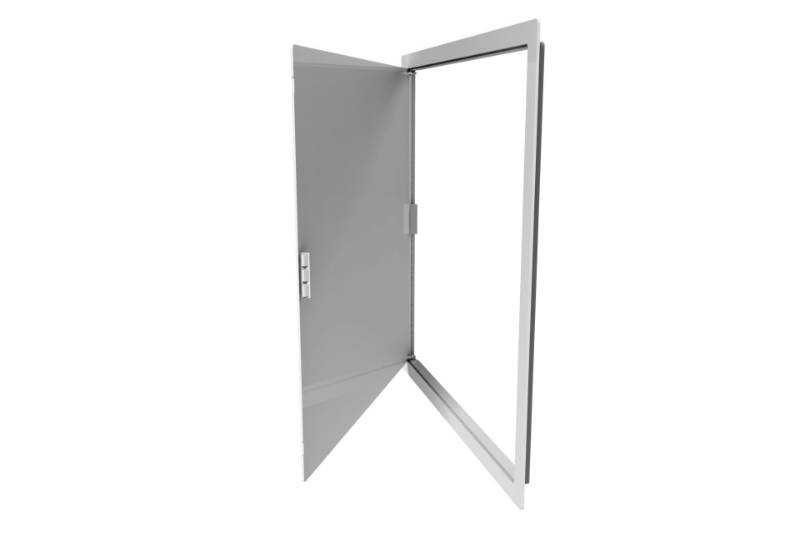

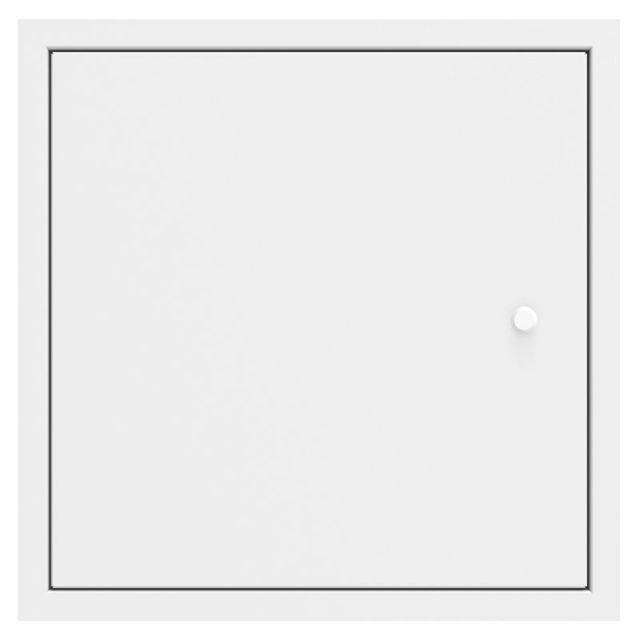

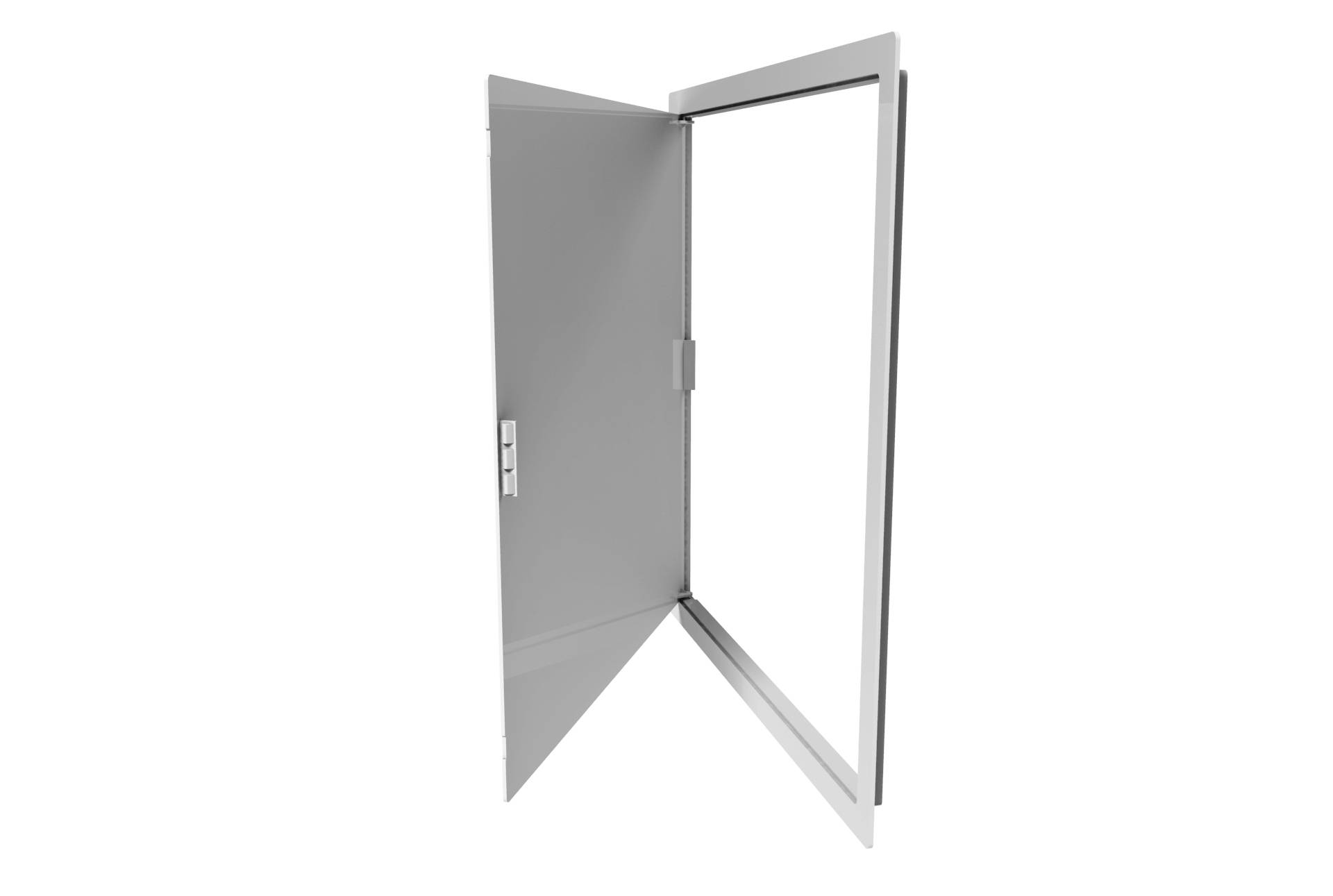

IMAGE 2000 - Access Panels

Application

Suitable for new build or retrofitted after remedial work where lockable access is required.

Description

The 2000 metal series access panel provides a simple, economic solution to ceilings and walls.


Features and benefits:

  • Door and frame finished with a lightly textured surface suitable for painting over if required.
  • Unique three way installation option available, which includes:
  • Using the holes in the frame, the panel can be secured to the structure by using standard fasteners.
  • Bending the metal tags on the back of the panel frame to secure onto the back of the structure.
  • Applying proprietary contact adhesive to the 25 mm picture frame (for wall installation only).
  • The door can easily be opened with a standard flat-head screwdriver.
  • Customization of the access panel may be possible including alterative sizes, lock and paint colours, consult manufacturer for details.

General information

Color

White

Finish

Powder coated

Material

Metal

Shape

Square

Rectangular

Size

100 x 150 mm

150 x 225 mm

200 x 200 mm

350 x 350 mm

WarrantyDescription

Five years

Uniclass 2015

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/145 Wall lining system (metal studs)

K10/15 Lining on timber

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/25 lining on timber . . . . . .

K10/30 Metal stud

K10/430 Access panels

K10/50 Suspended ceiling system on metal framing

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

K40/135 Board-suspended ceiling system

K40/280 Access units

L20/630 Hatches

Specification data - Access panels Enhanced data

Position

Ceiling mounted.

Wall mounted.

Size

100 x 150 mm.

150 x 225 mm.

200 x 200 mm.

350 x 350 mm.

Frame

Picture frame.

1.2 mm thick electro-galvanized carbon steel incorporating a 25 mm visible picture frame with radiused corners. Factory welded to specified size and finished white powder coat gloss paint.

Latch or lock type

Budget lock.

The door is held closed with a concealed budget lock (BL) which opens towards the user. The pivot hinge system allows the door to be removed during installation. A white round removable cap on the door face conceals the keyhole.

Operation

Concealed hinges outward opening.

Product Reference

2000 Series Metal Access Panel

FrameDepth

21 mm.

21 mm with the door in the closed position. In the open position adds a further 8 mm along the hinge side.
