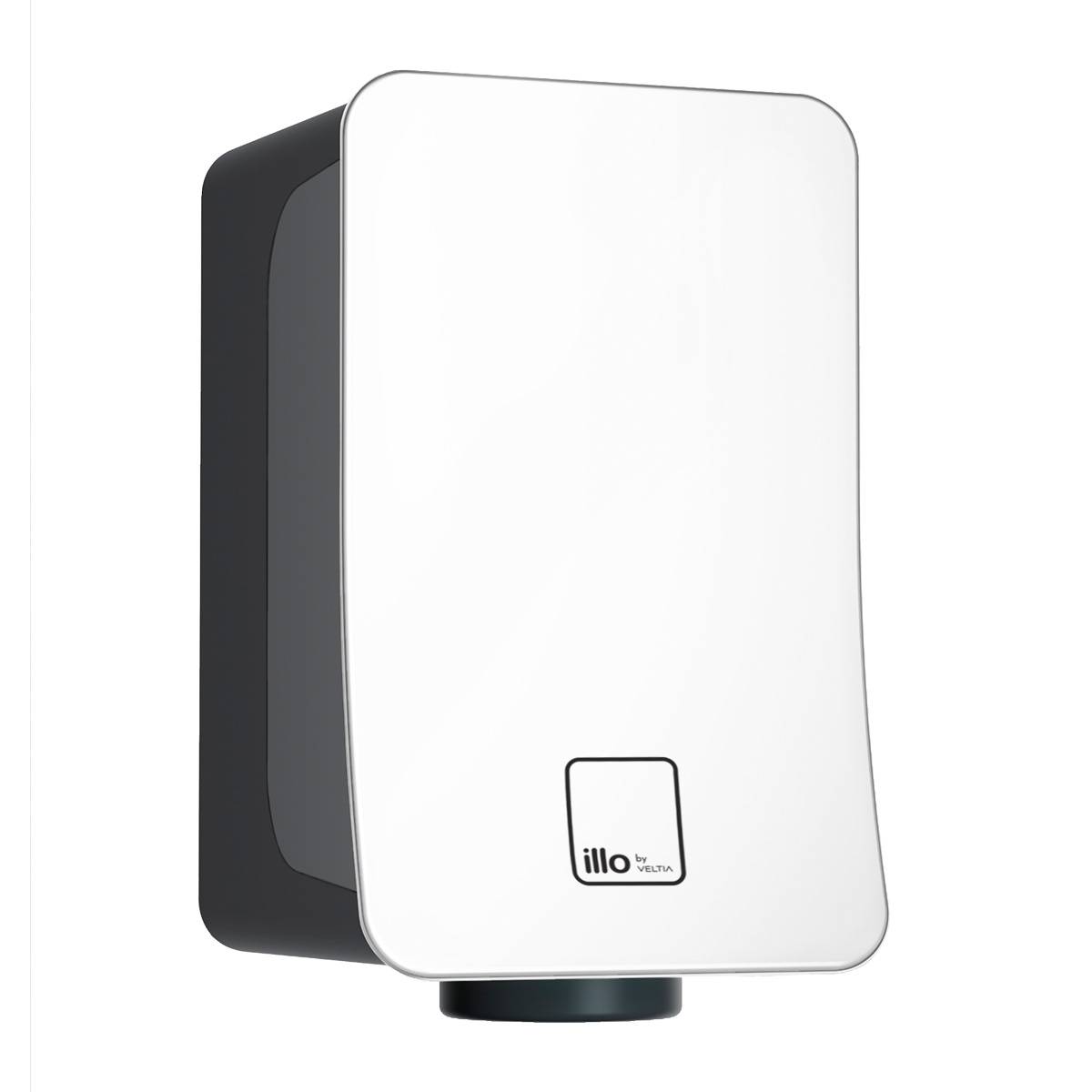

illo by Veltia Hand Dryer

Verified by manufacturer 2 days ago

Heat Outdoors & Handy Dryers

A range of modern eco-friendly hand dryers available in a wide range and bespoke colours.

Jump to:
BOS
+ (0) 1279 466 500 Website

Application

Washrooms in public and private spaces, including offices, sports facilities, schools, restaurants and more

Description

Range of customizable hand dryers.


Features and benefits:

  • Quiet operation: 66 dB.
  • Two nozzle options: multi-jet nozzle or blade-style slotted nozzle.
  • Drying times of 8-12 seconds achievable, depending on the selected air outlet and power setting.
  • Efficient: 0.6 kW per hour. Heat from the dryer's own motor is used to warm the air, so no air heater is required.
  • Include a HEPA filter to clean the air of 99.9% of the bacteria, mould spores and detritus.
  • Microban® antimicrobial surface system.
  • Fragrance and smell deactivating gels available.
  • Customizable: interchangeable front covers with unlimited colour options.

General information

Color

Silver

Guidance for specification option:

Metallic silver.

White

Black

Red

Blue

Show more

Finish

Powder-coated

Brushed

Shape

Rectangle

Length

165 mm

Width

177 mm

Height

278 mm

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Specification data - Hand dryers

Form

High-velocity air through HEPA filter.

Guidance for specification option:

  • Warm air speed output: 126 m/s.
  • Drying time: 6–12 seconds, depending on settings.
  • Air output temperature: Room temperature.

Operation

Automatic.

Guidance for specification option:

Infrared, self-adjusting.

Timer

Fixed.

Guidance for specification option:

20 seconds auto-shut off.

Electrical supply

-

Power rating

600–833 W.

Guidance for specification option:

  • Motor type: 833 W.
  • Heater element: Air heated via recycled warmth from the motor.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50/ 60 Hz.

Body

-

Material

Manufacturer's standard.

Guidance for specification option:

Weight: 3 kg.

Finish

Manufacturer's standard.

Colour

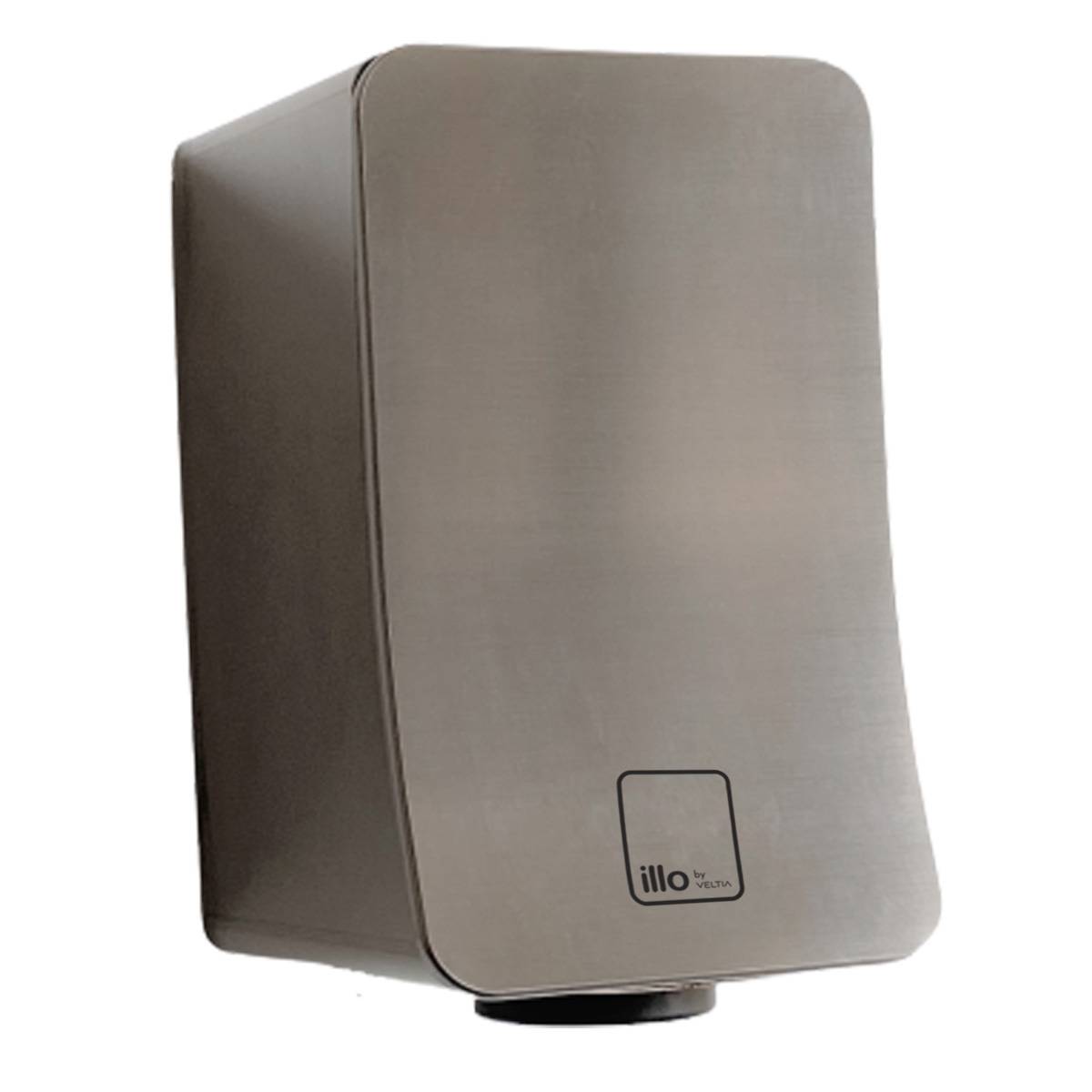

Stainless steel.

Guidance for specification option:

All-stainless steel shell and cover.

White.

Red F1.

Red Cherry.

Red Bordeaux.

Pink.

Champagne.

Aluminium Matt.

Black.

Yellow.

Silver.

Pumpkin.

Atlantic Blue.

Sky Blue.

Deep Blue.

Turquoise.

Other.

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All options except stainless steel described the front cover, with a black shell.

Ingress protection (minimum)

IP22.

Guidance for specification option:

Isolation: Class 1.

Dimensions

278 x 177 x 165 mm.

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

66–71 dB(A).

Guidance for specification option:

Adjustable; consult manufacturer for details.

Features

Hands only.
