IKO Britorch SBS Torch-On Cap Sheet

IKO Britorch SBS Torch-On Cap Sheet

IKO PLC Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Non-woven, polyester-based torch applied cap sheet, with a styrene-butadiene-styrene (SBS) rubber modified bitumen coating.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk

Application

Should be used as the cap sheet within a two- or three-layer, built-up or inverted roofing application.

Description

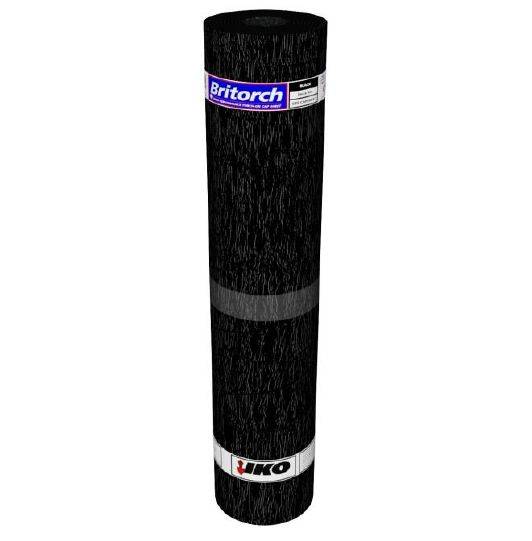

Non-woven, polyester-based torch applied cap sheet, with a styrene-butadiene-styrene (SBS) rubber modified bitumen coating. The upper surface is finished with mineral granules; the lower surface has a torching film which is rapidly dispersed, making application fast and secure.

Features and benefits:

  • Torch applied – rapid application and sealing of the laps.
  • Granular mineral finished cap sheet: ultraviolet (UV) stable.
  • SBS modification results in a greater flexibility under ambient temperature fluctuations.
  • Strong, robust base material.
  • 20-year material guarantee.
  • CE Marked.

Applications:

Should be used as the cap sheet within a two- or three-layer, built-up or inverted roofing application.

General information

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

Specification data - Reinforced bitumen roofing sheets

Product Reference

IKO Britorch SBS Torch-On Cap Sheet

Surface

Black, 73011000

Green, 73012000

Standard product features

Size (per roll):

  • Length: 8 m.
  • Width: 1 m.

Weight:

5.0 kg/m² (40 kg per roll).

Technical characteristics:

  • Composition: SBS bitumen.
  • Carrier: Polyester.
  • External fire performance (to EN 13501-5): F-roof(t4).
  • Reaction to fire (to EN 13501-1): F.
  • Water tightness (to EN 1928): Pass.
  • Maximum tensile force (to EN 12311-1): Longitudinal: ≥500 N/50 mm; Transverse: ≥400 N/50 mm.
  • Elongation (to EN 12311-1): Longitudinal: 20%; transverse: 30%.
  • Resistance to static loading (to EN 12730 (A)): 10 kg.
  • Flexibility at low temperature (to EN 1109): Upper/ lower: 0°C.

Third party certifications

  • CE Marked: Certificate: 0086-CPD-537586
