Ideal Standard Tesi 170 cm x 70 cm Double-Ended Bath
Verified by manufacturer 3 months ago

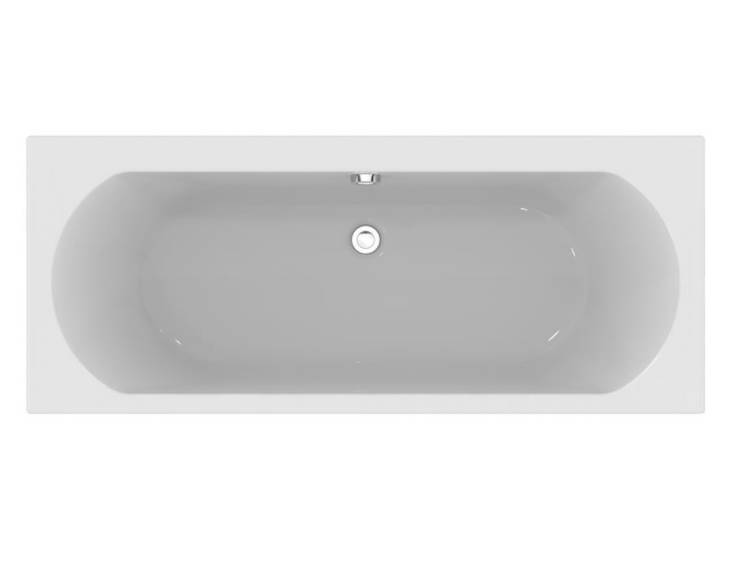

A double ended bath tub 170 x 70 cm with no tapholes.
Application
Suitable for hotel and domestic applications.
Description
Tesi's arched back rest draws inspiration from the gentle profile of the washbasin. Offered in the conventional size of 170 x 70 cm enabling double-ended bathing in even the most modest-sized bathrooms.
Features and benefits:
- Domestic and hotel use.
- Part of an extensive range.
- Supplied no taphole for maximum flexibility.
- Space saving design.
- Water-saving variant available.
- Also available as Idealform Plus+.
General information
Color | White |
Material | Acrylic Guidance for specification option: Idealform. |
Shape | Rectangle |
Length | 1695 mm |
Width | 695 mm |
Height | 540 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangle. |
Standards | To EN 14516. |
Materials | Idealform. |
Colour | White (01). |
Size | 1695 x 695 x 540 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 163.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - A6590.Guidance for specification option: Tesi 2 hole dual control bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath End Panel - E3169.Guidance for specification option: Unilux 70 cm end panel. Bath Front Panel - E3194.Guidance for specification option: Unilux 170 cm front panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. |
Weight | 20.50 kg. |
Sustainability data
Material | Acrylic Guidance for specification option: Idealform. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Ideal Standard Essentials Brochure (Sept 2024)
Bathroom Collections brochure
