Ideal Standard Tesi 160 cm x 70 cm Bath
Verified by manufacturer 2 months ago

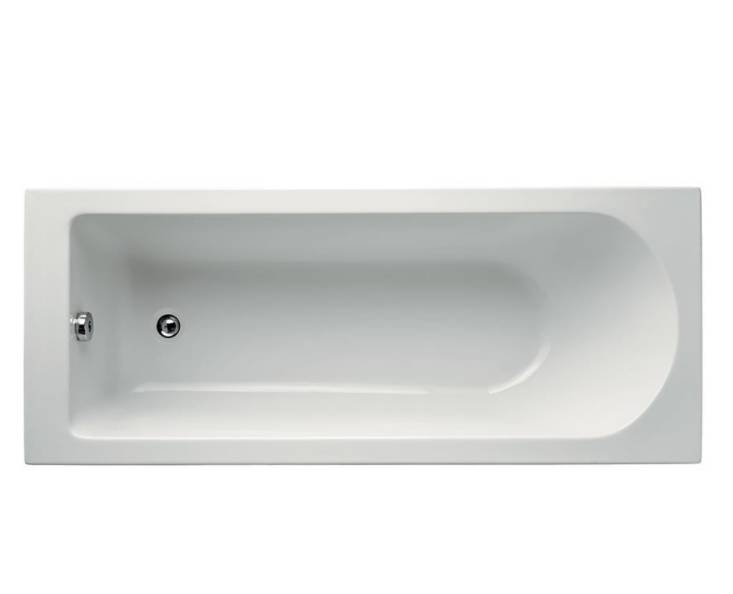

A rectangular bath tub 160 x 70 cm with no tapholes.
Application
Suitable for domestic and hotel applications.
Description
Tesi's arched back rest draws inspiration from the gentle profile of the washbasin.
Features and benefits:
- Domestic and hotel use.
- Also available as a 170 cm bath (specified separately).
- Low capacity water saving option.
- Also available in Idealform Plus+.
General information
Color | White |
Material | Plastic Guidance for specification option: Idealform. |
Shape | Rectangle |
Length | 1595 mm |
Width | 695 mm |
Height | 540 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangle. |
Standards | To BS EN 14516. |
Materials | Idealform. |
Colour | White. |
Size | 1595 x 695 x 540 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 163.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - A6590.Guidance for specification option: Tesi 2 hole dual control bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath End Panel - E3169.Guidance for specification option: Unilux 70cm end panel. Bath Front Panel - E3183.Guidance for specification option: Unilux 160cm front panel. |
Weight | 19.00 kg. |
Sustainability data
Material | Plastic Guidance for specification option: Idealform. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
