Ideal Standard Tempo Cube Square Idealform 170 cm x 85 cm Shower Bath
Verified by manufacturer 2 months ago

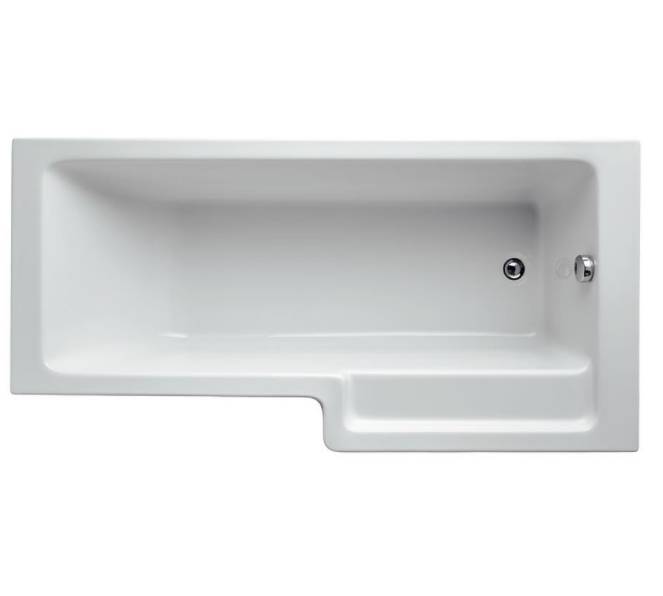

170 x 85 cm Idealform right hand shower bath, no handgrips, no tapholes.
Application
Suitable for domestic and hotel applications.
Description
A spacious shower bath with integrated shelf feature and matching curved shower screen. The bath’s gently sloped ergonomic interior design matched offers a generous bath area.
Features and benefits:
- Domestic and hotel use.
- Part of an extensive range.
- Left and right hand versions.
- Integrated shelf.
- Water efficient design.
- Also available as Idealform Plus+.
General information
Color | White |
Finish | Acrylic |
Material | Acrylic Guidance for specification option: Idealform. |
Shape | Rectangle |
Length | 1695 mm |
Width | 845 mm |
Height | 540 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Standards | To BS EN 14516. |
Materials | Idealform. |
Colour | White. |
Size | 1695 x 895 x 540 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 190.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath shower mixer. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel- E2596.Guidance for specification option: Tempo Cube shower bath front panel. Bath Screen - E2597.Guidance for specification option: Tempo Cube Square shower bath screen, clear glass and bright silver finish. Bath End Panel - E3169.Guidance for specification option: Unilux 70 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Brassware - B0731.Guidance for specification option: Tempo 2 hole bath shower mixer. Bath Waste - S8830.Guidance for specification option: Waste 1½" bath chain and overflow, plastic plug. |
Capacity | 185 L. |
Sustainability data
Material | Acrylic Guidance for specification option: Idealform. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Bathroom Collections brochure
Ideal Standard Essentials Brochure (Sept 2024)
