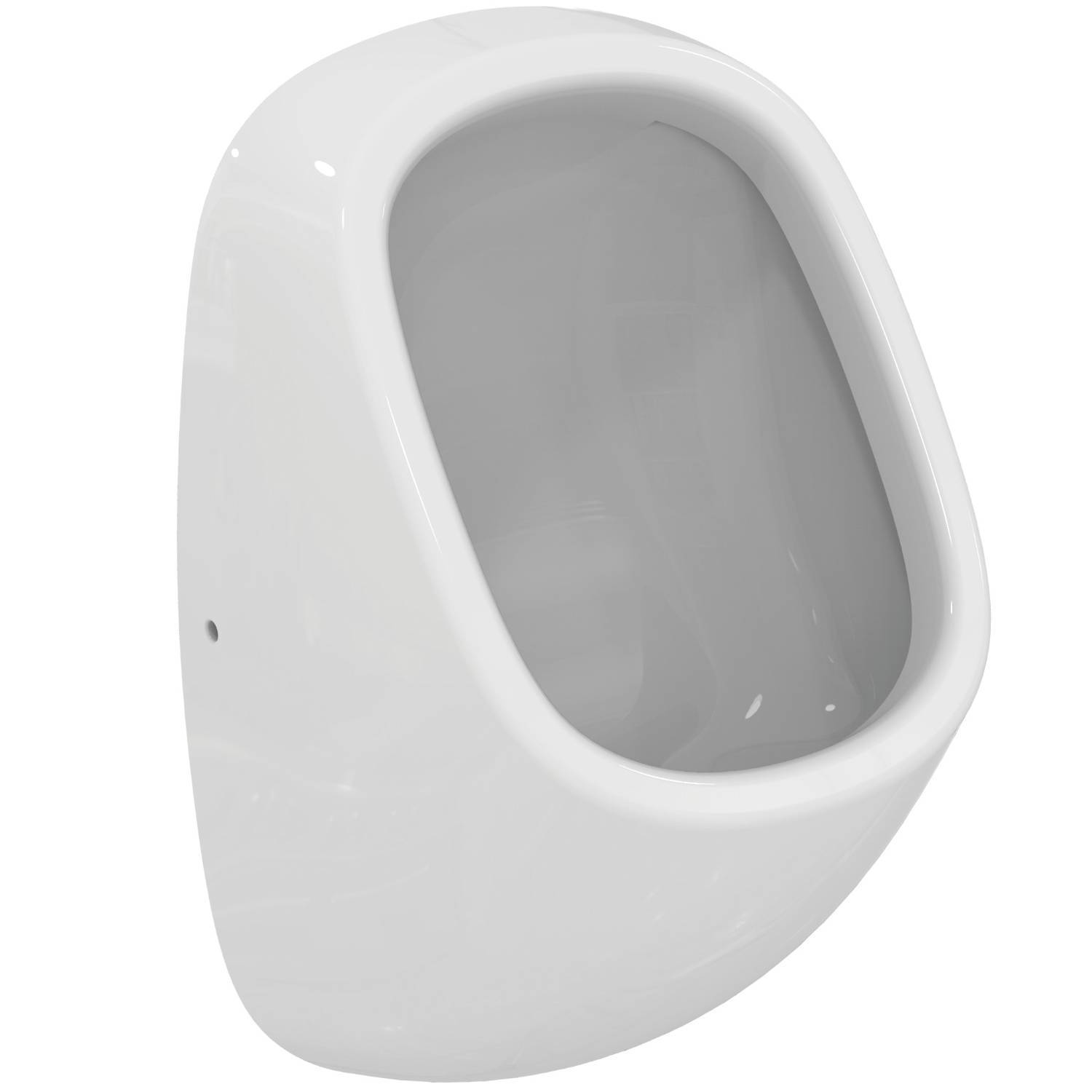

Ideal Standard Jasper Morrison Bowl Rim Flush Fully Concealed Urinal
Verified by manufacturer 2 months ago
EPD
Certificate type
Jasper Morrison bowl urinal rim flushing, back inlet and concealed waste.
Application
Suitable for installation in hotels, offices, and sports and leisure applications.
Description
Jasper Morrison bowl urinal 355 x 300 x 580 mm.
Features and benefits:
- Complies to EN 13407.
- DoP classification CL1-I-2C+CL 2.
- White glossy finish.
- Fully concealed.
- Easy clean design.
- Flushed from mains water.
- No auto cisterns.
- Sensor flushing.
General information
Color | White |
Finish | Gloss |
Material | Vitreous china |
Shape | Other |
Length | 300 mm |
Width | 355 mm |
Height | 580 mm |
Uniclass | |
CAWS | N13/15 Urinals and cisterns N13/316 Urinals and flushing valves |
Specification data - Wall-hung urinals
Standards | To BS EN 13407. |
Class | 1/2.Guidance for specification option: CL1-I-2C + CL 2. |
Urinal type | I. |
Flushing device | C. |
Form | Bowl. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, overflow and waste holes | |
Water supply | Back inlet. |
Overflow | None. |
Waste | Bottom outlet. |
Integral accessories | Fixing set. |
Height | 580 mm. |
Width | 355 mm. |
Length | 300 mm. |
Net weight | 16.80 kg. |
Sustainability data
Contains Red List materials | No |
Material | Vitreous china |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Ceramic Vitreous China
